Universal /manual lathes

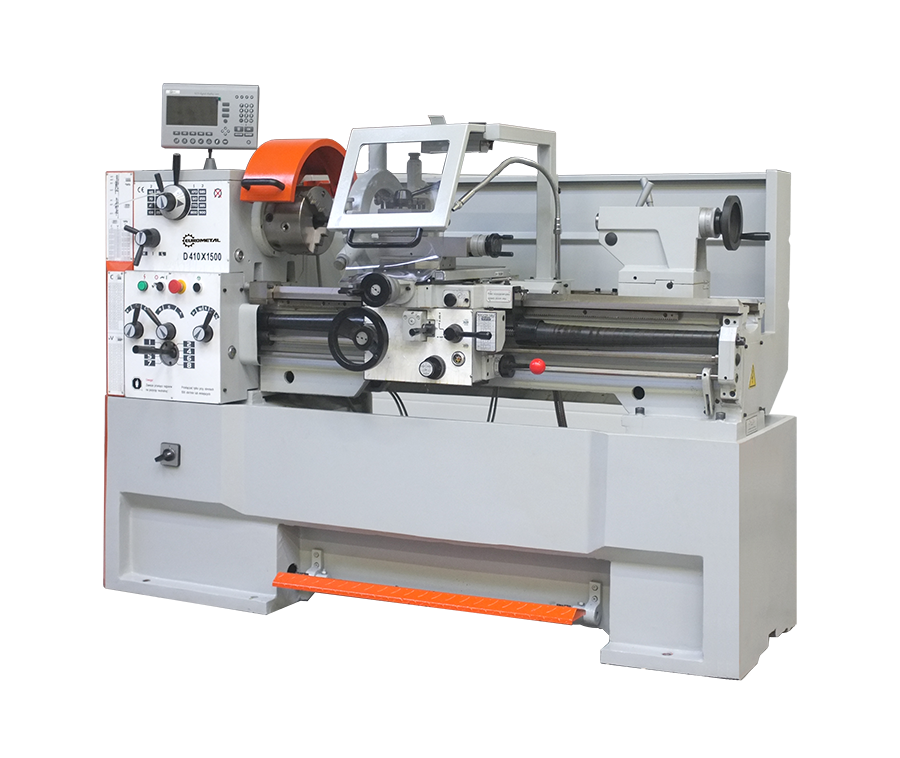

UNIVERSAL LATHE EUROMET D410X1500
45 000,00 zł net
No rating
12 months of warranty
Contact with a trader:
Michał Bartoszuk
E-mail: michal.bartoszuk@eurometal.com.pl
Telefon: 603505252
Michał Bartoszuk
E-mail: michal.bartoszuk@eurometal.com.pl
Telefon: 603505252
The EUROMET D410x1500 universal lathe is designed for small-lot production and for work in tool shops or maintenance plants. The cast iron cast of the bed base guarantees very high rigidity and stability of the machine.
Quantity
Add to cart
The EUROMET D410x1500 universal lathe is designed for small-lot production and for work in tool shops or maintenance plants. The cast iron cast of the bed base guarantees very high rigidity and stability of the machine.
- removable bridge
- the bed base is made of cast iron - one element
- hardened bed guides
- heat-treated spindle nose
- hardened change gears in the spindle gear
- the full range of threads can be machined
- feed selection lock: by a screw or by a shaft
Standard equipment:
- 200mm 3-jaw lathe chuck
- 250mm 4-jaw lathe chuck
- ruler for cones
- driving disc 350mm
- steady rest
- follow rest
- thread indicator
- digital readout for 2 axes
- reduction sleeve MT 6/4
- fixed tusk MT 4
- cooling system
- lighting
- user manual in English
- CE declaration of conformity
Optional equipment (paid additionally):
- quick-change holder
- driving disc
| Technical data | Unit | Value |
|---|---|---|
| Turning diameter over bed | [mm] | 410 |
| Turning diameter over cross slide | [mm] | 255 |
| Turning diameter in the bridge | [mm] | 580 |
| Turning length | [mm] | 1500 |
| Bed width | [mm] | 250 |
| Spindle flight | [mm] | 52 |
| Spindle tip | [-] | D1-6 |
| Spindle seat | [-] | Morse 6 |
| Spindle speed range | [rpm/min] | 45 - 1800 |
| Maximum tool dimensions | [mm] | 20x20 |
| Longitudinal feed range | [mm/rpm] | 0,05 - 1,7 |
| Przesuw poprzeczny | [mm] | 210 |
| Cross travel range | [mm/rpm] | 0,025 - 0,85 |
| Metric thread | [mm] | 0,2 - 14 |
| Inch thread | [-] | 2-72 T.P.I. |
| Modular thread | [-] | 0,3-3,5 M.P. |
| Thread D.P. | [-] | 8-44 D.P. |
| Tailstock sleeve diameter | [mm] | 50 |
| Extend the tailstock quill | [mm] | 120 |
| Tailstock sleeve tip | [-] | No. 4 Morse |
| Engine power | [kW] | 2,8/3,3 |
| Coolant pump power | [kW] | 0,1 |
| Top carriage travel | [mm] | 102 |
| Dimensions | [mm] | 2440x850x1320 |
| Weight | [kg] | 1340 |
