UNIVERSAL LATHE EUROMET D510X1500

56 900,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The EUROMET D510X1500 universal lathe is designed for small and large series production and for work in tool shops. The cast iron base plate guarantees very good machine rigidity. Increased parameters allow machining of larger details.

Quantity
Add to cart

The EUROMET D510X1500 universal lathe is designed for small and large series production and for work in tool shops. The cast iron base plate guarantees very good machine rigidity. Increased parameters allow machining of larger details.

  • removable bridge
  • the bed base is made of cast iron - one element
  • hardened bed guides
  • heat-treated spindle nose
  • hardened change gears in the spindle gear
  • the full range of threads can be machined
  • feed selection lock: by a screw or by a shaft

Standard equipment
  • CE declaration of conformity
  • 3-jaw lathe chuck 315mm
  • 4-jaw 400mm lathe chuck
  • driving disc 450mm
  • steady rest
  • follow rest
  • thread indicator
  • digital readout for 2 axes
  • reduction sleeve MT 7/5
  • fixed tusk MT 5
  • cooling system
  • lighting
  • user manual in English
Optional equipment (paid additionally):
  • quick-change holder
  • ruler for cones
  • digital readout for 3 axes

Technical data Unit Value
Turning diameter over bed [mm] 510
Turning diameter over cross slide [mm] 300
Turning diameter in the bridge [mm] 738
Turning length [mm] 1500
Bed width [mm] 350
Spindle flight [mm] 80
Spindle tip [-] D1-8
Spindle seat [-] Morse 7
Spindle speed range [rpm/min] 25 - 1600
Maximum tool dimensions [mm] 25x25
Longitudinal feed range [mm/rpm] 0,059 - 1,646
Przesuw poprzeczny [mm] 326
Cross travel range [mm/rpm] 0,02 - 0,573
Metric thread [mm] 0,2 - 14
Inch thread [-] 2-112 T.P.I.
Modular thread [-] 0,1-7 M.P.
Thread D.P. [-] 4-112 D.P.
Tailstock sleeve diameter [mm] 75
Extend the tailstock quill [mm] 180
Tailstock sleeve tip [-] No.5 Morse
Engine power [kW] 7,5
Coolant pump power [kW] 0,1
Top carriage travel [mm] 130
Dimensions [mm] 2900x1120x1430
Weight [kg] 2335

Recommended

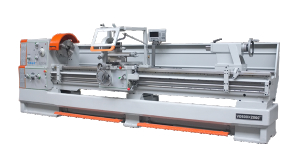

Universal /manual lathes
Priced individually
No rating

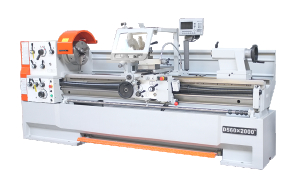

Universal /manual lathes
