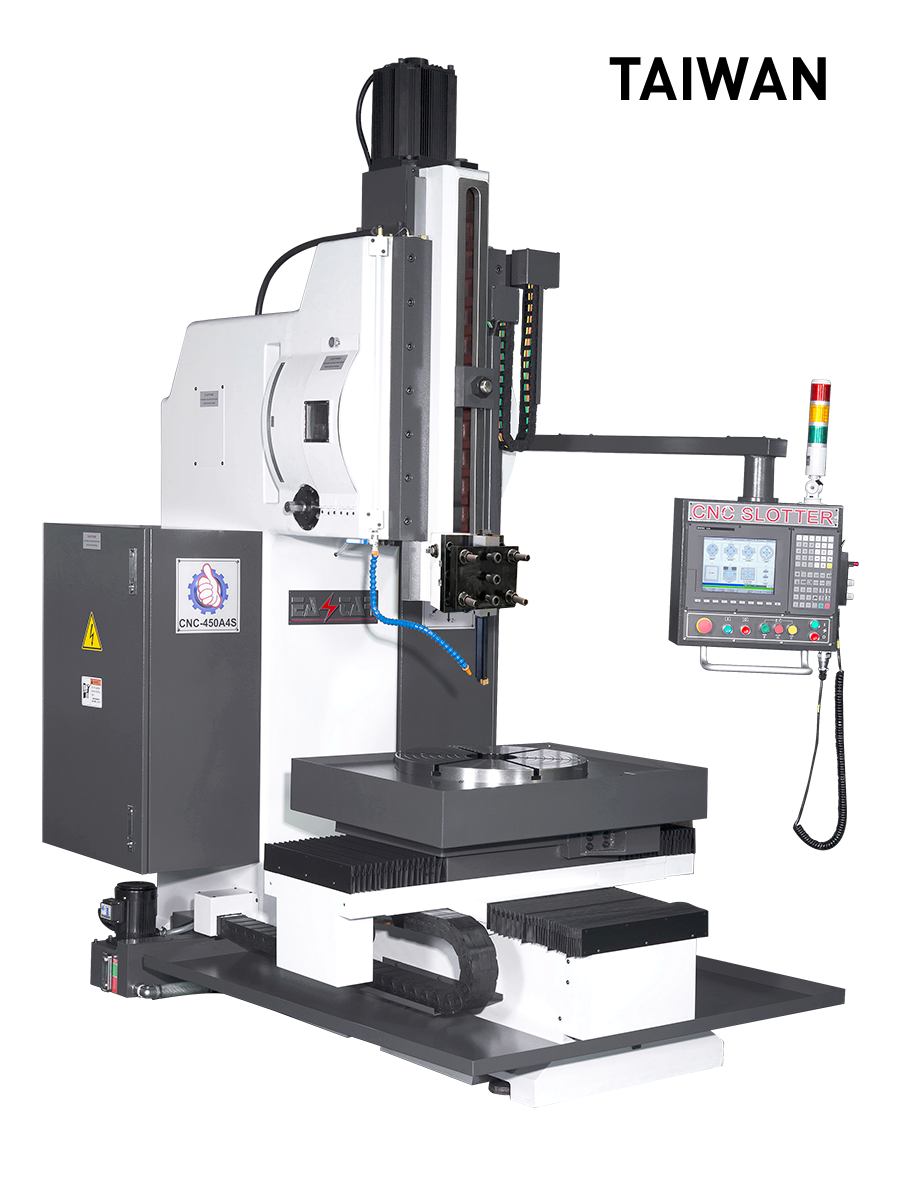

EUROMET DKS-450 CNC slotting machine

Priced individually
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Edyta Skrzypek
E-mail: edyta.skrzypek@eurometal.com.pl
Telefon: 609504408

The EUROMET DKS-450 CNC slotting machine is a Taiwanese machine. The machine body is made of high-quality cast iron, all guides are made of hardened steel. The AC servo motor and the ball screw driving the feed ensure the highest accuracy and long life of the mechanisms

The main features of the device:

  • Taiwanese production machine
  • The machine body is made of high-quality cast iron, all guides are made of hardened steel
  • The central lubrication system ensures a continuous supply of lubricant to the key operating points of the machine tool
  • The chiselling head tilts ± 30 °
  • The AC servo motor and the ball screw driving the feed ensure the highest accuracy and long life of the mechanisms

Standard equipment:
  • Ball screws class C3 in axes X, Y, Z
  • Y-axis sliding guide guards
  • Covers securing ball screws in X and Z axis
  • Rotary table
  • Cooling system
  • Centralized automatic lubrication system
  • Electric box heat exchanger
  • Portable MPG handwheel
  • Workspace lighting
  • Warning lighting
  • Basic set of maintenance tools
  • CE declaration of conformity
  • Manual in English
Optional equipment (additionally payable):
  • 25kVA transformer (except 220V)
  • 3-jaw chuck
  • Magnetic chip conveyor
  • Slotting bar
  • Set for clamping the workpiece on the table
CNC control unit:
  • SYNETEC (WIN-CE) CNC control system, high compatibility and good stability
  • The controller can be combined with an automatic robot (option)
  • The controller has a network connection and a USB input
  • Diagnostic functions, modified electrical system, easy to maintain

Technical data Unit Value
Slotting length (ram stroke) [mm] 10 - 485
Vertical positioning of the beam [mm] 890
Beam inclination angle [°] 30
The distance between the base of the beam and the surface of the worktable [mm] 615
Distance between the axis of the tool and the surface of the column [mm] 745
Working table diameter [mm] 560
Longitudinal travel of the working table (X) [mm] 500
Transverse travel of the working table (Y) [mm] 710
X axis servo motor [kW] 1,8
Y axis servo motor [kW] 1,8
C axis servo motor [kW] 2,0
Z axis servo motor [kW] 11
The distance of the work table to the floor [mm] 815
Tool holder [-] ☐60 / Ø65
Work table height [mm] 184
Device dimensions [mm] 2320x1400x3130
Weight [kg] 3150
