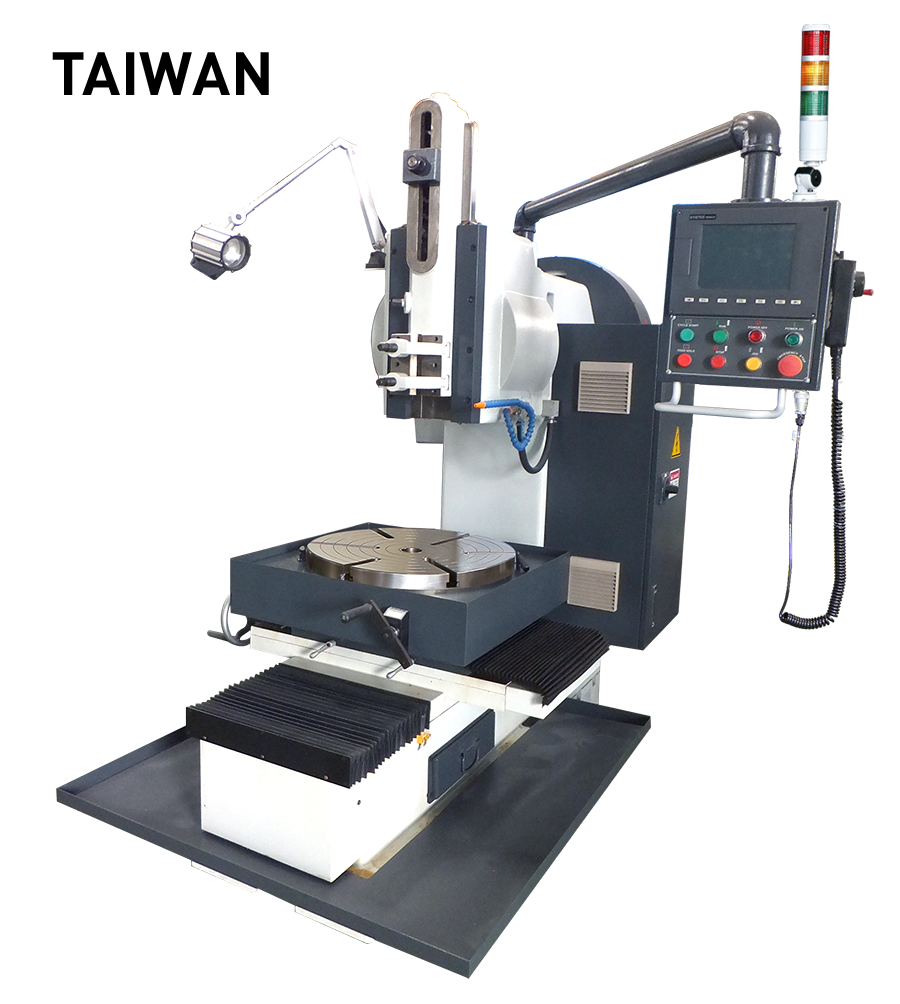

The EUROMET DKS-300/A1 CNC slotting machine is equipped with hardened and ground beam guides that ensure the appropriate precision of movement and wear resistance. The machine is equipped with a central lubrication system which ensures a continuous supply of lubricant to the key operating points of the machine tool.

Quantity

The main features of the device:

Hardened and ground beam guides ensuring adequate precision of movement and wear resistance
The chiselling head tilts +/- 30 °
The central lubrication system ensures a continuous supply of lubricant to the key operating points of the machine tool
The AC servo motor and the ball screw driving the feed ensure the highest accuracy and long life of the mechanisms
Software with automatic tool retraction for the best surface and longer tool life

Standard equipment:

Bellows rubber covers of the guides
Rotary table
C3 class ball screw in Y axis
Automatic cooling system
Automatic lubrication system
Manual jog dial (MPG)
Halogen work lights
3-jaw chuck
Worktable cover
User manual in English

Technical data	Unit	Value
Slotting length (ram stroke)	[mm]	0 - 300
Number of strokes per minute (50Hz)	[1/min]	22 - 78
Vertical positioning of the beam	[mm]	320
Beam inclination angle	[°]	30
The distance between the base of the beam and the surface of the worktable	[mm]	365
Distance between the axis of the tool and the surface of the column	[mm]	510
Working table diameter	[mm]	75
Longitudinal travel of the working table (X)	[mm]	460
Transverse travel of the working table (Y)	[mm]	432
Main engine power	[kW]	3,7
The diameter of the hole in the table	[mm]	560
Feed motor power	[mm/stroke]	1
Device dimensions	[mm]	2000x1400x2030
Weight	[kg]	1800
