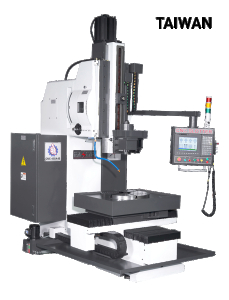

EUROMET DKS-350/A1 CNC slotting machine

Priced individually
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

The EUROMET DKS-350/A1 CNC slotting machine has hardened and ground beam guides that ensure the appropriate precision of movement and wear resistance. The machine is equipped with a central lubrication system which ensures a continuous supply of lubricant to the key operating points of the machine tool.

The main features of the device:
  • Hardened and ground beam guides ensuring adequate precision of movement and wear resistance
  • The chiselling head tilts +/- 30 °
  • The central lubrication system ensures a continuous supply of lubricant to the key operating points of the machine tool
  • The AC servo motor and the ball screw driving the feed ensure the highest accuracy and long life of the mechanisms
  • Software with automatic tool retraction for the best surface and longer tool life

Standard equipment:
  • Bellows rubber covers of the guides
  • Rotary table
  • C3 class ball screw in Y axis
  • Automatic cooling system
  • Automatic lubrication system
  • Manual jog dial (MPG)
  • Halogen work lights
  • 3-jaw chuck
  • Worktable cover
  • User manual in English

Technical data Unit Value
Slotting length (ram stroke) [mm] 0 - 350
Number of strokes per minute (50Hz) [1/min] 22 - 78
Vertical positioning of the beam [mm] 320
Beam inclination angle [°] 30
The distance between the base of the beam and the surface of the worktable [mm] 470
Distance between the axis of the tool and the surface of the column [mm] 560
Working table diameter [mm] 75
Longitudinal travel of the working table (X) [mm] 460
Transverse travel of the working table (Y) [mm] 432
Main engine power [kW] 3,7
The diameter of the hole in the table [mm] 560
Feed motor power [mm/stroke] 1
Device dimensions [mm] 2000x1250x2160
Weight [kg] 1850
