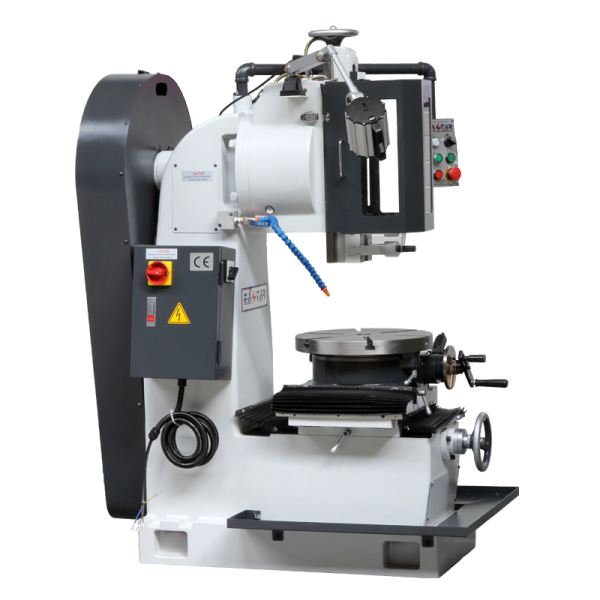

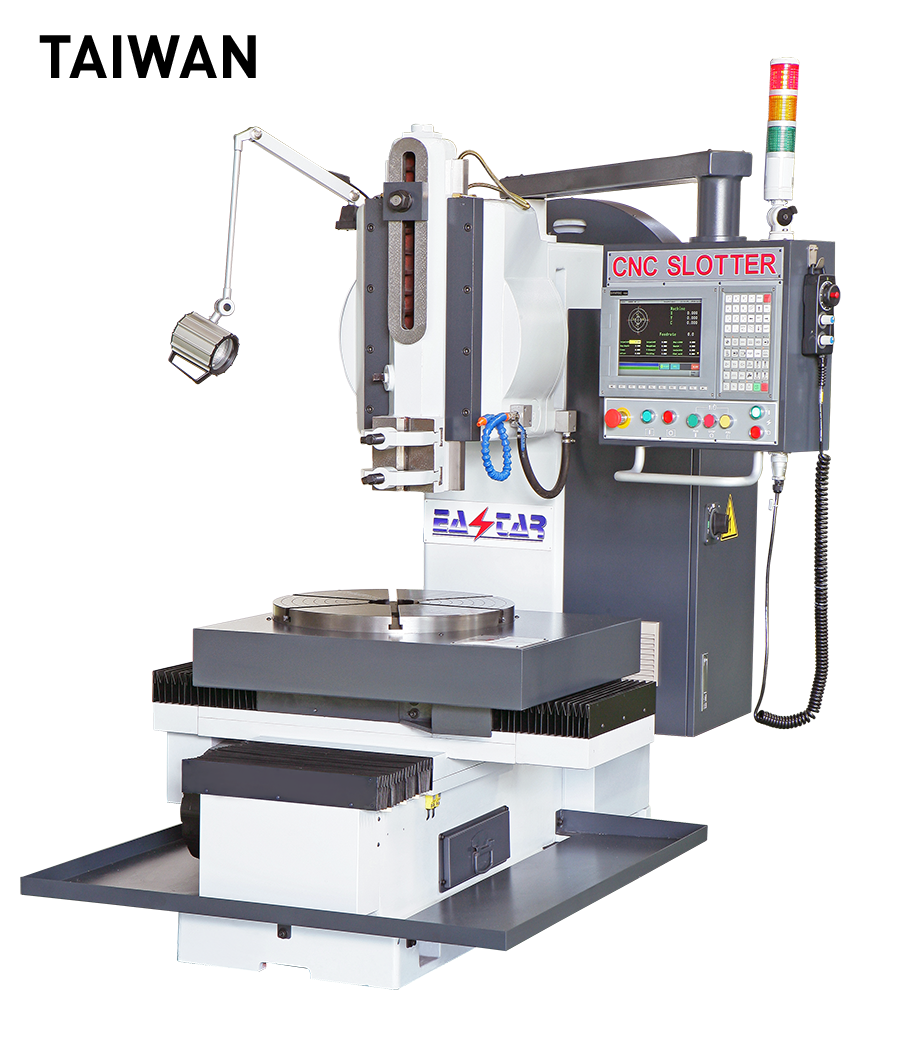

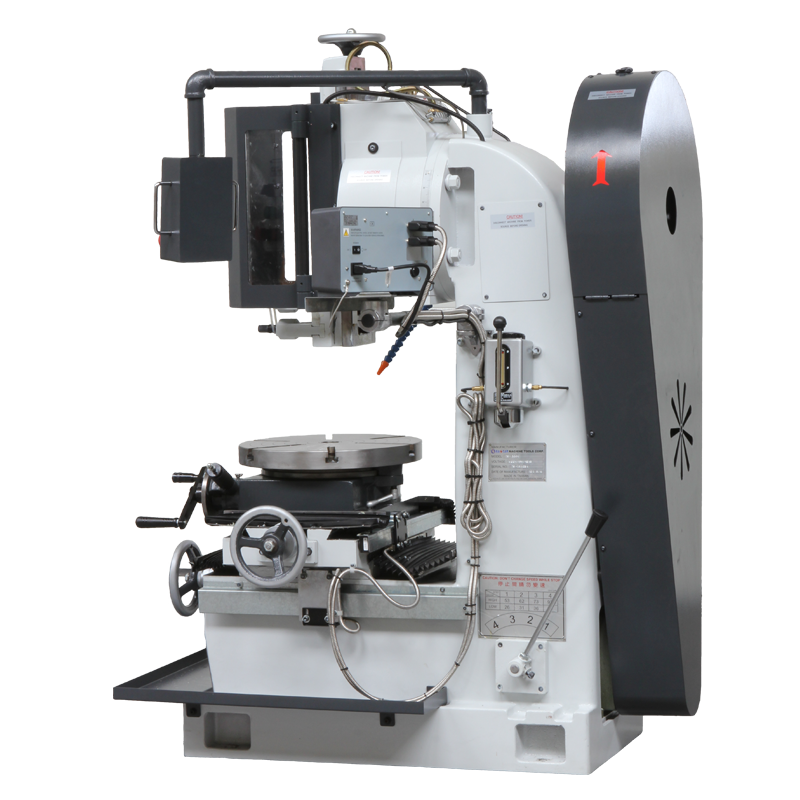

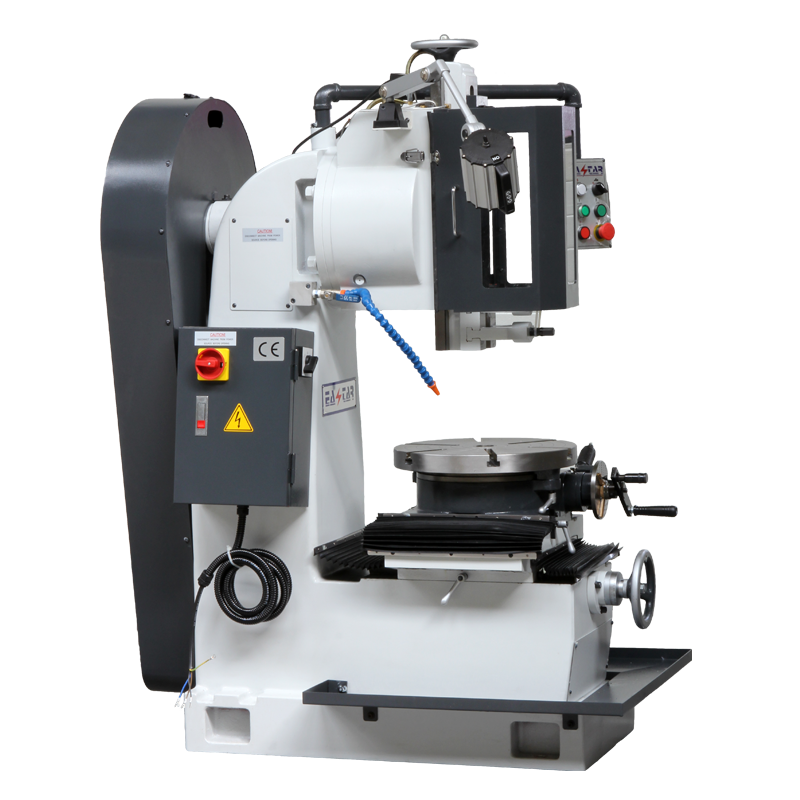

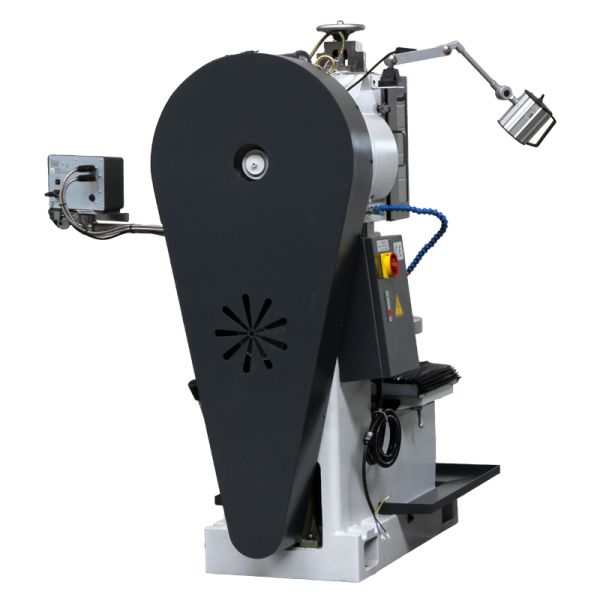

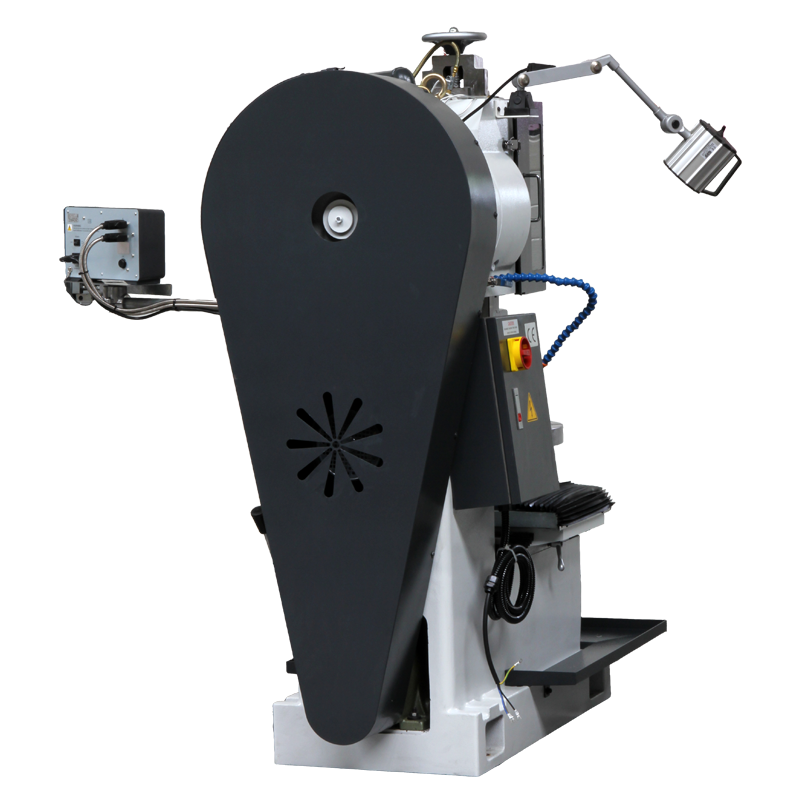

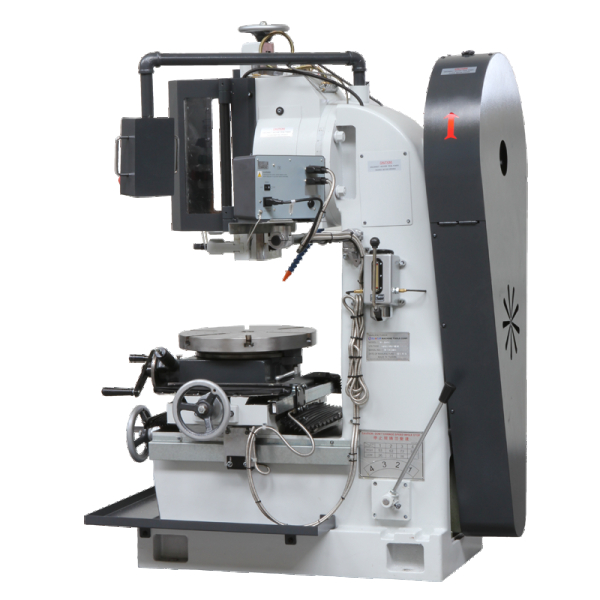

EUROMET DKS-300 CNC slotting machine
243 390,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
The EUROMET DKS-300 CNC slotting machine has hardened and ground beam guides that ensure the appropriate precision of movement and wear resistance. The central lubrication system ensures a continuous supply of lubricant to the key operating points of the machine tool.
Quantity
Add to cart
The main features of the device:
- Hardened and ground beam guides ensuring adequate precision of movement and wear resistance
- The chiselling head tilts +/- 30 °
- The central lubrication system ensures a continuous supply of lubricant to the key operating points of the machine tool
- The AC servo motor and the ball screw driving the feed ensure the highest accuracy and long life of the mechanisms
- Software with automatic tool retraction for the best surface and longer tool life
Standard equipment:
- Automatic lubrication system
- Class C3 ball screws in the X and Y axes
- Guards for sliding guides in the X, Y axes
- Cooling system
- MPG dial
- Workspace lighting
- Signaling lighting
- A set of basic maintenance tools
- User manual in English
- CE declaration of conformity
Optional equipment (additionally payable):
- Set for clamping the workpiece on the table
- 3-jaw chuck
| Technical data | Unit | Value |
|---|---|---|
| Slotting length (ram stroke) | [mm] | 0 - 300 |
| Number of strokes per minute (50Hz) | [1/min] | 22 - 78 |
| Vertical positioning of the beam | [mm] | 320 |
| Beam inclination angle | [°] | 30 |
| The distance between the base of the beam and the surface of the worktable | [mm] | 365 |
| Distance between the axis of the tool and the surface of the column | [mm] | 510 |
| Working table diameter | [mm] | 75 |
| Longitudinal travel of the working table (X) | [mm] | 432 |
| Transverse travel of the working table (Y) | [mm] | 432 |
| Main engine power | [kW] | 5 4p/8p |
| The diameter of the hole in the table | [mm] | 560 |
| X axis servo motor | [kW] | 1 |
| Y axis servo motor | [kW] | 1 |
| Rotation indexing | [°] | 0,001 (Auto) |
| Table rotation servo motor | [kW] | 2 |
| X, Y axis accelerated feed | [m/min] | 10 |
| Automatic feed of the working table | [mm/stroke] | 0,001-0,5 |
| Device dimensions | [mm] | 2000x1400x2030 |
| Weight | [kg] | 1700 |
Recommended

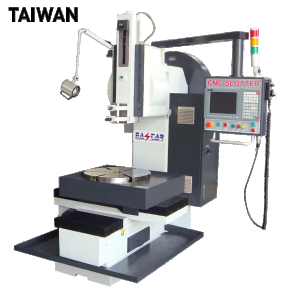

CNC Slotting machines
