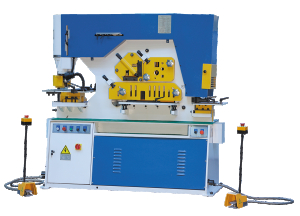

Nożyce Iron Worker IW115 pozwalają na wykonanie czynności: wybijanie; przecinanie pręta; przecinanie profili U, I ,T; przecinanie kątowników; przecinanie płaskowników.
Nożyce Iron Worker IW115 pozwalają na wykonanie poniższych czynności:
Technical data | Unit | Value |
---|---|---|
Diameter x max thickness | [mm] | Ø34x26 |
Diameter x thickness | [mm] | Ø55x16 |
Max. diameter x thickness | [mm] | Ø110x5 |
Pressure | [t] | 115 |
Stroke | [mm] | 80 |
Number of strokes | [mm] | 25 |
Channeling | [mm] | 355 |
Working height (knockout) | [mm] | 1110 |
Bar parting (round / rectangular) | [mm] | Ø55 / 50 |
Cutting angles at an angle of 90 ° | [mm] | 150x16 |
Cutting angles at an angle of 45 ° | [mm] | 80x10 |
Working height (cutting angles) | [mm] | 1215 |
Cutting flat bars | [mm] | 380x25 |
Cutting flat bars | [mm] | 600x15 |
Blade length | [mm] | 610 |
Punching an angle | [mm] | 120x15 |
Working height (angle bar) | [mm] | 935 |
Punching thickness | [mm] | 13 |
Punching width | [mm] | 60 |
Punching depth | [mm] | 100 |
Working height (punching) | [mm] | 935 |
Cutting U-I profiles | [mm] | 200x90 |
T-profile cutting | [mm] | 120x13 |
Punching V | [mm] | 100x13 |
Rod bending | [mm] | 250x22 |
Flat bar bending | [mm] | 700x3 |
Punching on a die (grooving) | [mm] | 125 |
Punching on a die (max. dimension) | [mm] | 38x12 |
Engine power | [kW] | 11 |
Dimensions (LxWxH) | [mm] | 2040x950x2180 |
Weight | [kg] | 2920 |
