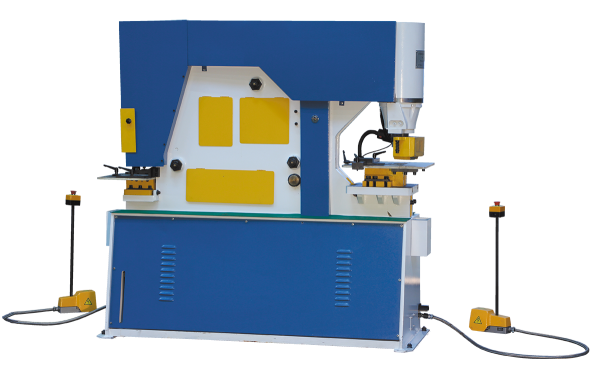

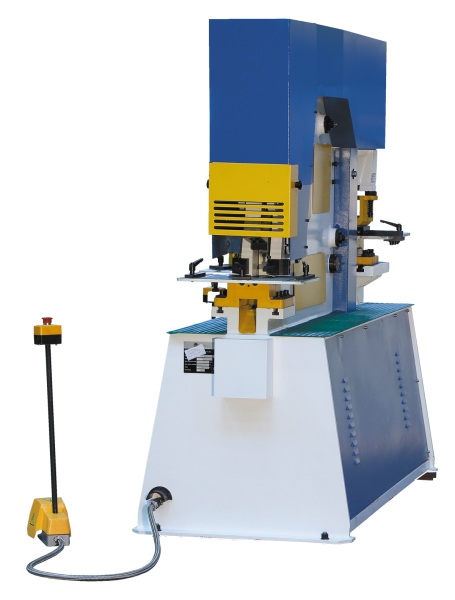

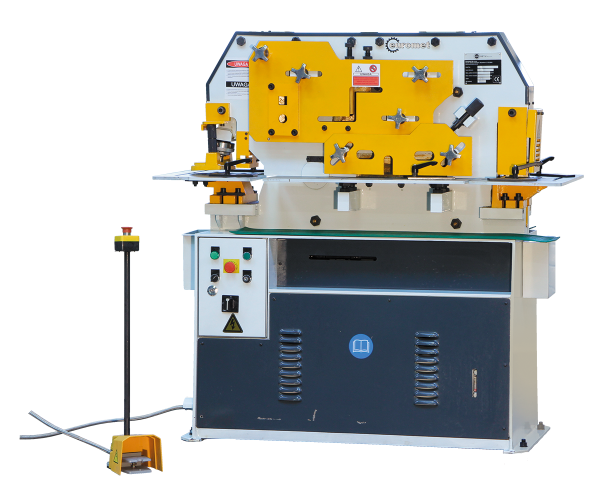

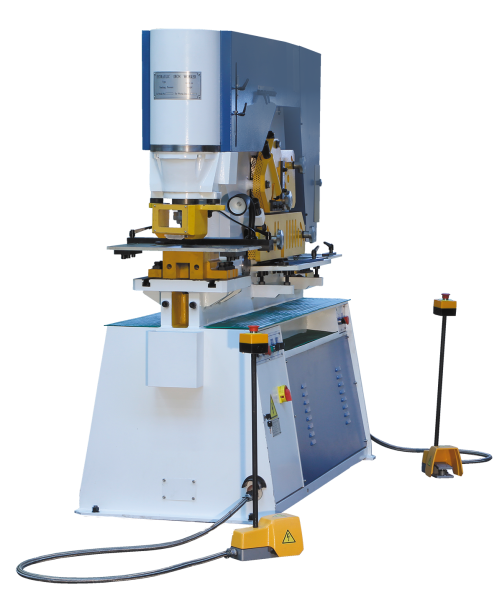

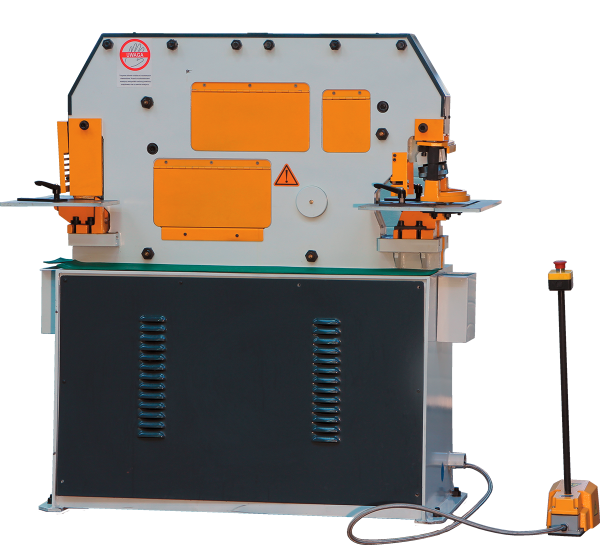

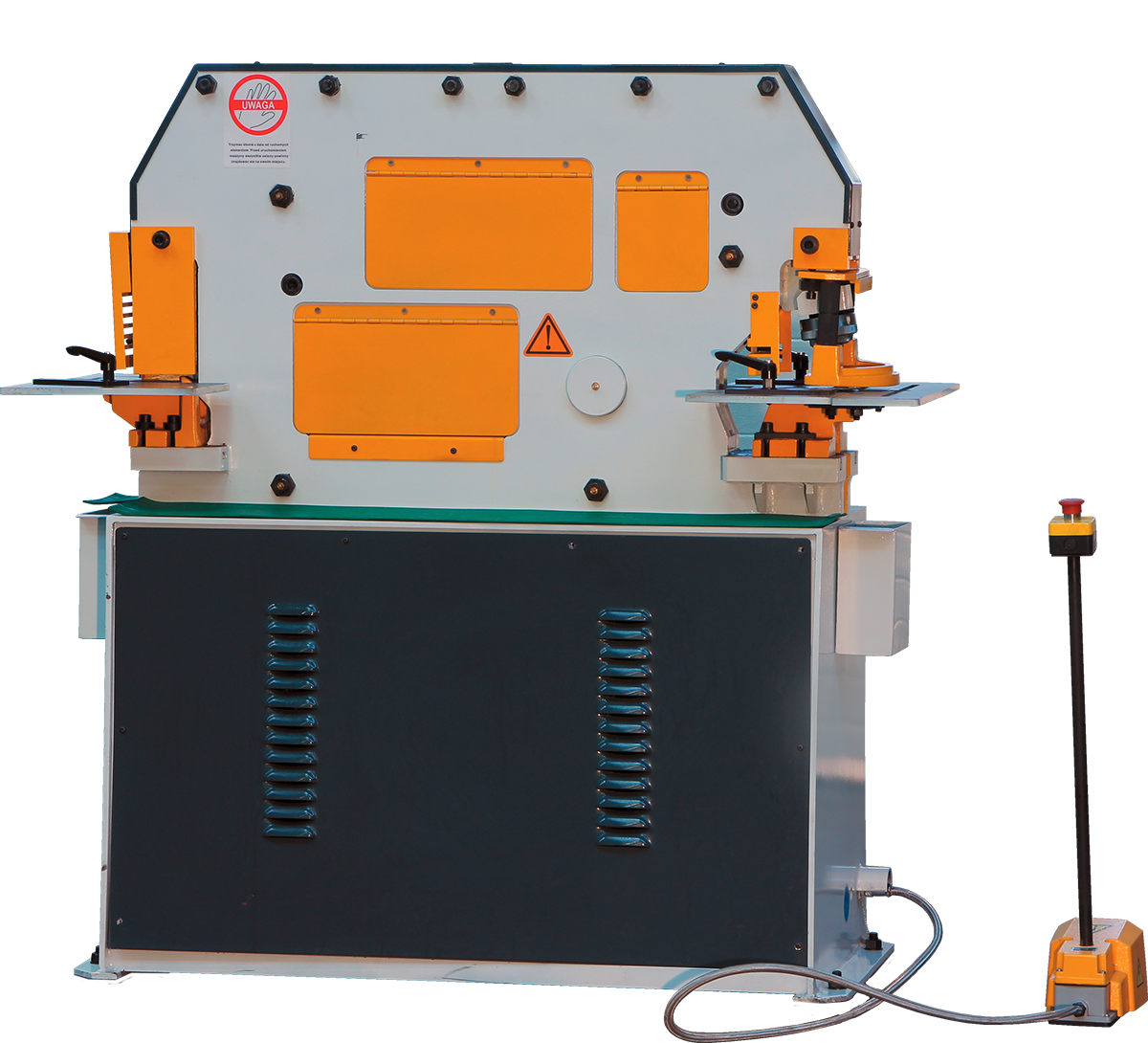

Iron Worker IW40 shears
46 882,50 zł net
No rating
12 months of warranty
Contact with a trader:
Michał Bartoszuk
E-mail: michal.bartoszuk@eurometal.com.pl
Telefon: 603505252
Michał Bartoszuk
E-mail: michal.bartoszuk@eurometal.com.pl
Telefon: 603505252
Iron Worker IW40 scissors allow you to perform the following activities: punching; cutting the bar; cutting U, I, T profiles; cutting angles; cutting flat bars.
Quantity
Add to cart
The Iron Worker IW40 shears allow you to perform the following activities:
- Knocking out - scissors will allow you to punch holes of various shapes. At the customer's request, the machine can be equipped with almost any shape of tools.
- Cutting a bar - the standard equipment of the machine allows you to cut round and square bars. At the customer's request, the machine can be equipped with scissors enabling cutting U, I, T and other profiles.
- Cutting angles - the machine allows you to cut angles at an angle of 90° or 45°.
- Cutting flat bars - depending on the model, the machine allows cutting flat bars with a width of 300 to 600 mm.
Standard equipment:
- Stamp and die ø22mm
- Stamp holder
- Blade for cutting flat bars
- Bar cutting blade
- Blade for cutting angles
- Central lubrication system
- Service keys
- User manual in English
- CE Declaration of Conformity
| Technical data | Unit | Value |
|---|---|---|
| Diameter x max thickness | [mm] | Ø20x15 |
| Diameter x thickness | [mm] | Ø30x10 |
| Max. diameter x thickness | [mm] | Ø35x8 |
| Pressure | [t] | 40 |
| Stroke | [mm] | 50 |
| Number of strokes | [mm] | 20 |
| Channeling | [mm] | 175 |
| Working height (knockout) | [mm] | 970 |
| Bar parting (round / rectangular) | [mm] | Ø30 / 25 |
| Cutting angles at an angle of 90 ° | [mm] | 80x8 |
| Cutting angles at an angle of 45 ° | [mm] | 50x6 |
| Working height (cutting angles) | [mm] | 1110 |
| Cutting flat bars | [mm] | 200x13 |
| Cutting flat bars | [mm] | 300x6 |
| Blade length | [mm] | 356 |
| Punching an angle | [mm] | 80x10 |
| Working height (angle bar) | [mm] | 980 |
| Cutting U-I profiles | [mm] | 76x38 |
| T-profile cutting | [mm] | 38x6 |
| Engine power | [kW] | 3 |
| Dimensions (LxWxH) | [mm] | 1100x800 x1520 |
| Weight | [kg] | 580 |
