IMET SIRIO 370 SH-E circular saw
53 500,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
The IMET SIRIO 370 SH-E circular saw is a semi-automatic disc cutter with a column feed for cutting from 0° to 45° to the right and from 0° to 60° to the left. An ideal machine for cutting bars and profiles (also with high durability).
Quantity
Add to cart

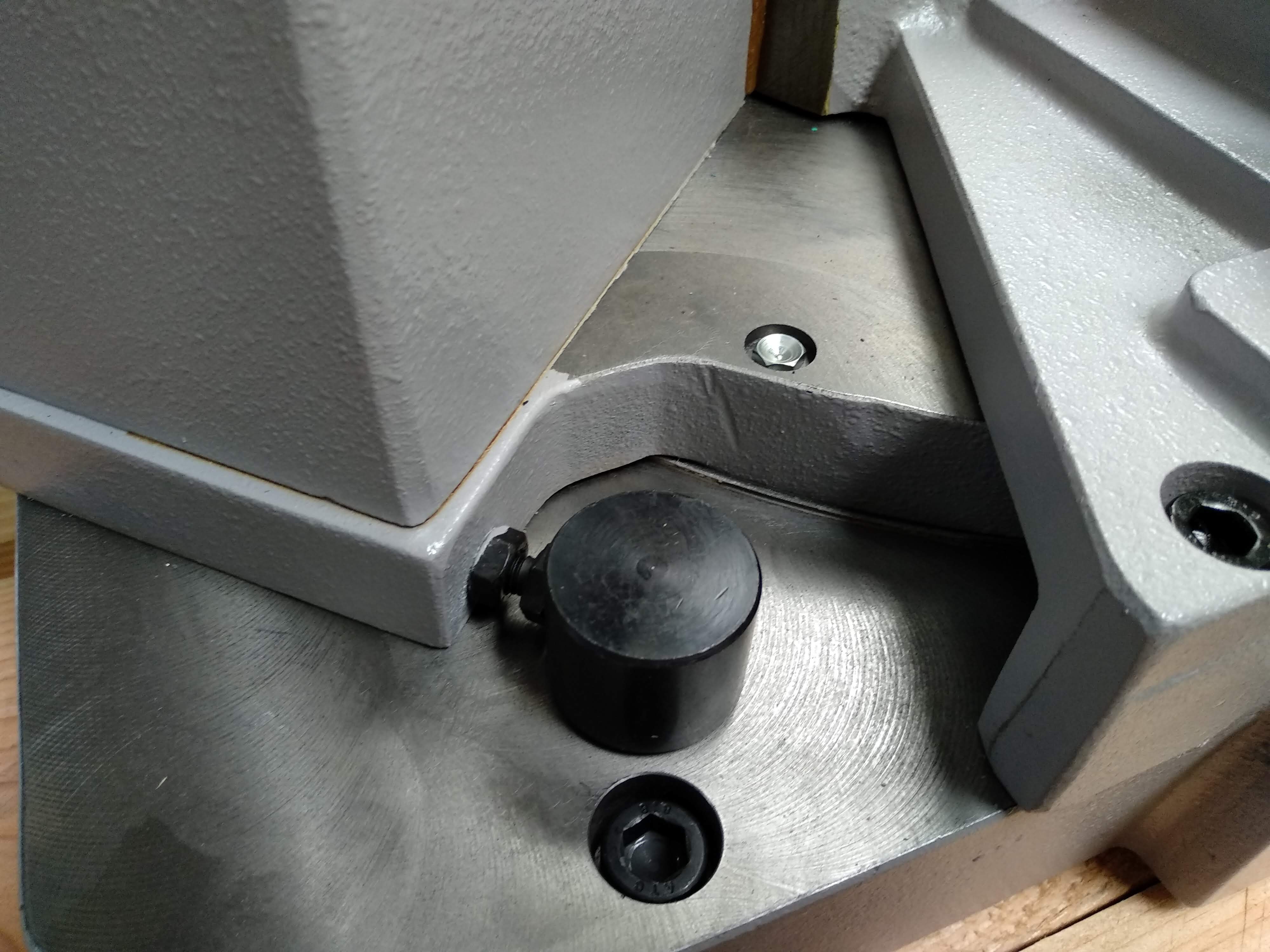

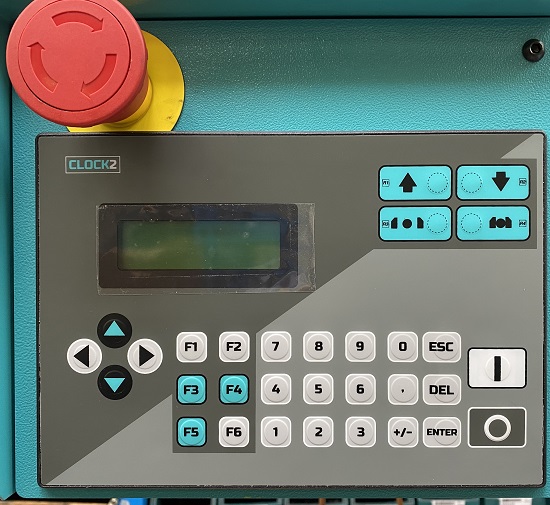

| The SIRIO models have high structural stability to reduce vibrations and movements of the miter saw when cutting. The rigid vertical structure is in cast iron with a large surface of contact between the machine head and the structure to ensure even more solidity when in use. | SIRIO is equipped with a system with adjustable stops at 0 ° and 45 °, adjustable bar stop and graduated scale for other angles and maximum positioning precision. | SIRIO 370 SH-E is a semi-automatic machine with electro-pneumatic operation and hydraulic control. Programming of the operator parameters and management of the cut are made by the control panel. | The semi-automatic disc cutting-off machines Sirio are fitted as standard with the pneumatic front vice with material locking and transversal movement on the work surface. |
DEVICE FEATURES:
- The machine is designed for cutting carbon steel, alloy steel, cast iron, etc.
- Pneumatic vice
- Automatic feed
- Possibility of cutting at an angle of up to 45 degrees to the left and 60 degrees to the right
Optional equipment (paid additionally):

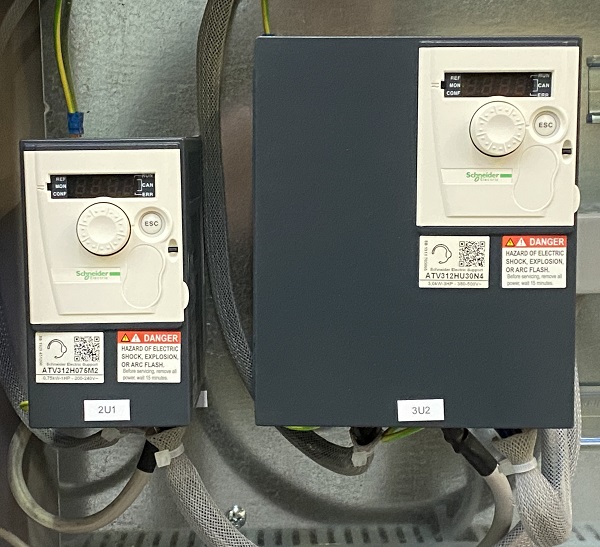

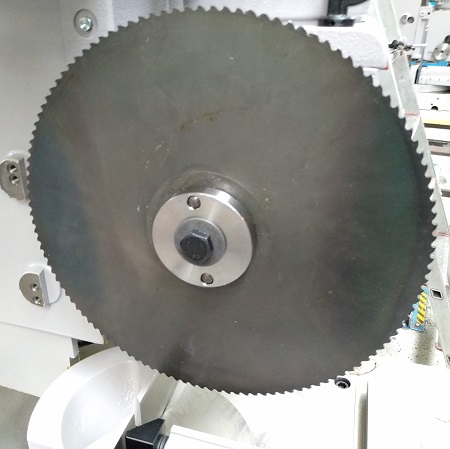

| Speed variator with inverter for 15-70 rpm speed, suitable for SIRIO 370 models. Speed can be extended to 30-140 rpm if used together with double speed device. | Device to synchronize the RTD/RTP table and the head motion | Vertical pneumatic vice for SIRIO. Compatible with manual version only if used together with pneumatic opening/closing vice | Sirio 370 mounts a blade 370X3X40 |

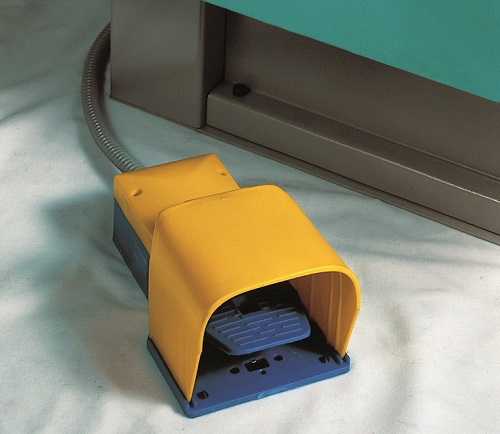

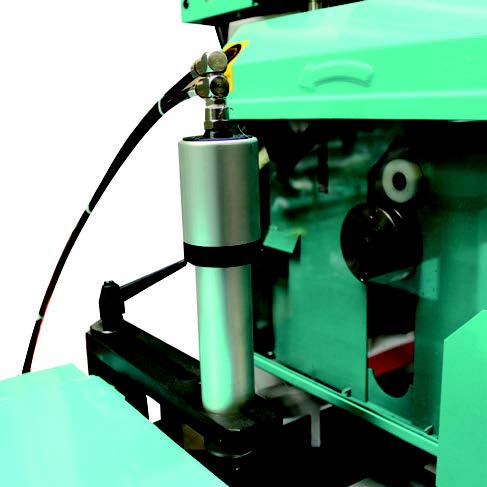

| Two pairs of cast iron V jaws to fittings bundles and round bars (max diameter 85 mm.) with tools to mount them | The lubrication system cancels the dispersion of the coolant without damaging or affecting the life of the blade. The system is equipped with a 1.3l tank and nozzle | Foot pedal with cable 3m + plug |
| Technical data | Unit | Value |
|---|---|---|
| The diameter of the cutting disc | [mm] | 370 |
| Vise opening width | [mm] | 180 |
| Disc bore diameter | [mm] | 40 |
| Cutting disc speed | [rpm/min] | 17/33 |

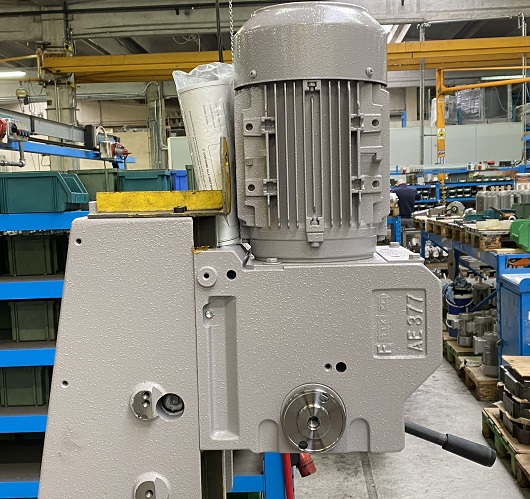

| Cutting disc motor power | [kW] | 3 |
| Working height | [mm] | 925 |
| Dimensions | [mm] | 810x1080x2100 |
| Weight | [kg] | 443 |
