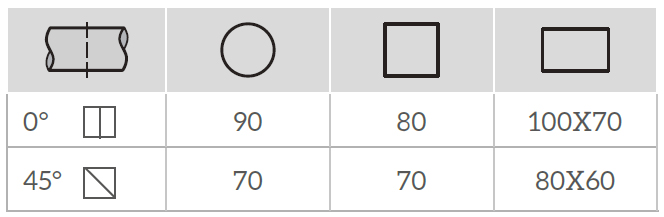

The PERFECT 275 manual circular saw is an ideal machine for small series production and for cutting profiles and solid materials (up to 42 kg / mm2) from 0 ° to 45 ° both on the right and left side. The machine is equipped with a user-friendly starting system using the start / stop button in the handle.

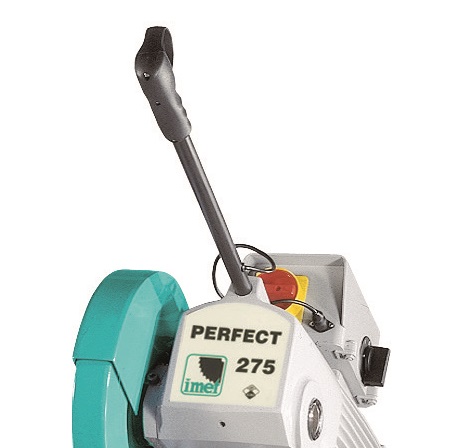

Ease of use PERFECT 275 is a versatile and easy work tool thanks to the quick start by start / stop button on the handle. |
Vice The machine is equipped with a front vise with anti-burr device, start button in the handle and adjustable bar stop. |

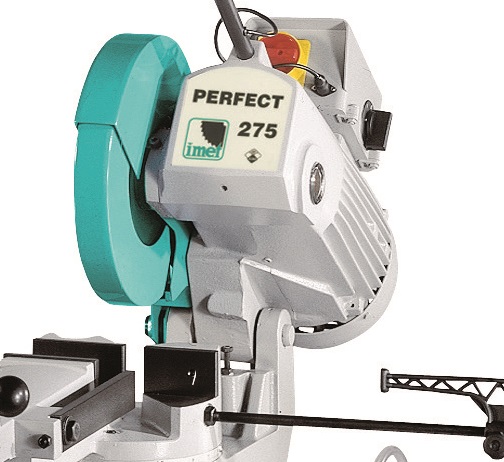

Monoblock head The engine head is one-piece, resistant and reliable with a lubrication-cooling circuit with pump and additional filter in the tank. The blade holder spindle is 32 mm and the blade is completely protected from a metal cover. |
Technical data | Unit | Value |
---|---|---|
The diameter of the cutting disc | [mm] | 275 |
Vise opening width | [mm] | 100 |
Cutting disc speed | [rpm/min] | 42 |
Cutting disc motor power | [kW] | 1.1 |
Coolant tank capacity | [l] | 2 |
Dimensions | [mm] | 500x850x950 |
Weight | [kg] | 112 |
