Manual band saw IMET GBS 218 ECO GH Auto Cut

14 180,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

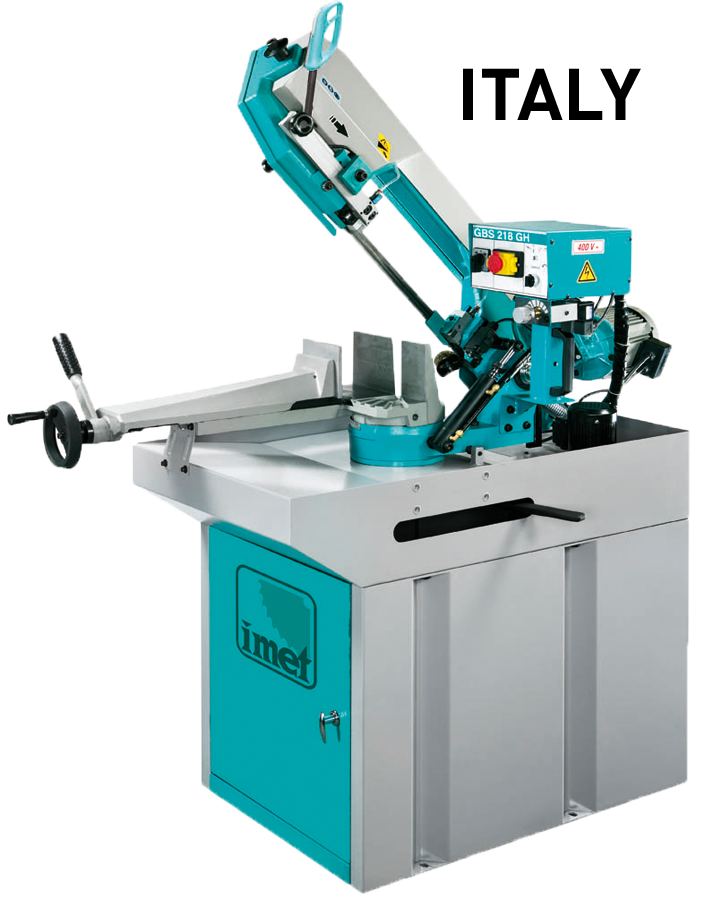

Manual band saw IMET GBS 218 ECO GH Auto Cut enabling cutting at an angle - arm swiveling up to 60° to the right - and hydraulic feed. The machine is equipped with a manual vice with quick clamping, manual lifting of the arm, cooling system, two cutting speeds and smoothly adjustable feed.

Quantity
Add to cart

Manual band saw IMET GBS 218 ECO GH Auto Cut enabling cutting at an angle - arm swiveling up to 60° to the right - and hydraulic feed. The machine is equipped with a manual vice with quick clamping, manual lifting of the arm, cooling system, two cutting speeds and smoothly adjustable feed.
Cutting tool - bimetallic strip, height 27 mm, is precisely guided in cubes made of sintered carbides.h.
Basic data:

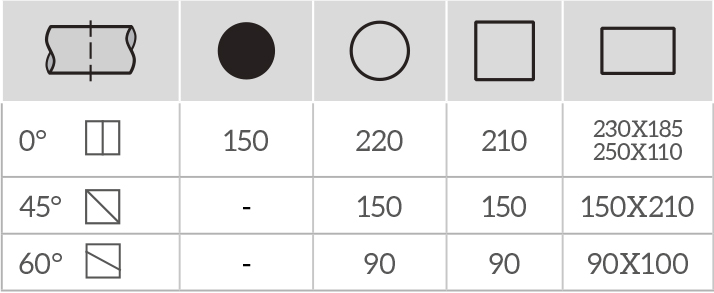

  • maximum cutting diameter: ø 220 mm
  • working feed: gravitational arm drop; smooth adjustment
  • arm lifting: manual
  • miter cut: Right 0° - 45° - 60°
  • cutting band size: 2455 x 27 x 0.9mm
  • band speed: 2 cutting speeds 35/70 m/min.
  • vice: manual - quick clamp

Standard equipment:
  • cooling system
  • bimetallic tape - 1 piece in the machine
  • english user manual
Additional equipment at an extra charge:
  • roller feeders
  • oil mist lubrication system (micronizer)
  • Strain gauge for precise adjustment of belt tension

Technical data Unit Value
The width of the cutting band [mm] 27
Vise opening width [mm] 230
The dimensions of the cutting band [mm] 2455×27×0,9
Cutting band speed [m/min] 35/70
Cutting band motor power [kW] 1,2
Working height [mm] 900
Dimensions [mm] 680x1400x1800
Weight [kg] 255
