Tool milling machines

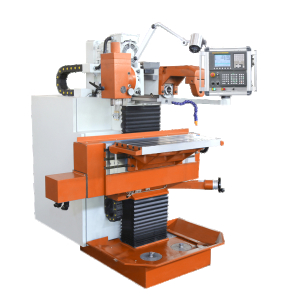

EUROMET FN32 NOVA (Sinumerik) Tool milling machine

145 013,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

EUROMET FN32 NOVA tool milling machine with Sinumerik 808D control is a precise machine that is perfect for tool shops, maintenance workshops or repair plants. Its versatility and extensive equipment offered as standard enable the production of complex details that require high precision machining.

Quantity
Add to cart

EUROMET FN32 NOVA tool milling machine with Sinumerik 808D control is a precise machine that is perfect for tool shops, maintenance workshops or repair plants. Its versatility and extensive equipment offered as standard enable the production of complex details that require high precision machining. A horizontal and vertical working table, a chiselling head or optional digital readouts for 3 axes are only a part of the extensive equipment of tool milling machines.
The main features of the device:
  • Each axis is driven by a separate servo motor
  • Electric handwheel control enables smooth axis movement
  • Automatic lubrication
  • A solid and durable housing ensures high stability and durability of the machine
  • Separate switch for accelerated feed and automatic feed for increased process efficiency

Standard equipment:
  • Sinumerik 808D
  • Steady rest
  • Digital readout of parameters (3 axes)
  • Workspace lighting
  • Tool hitch pin
  • Cooling system
  • Spanner
  • User manual in English
Optional equipment (additionally payable):
  • Schneider electric parts with CE certificate
  • ESM-BA301 safety relay and two-channel STOP button
  • Machine vice 8 "/ 10"
  • 5 "/ 6" / 8 "swivel vise, 2-axis swivel
  • A set of elements for attaching the handles to the table
  • Clamping handles
  • Cutter, NT40, Ø32mm
  • Drill chucks B22, Ø5-20mm
  • Rotary table vertical / horizontal 6 "/ 8" / 10 "
  • Universal divider
  • Horizontal table protection

Technical data Unit Value
Table dimensions (length) [mm] 750
Table dimensions (width) [mm] 320
X axis feed range [mm] 405
Y axis feed range [mm] 305
Z axis feed range [mm] 400
Spindle speed range [rpm/min] 40 - 2000
Table load capacity [kg] 160
Spindle taper [-] NT40
Accelerated feed X [mm/min] 1200
Accelerated feed Y [mm/min] 1200
Accelerated feed Z [mm/min] 1200
T-slots (No. x width x spacing) [mm] 5x14x63
Feed rate (X / Y / Z) [mm/min] 10-1000
Headstock motor power [kW] 3,7
Servo motor power (X / Y / Z) [mm] 7,7/7,7/10
Vertical table dimension [mm] 890x225
Distance between the vertical spindle and the center of the table [mm] 60
Device dimensions [mm] 1500x1700x1800
Machine weight [kg] 1450
