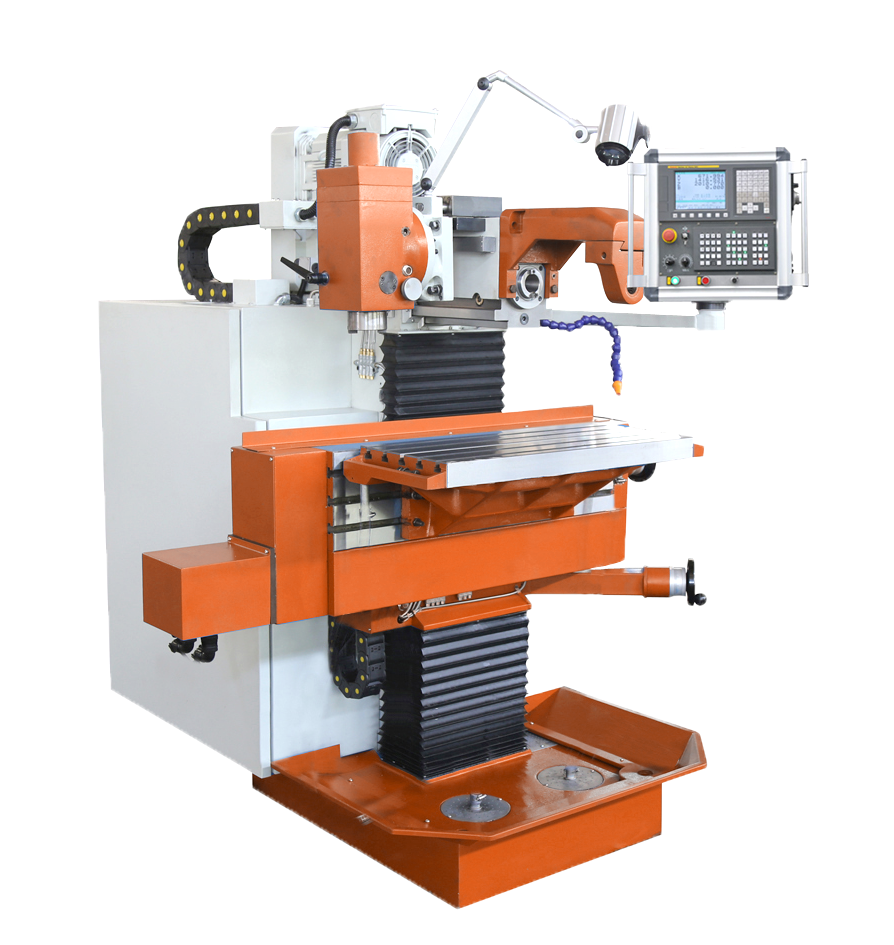

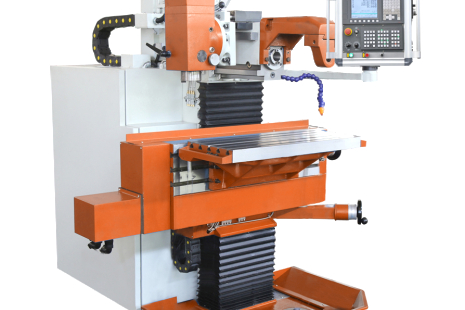

EUROMET FN32 NOVA (Sinumerik) Tool milling machine
145 013,00 zł net
No rating
12 months of warranty
EUROMET FN32 NOVA tool milling machine with Sinumerik 808D control is a precise machine that is perfect for tool shops, maintenance workshops or repair plants. Its versatility and extensive equipment offered as standard enable the production of complex details that require high precision machining.
Quantity
Add to cart
EUROMET FN32 NOVA tool milling machine with Sinumerik 808D control is a precise machine that is perfect for tool shops, maintenance workshops or repair plants. Its versatility and extensive equipment offered as standard enable the production of complex details that require high precision machining. A horizontal and vertical working table, a chiselling head or optional digital readouts for 3 axes are only a part of the extensive equipment of tool milling machines.
The main features of the device:
- Each axis is driven by a separate servo motor
- Electric handwheel control enables smooth axis movement
- Automatic lubrication
- A solid and durable housing ensures high stability and durability of the machine
- Separate switch for accelerated feed and automatic feed for increased process efficiency
Standard equipment:
- Sinumerik 808D
- Steady rest
- Digital readout of parameters (3 axes)
- Workspace lighting
- Tool hitch pin
- Cooling system
- Spanner
- User manual in English
Optional equipment (additionally payable):
- Schneider electric parts with CE certificate
- ESM-BA301 safety relay and two-channel STOP button
- Machine vice 8 "/ 10"
- 5 "/ 6" / 8 "swivel vise, 2-axis swivel
- A set of elements for attaching the handles to the table
- Clamping handles
- Cutter, NT40, Ø32mm
- Drill chucks B22, Ø5-20mm
- Rotary table vertical / horizontal 6 "/ 8" / 10 "
- Universal divider
- Horizontal table protection
| Technical data | Unit | Value |
|---|---|---|
| Table dimensions (length) | [mm] | 750 |
| Table dimensions (width) | [mm] | 320 |
| X axis feed range | [mm] | 405 |
| Y axis feed range | [mm] | 305 |
| Z axis feed range | [mm] | 400 |
| Spindle speed range | [rpm/min] | 40 - 2000 |
| Table load capacity | [kg] | 160 |
| Spindle taper | [-] | NT40 |
| Accelerated feed X | [mm/min] | 1200 |
| Accelerated feed Y | [mm/min] | 1200 |
| Accelerated feed Z | [mm/min] | 1200 |
| T-slots (No. x width x spacing) | [mm] | 5x14x63 |
| Feed rate (X / Y / Z) | [mm/min] | 10-1000 |
| Headstock motor power | [kW] | 3,7 |
| Servo motor power (X / Y / Z) | [mm] | 7,7/7,7/10 |
| Vertical table dimension | [mm] | 890x225 |
| Distance between the vertical spindle and the center of the table | [mm] | 60 |
| Device dimensions | [mm] | 1500x1700x1800 |
| Machine weight | [kg] | 1450 |
