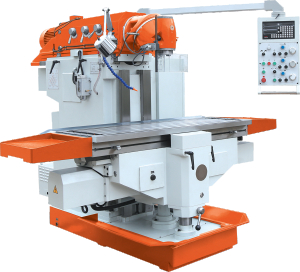

MILLING MACHINE WITH SERVOMOTORS FUS 50 NOVA CNC - TABLE: 2000 X 500 MM
Priced individually
No rating
12 months of warranty
Contact with a trader:
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252
EUROMET FUS 50 Nova CNC milling machine - table: 2000 x 500 mm has: servo motor for three axes X, Y, Z; handwheel for precise tool setting and smooth movement, solid and durable housing ensuring high stability and durability of the machine; simultaneous movement of several axes; automatic lubrication.
EUROMET FUS 50 Nova CNC milling machine - table: 2000 x 500 mm has: servo motor for three axes X, Y, Z; handwheel for precise tool setting and smooth movement, solid and durable housing ensuring high stability and durability of the machine; simultaneous movement of several axes; automatic lubrication.
Standard equipment:
- ISO50 and a cutter with a diameter of 40mm
- SINUMERIK 808 CNC control
- Digital readout of parameters
- Clamp holder, NT50 and a set of wrenches,
- Spanner
- Cooling system
- Workspace lighting
- Oil dispenser
- Tool draw pin
- Manual in English
Optional equipment (paid additionally):
- A table with a length of 2000 mm and a feed range of 1500 mm in the X axis
- Headstock protection
- Schneider electric parts with CE certificate
- Pneumatic tool holder
- Automatic oil pump
- Table protection
- Machine vice, 8 "/ 10"
- Rotary vise 5 "/ 6" / 8 "
- Clamp holder, NT50 and a set of socket wrenches
- Boring tool set, NT50, 83mm head, 8-280mm turning diameter
- Shelling and milling handle, NT40 / 32mm
- Shelling and milling handle, NT50 / 40mm
- Face milling cutter with a diameter of 100/160 mm
- Drill chuck, B22, 5-20mm
| Technical data | Unit | Value |
|---|---|---|
| Table dimensions (length) | [mm] | 2000 |
| Table dimensions (width) | [mm] | 500 |
| X axis feed range | [mm] | 1400 |
| Y axis feed range | [mm] | 700 |
| Z axis feed range | [mm] | 500 |
| Spindle speed range | [rpm/min] | 30 - 2050 |
| Table load capacity | [kg] | 1800 |
| Spindle taper | [-] | 7:24 ISO No.50 |
| Accelerated feed X | [mm/min] | 2200 |
| Accelerated feed Y | [mm/min] | 2200 |
| Accelerated feed Z | [mm/min] | 1100 |
| T-slots (No. x width x spacing) | [mm] | 5x18x80 |
| Feed rate (X / Y / Z) | [mm/min] | 10-1000/10-1000/5-500 |
| Headstock motor power | [kW] | 7,5 |
| The angle of rotation of the vertical headstock | [°] | 360 |
| Servo motor power (X / Y / Z) | [mm] | 15/15/18 |
| Distance between the vertical spindle and the center of the table | [mm] | 50-550 |
| Distance between the axis of rotation of the headstock to the column surface | [mm] | 28-728 |
| Device dimensions | [mm] | 2625x2260x2180 |
| Machine weight | [kg] | 5500 |
