EUROMET SN-600Q tool grinding machine

22 403,85 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 577252233

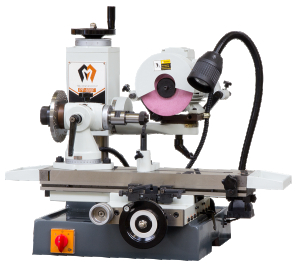

The EUROMET SN-600Q tool grinder is dedicated to grinding high-speed steel, hardened steel or other materials used in the manufacture of tools. It is suitable for grinding cylindrical surfaces as well as any other surfaces of cutting tools.

Quantity
Add to cart

The EUROMET SN-600Q tool grinder is dedicated to grinding high-speed steel, hardened steel or other materials used in the manufacture of tools. It is suitable for grinding cylindrical surfaces as well as any other surfaces of cutting tools. The device equipped with additional attachments can be used for grinding the surfaces of gear wheels, shaped cutters, turning knives, flat cutters, cylindrical cutters, drills, taps and others. The work table in the SN series machines is based on precise ball guides, which provide rigid, backlash-free support with full freedom of movement. The body of the device is made of high-quality cast iron.
The main features of the device:
  • The grinding wheel is indirectly driven by a V-belt drive
  • Workspace lighting
  • Knob for rapid longitudinal movement of the table (knurled)
  • Fixed table (non-torsion)


ATTACHMENT 50D

Adapter for grinding the side cutting surfaces of cylindrical cutters, end mills, end mills, drills, taps, etc. Grinding diameter: 6-25 mm.
ATTACHMENT 50E

Attachment for grinding milling cutters with a cylindrical cutting surface.
ATTACHMENT 50K

Przystawka do szlifowania powierzchni czołowych wierteł, wierteł stopniowych, pogłębiaków itp. Średnica szlifowania: 1,5-32 mm (chwyt prosty lub stożkowy) Podwójna krzywka – umożliwia szlifowanie szerokiego zakresu wierteł.
UNIVERSAL ATTACHMENT

Universal attachment for grinding and sharpening disc mills, end mills, lathe knives (when changing the tip), etc.

Standard equipment of the SN-600Q, SN-600F, SN-800F grinder

Equipment of the device:
  • Universal attachment
  • Abrasive disc
  • User manual in English
  • CE declaration of conformity
Optional equipment (additionally payable):
  • Adapter for grinding the side cutting surfaces of cylindrical cutters, end mills, end mills, drills, taps, etc. Grinding diameter: 6-25 mm - 50D
  • Attachment for grinding milling cutters with a cylindrical cutting surface. - 50E
  • Attachment for grinding the face surfaces of drills, step drills, countersinks, etc. - 50K
  • Universal attachment for grinding and sharpening disc mills, end mills, lathe knives (when changing the tip), etc. (Standard equipment of the SN-600Q, SN-600F, SN-800F grinder)

Technical data Unit Value
Workpiece diameter [mm] 250
Spindle speed [rpm/min] 0 - 2800
The dimensions of the grinding wheel [mm] 150 x 16/50 x 32
Grinding wheel head motor power [kW] 0,6
Longitudinal travel of the working table [mm] 260
Transverse travel of the working table [mm] 150
Vertical spindle travel [mm] 150
Head rotation angle [°] 360
Working table width [mm] 130
Length of the working table [mm] 550
Dimensions [mm] 700 x 630 x 630
