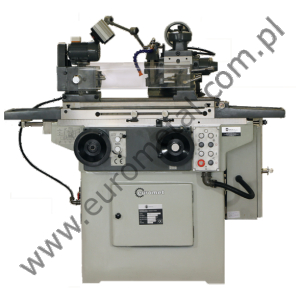

EUROMET SN-6025W tool grinding machine

28 654,50 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The EUROMET SN-6025W tool grinder is dedicated to grinding high-speed steel, hardened steel or other materials used in the manufacture of tools. It is suitable for grinding cylindrical surfaces as well as any other surfaces of cutting tools.

Quantity
Add to cart

The EUROMET SN-6025W tool grinder is dedicated to grinding high-speed steel, hardened steel or other materials used in the manufacture of tools. It is suitable for grinding cylindrical surfaces as well as any other surfaces of cutting tools. The device equipped with additional attachments can be used for grinding the surfaces of gear wheels, shaped cutters, turning knives, flat cutters, cylindrical cutters, drills, taps and others. The work table in the SN series machines is based on precise ball guides, which provide rigid, backlash-free support with full freedom of movement. The body of the device is made of high-quality cast iron.
The main features of the device:
  • The grinding wheel is indirectly driven by a V-belt drive
  • Workspace lighting
  • Knob for rapid longitudinal movement of the table (knurled)
  • Fixed table (non-torsion)

ATTACHMENT 50D

Adapter for grinding the side cutting surfaces of cylindrical cutters, end mills, end mills, drills, taps, etc. Grinding diameter: 6-25 mm.
ATTACHMENT 50E

Attachment for grinding milling cutters with a cylindrical cutting surface.
ATTACHMENT 50K

Attachment for grinding the face of drills, step drills, countersinks, etc. Grinding diameter: 1.5-32 mm (straight or conical shank) Double cam - enables grinding of a wide range of drills.
UNIVERSAL ATTACHMENT

Universal attachment for grinding and sharpening disc mills, end mills, lathe knives (when changing the tip), etc.

Standard equipment of the SN-600Q, SN-600F, SN-800F grinder

Standard equipment:
  • Universal attachment
  • Abrasive disc
  • User manual in English
  • CE declaration of conformity
Optional equipment (additionally payable):
  • Adapter for grinding the side cutting surfaces of cylindrical cutters, end mills, end mills, drills, taps, etc. Grinding diameter: 6-25 mm - 50D
  • Attachment for grinding milling cutters with a cylindrical cutting surface. - 50E
  • Attachment for grinding the face surfaces of drills, step drills, countersinks, etc. - 50K
  • Universal attachment for grinding and sharpening disc mills, end mills, lathe knives (when changing the tip), etc. (Standard equipment of the SN-600Q, SN-600F, SN-800F grinder)

Technical data Unit Value
Workpiece diameter [mm] 250
Spindle taper [-] MT4
Spindle speed [rpm/min] 4200 - 7000
Cross travel of the grinding wheel head [mm] 220
The dimensions of the grinding wheel [mm] 150 x 16/50 x 32
Grinding wheel head motor power [kW] 0,6
Longitudinal travel of the working table [mm] 330
Transverse travel of the working table [mm] 150
Vertical spindle travel [mm] 150
Head rotation angle [°] 360
Working table width [mm] 130
Length of the working table [mm] 680
Dimensions [mm] 730 x 730 x 715

Media
