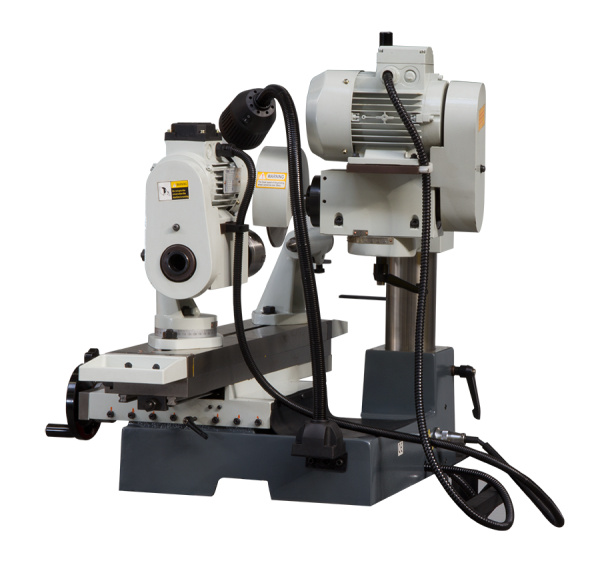

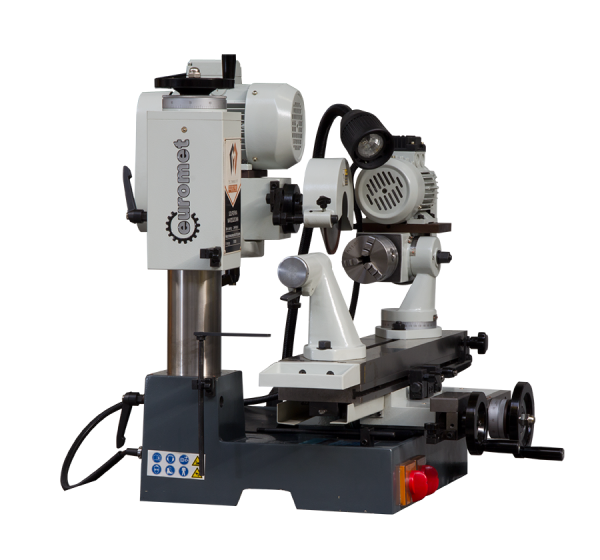

EUROMET SN-6025W tool grinding machine
28 654,50 zł net
No rating
12 months of warranty
The EUROMET SN-6025W tool grinder is dedicated to grinding high-speed steel, hardened steel or other materials used in the manufacture of tools. It is suitable for grinding cylindrical surfaces as well as any other surfaces of cutting tools.
Quantity
Add to cart
The EUROMET SN-6025W tool grinder is dedicated to grinding high-speed steel, hardened steel or other materials used in the manufacture of tools. It is suitable for grinding cylindrical surfaces as well as any other surfaces of cutting tools. The device equipped with additional attachments can be used for grinding the surfaces of gear wheels, shaped cutters, turning knives, flat cutters, cylindrical cutters, drills, taps and others. The work table in the SN series machines is based on precise ball guides, which provide rigid, backlash-free support with full freedom of movement. The body of the device is made of high-quality cast iron.
The main features of the device:
- The grinding wheel is indirectly driven by a V-belt drive
- Workspace lighting
- Knob for rapid longitudinal movement of the table (knurled)
- Fixed table (non-torsion)
| ATTACHMENT 50D Adapter for grinding the side cutting surfaces of cylindrical cutters, end mills, end mills, drills, taps, etc. Grinding diameter: 6-25 mm. |
|
| ATTACHMENT 50E Attachment for grinding milling cutters with a cylindrical cutting surface. |
|
| ATTACHMENT 50K Attachment for grinding the face of drills, step drills, countersinks, etc. Grinding diameter: 1.5-32 mm (straight or conical shank) Double cam - enables grinding of a wide range of drills. |
|
| UNIVERSAL ATTACHMENT Universal attachment for grinding and sharpening disc mills, end mills, lathe knives (when changing the tip), etc. Standard equipment of the SN-600Q, SN-600F, SN-800F grinder |
Standard equipment:
- Universal attachment
- Abrasive disc
- User manual in English
- CE declaration of conformity
Optional equipment (additionally payable):
- Adapter for grinding the side cutting surfaces of cylindrical cutters, end mills, end mills, drills, taps, etc. Grinding diameter: 6-25 mm - 50D
- Attachment for grinding milling cutters with a cylindrical cutting surface. - 50E
- Attachment for grinding the face surfaces of drills, step drills, countersinks, etc. - 50K
- Universal attachment for grinding and sharpening disc mills, end mills, lathe knives (when changing the tip), etc. (Standard equipment of the SN-600Q, SN-600F, SN-800F grinder)
| Technical data | Unit | Value |
|---|---|---|
| Workpiece diameter | [mm] | 250 |
| Spindle taper | [-] | MT4 |
| Spindle speed | [rpm/min] | 4200 - 7000 |
| Cross travel of the grinding wheel head | [mm] | 220 |
| The dimensions of the grinding wheel | [mm] | 150 x 16/50 x 32 |
| Grinding wheel head motor power | [kW] | 0,6 |
| Longitudinal travel of the working table | [mm] | 330 |
| Transverse travel of the working table | [mm] | 150 |
| Vertical spindle travel | [mm] | 150 |
| Head rotation angle | [°] | 360 |
| Working table width | [mm] | 130 |
| Length of the working table | [mm] | 680 |
| Dimensions | [mm] | 730 x 730 x 715 |
