Hole grinding machines

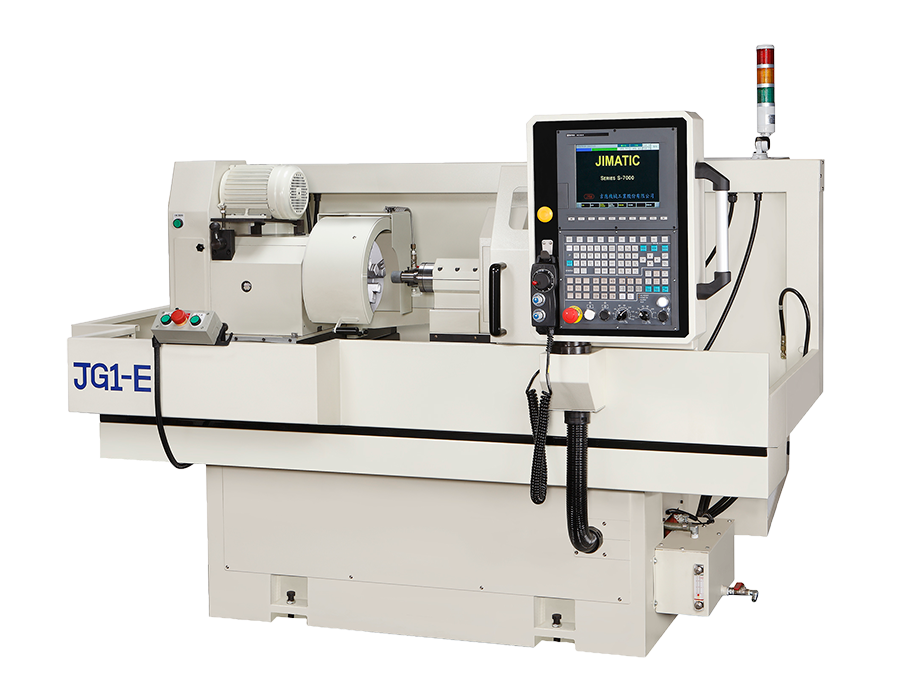

JG1-E Ø 6-150mm hole grinder
296 462,25 zł net
No rating
12 months of warranty
JG1 hole grinders integrate many processes - clamping, grinding of internal surfaces, holes and faces - into full grinding processes. These machines are characterized by a powerful working capacity performing a series of 8 procedures simultaneously.
Quantity
Add to cart
JG1 hole grinders integrate many processes - clamping, grinding of internal surfaces, holes and faces - into full grinding processes. These machines are characterized by a powerful working capacity performing a series of 8 procedures simultaneously.
Features of the device:
- Hole grinder ø6- ø150 mm
- High efficiency and precision
- Efficient grinding, cost optimization, mass production
- Taiwan precision manufacturer
Standard equipment:
- N / a driver (hc10b-k touch)
- Servo motor in the x and z axis
- Ball screws in the x and z axis
- Diamond dresser φ10 * 35l
- Coolant pump and reservoir
- Splash guard φ340
- Device for automatic adjustment of the tension of the rotary belt
- Belt and pulley (30 * 913, φ190)
- Grinding spindle (belt) (20,000 rpm)
- Magnetic coolant separator
- LED work light
- Tool box with a set of maintenance tools
- Leveling adjusting screw and base
- Cover
- CE declaration of conformity
- User manual in English
Optional equipment (additionally payable):
- Hydraulic 3-jaw chuck
- Oil mist lubrication
- Paper filter 9 ”3-jaw chuck 8” flange
- 20 * 950/30/785 belt
- Pulley φ190
- Grinding spindle 50,000 rpm / 40,000 rpm / 30,000 rpm / 20,000 rpm / 10,000 rpm.
- Oil mist collector
- Attachment for automatic face grinding
- Full cover
| Technical data | Unit | Value |
|---|---|---|
| Swing diameter over the table | [mm] | 400 |
| Grinding depth | [mm] | 150 |
| Internal grinding range | [mm] | 6 - 150 |
| Outer diameter of the workpiece to be machined | [mm] | 300 |
| Workpiece length | [mm] | 180 |
| Load on the spindle head | [kg] | 180 |
| Spindle speed | [rpm/min] | 1 - 900 |
| Inner hole taper | [-] | MT5 |
| Through hole diameter | [mm] | 32 |
| Swivel of the headstock | [°] | -5~+25 |
| Feed in the X axis | [mm] | 200 |
| Feed in the Z axis | [mm] | 250 |
| Minimum feed value | [mm] | 0.001 |
| Automatic infeed speed | [mm/min] | 5000 |
| Voltage | [V] | 200(60Hz) |
| Device dimensions (LxWxH) | [mm] | 1600 |
| Weight | [kg] | 2150x1620x1370 |
