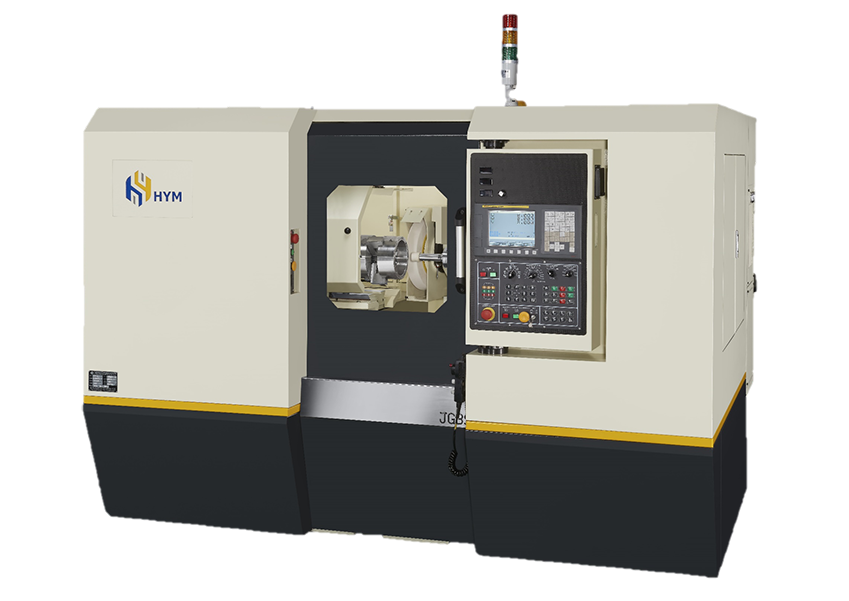

JG3S Ø 6-200mm hole grinder

Priced individually
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 577252233

JG3S hole grinders, thanks to their high accuracy, make it easy to find the optimal process for the workpiece. These machines automatically grind internal and external diameters, faces and cones.

JG3S hole grinders, thanks to their high accuracy, make it easy to find the optimal process for the workpiece. These machines automatically grind internal and external diameters, faces and cones.
FANUC controller and self-developed JIMATIC F-9000 grinding software. Perfect twenty workpiece grinding routines at one time, including internal and face surfaces etc., for large capacity, simple grinding, high efficiency and high accuracy.
  • Taiwanese cnc hole grinding machine
  • High efficiency and precision
  • CNC control system

Standard equipment:
  • Fanuc 0i-tf controller, JIMATIC-F9000 software (Fanuc system)
  • X and Z axis servo motor
  • Ball screws in the X and Z axis
  • Hydraulic pressure lubrication system
  • Diamond dresser φ10 * 35l
  • Magnetic coolant separator
  • Splash guard φ340
  • Grinding spindle (belt) 90-250l (10,000 rpm)
  • Belt and pulley (30 * 913, φ190)
  • Inverter (Yaskawa) (3hp)
  • Grinding wheel motor (3hp)
  • Paper filter and pump (250l)
  • LED work light
  • Tool box with a set of maintenance tools
  • Leveling adjusting screw and base
  • Full cover with oil mist collector
  • Warning lighting
  • CE declaration of conformity
  • User manual in English
Optional equipment (additionally payable):
  • Hydraulic 3-jaw chuck
  • Oil mist lubrication
  • 9 ”3-jaw chuck

Technical data Unit Value
Swing diameter over the table [mm] 300
Grinding depth [mm] 200
Internal grinding range [mm] 6 - 200
External grinding range [mm] 150
Outer diameter of the workpiece to be machined [mm] 150
Length of external grinding [mm] 250
Workpiece length [mm] 250
Load on the spindle head [kg] 90
Spindle speed [rpm/min] 1 - 900
Inner hole taper [-] MT5
Through hole diameter [mm] 32
Swivel of the headstock [°] -5~+25
Feed in the X axis [mm] 200
Feed in the Z axis [mm] 250
Minimum feed value [mm] 0.001
Automatic infeed speed [mm/min] 5000
Voltage [V] 200(60Hz)
Device dimensions (LxWxH) [mm] 1600
Weight [kg] 2150x1620x1370
