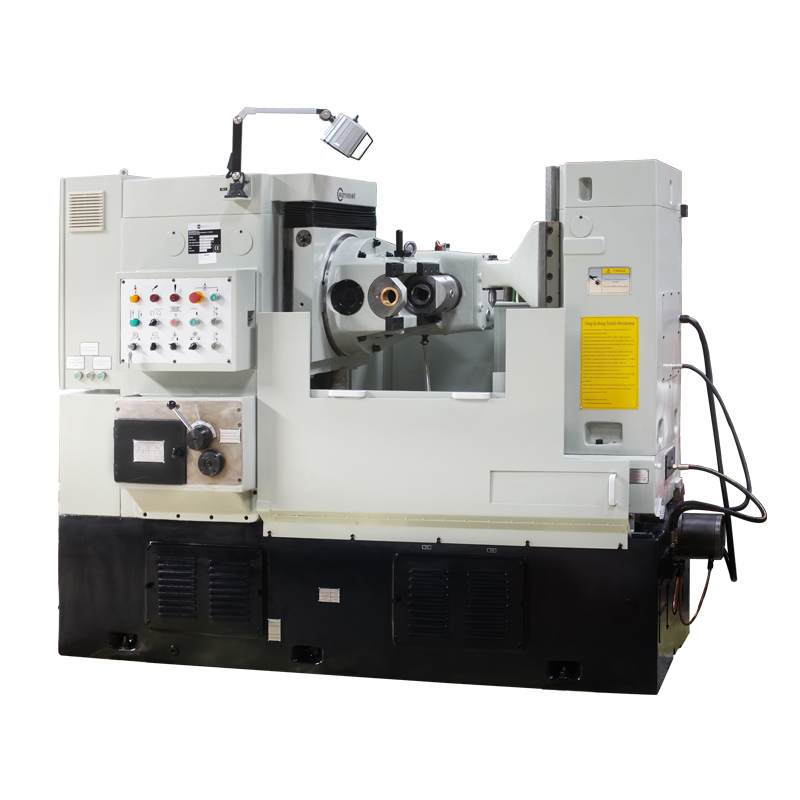

The EUROMET FOZ800 hobbing machine is equipped with a central lubrication system and a cooling system. It has safety-required covers for the working space and moving parts of the machine. The machine is used in serial, small-lot and unit production of gears, worm wheels, splined shafts and other shapes located on external cylindrical surfaces.
The EUROMET FOZ800 hobbing machine is equipped with a central lubrication system and a cooling system. It has safety-required covers for the working space and moving parts of the machine.
The machine is used in serial, small-lot and unit production of gears, worm wheels, splined shafts and other shapes located on external cylindrical surfaces.
FOZ machine tools, thanks to the double walls of the column and bed, are characterized by high stiffness and very small thermal deformations, which ensures high-efficiency and accurate machining with high cutting parameters.
The machines are easy to use and adjust, so one operator can operate several machines at the same time.
When machining wheels, axial feed is possible clockwise and counterclockwise.
Standard equipment:
- Tool pins
- Shift wheels
- Safety cover
- PLC driver
- Hydraulic system and lubrication system
- Equipment for machine installation
Optional equipment (for an additional fee):
- Machine marked B – semi-automatic
- Machine with the X mark - high production with increased efficiency
| Technical data | Unit | Value |
|---|---|---|
| Module | [mm] | 10 |
| Workpiece diameter | [mm] | 800 |
| Machining width | [mm] | 320 |
| Minimum number of teeth | [-] | 8 |
| Helix angle | [°] | +/- 45 |
| Steady rest vertical travel | [mm] | 350 |
| Distance between the spindle axis and the table surface | [mm] | 235 - 585 |
| Distance between the spindle axis and the table axis | [mm] | 50 - 550 |
| Distance between the steady axis and the table surface | [mm] | 400 - 630 |
| Table diameter | [mm] | 650 |
| Spindle speed | [rpm/min] | 40 - 200 |
| Hole in the table | [mm] | 80 |
| Spindle taper | [-] | Morse No 5 |
| Tool mandrel diameter | [mm] | 27/32/40 |
| Axial feed range | [mm/rpm] | 0,4 - 4 |
| Main engine power | [kW] | 5,5 |
| Total power | [kW] | 8,65 |
| Tool dimension (diameter x length) | [mm] | 180x180 |
| PLC | [-] | OMRON |
| Dimensions | [mm] | 2800x1800x1900 |
| Weight | [kg] | 6000 |
