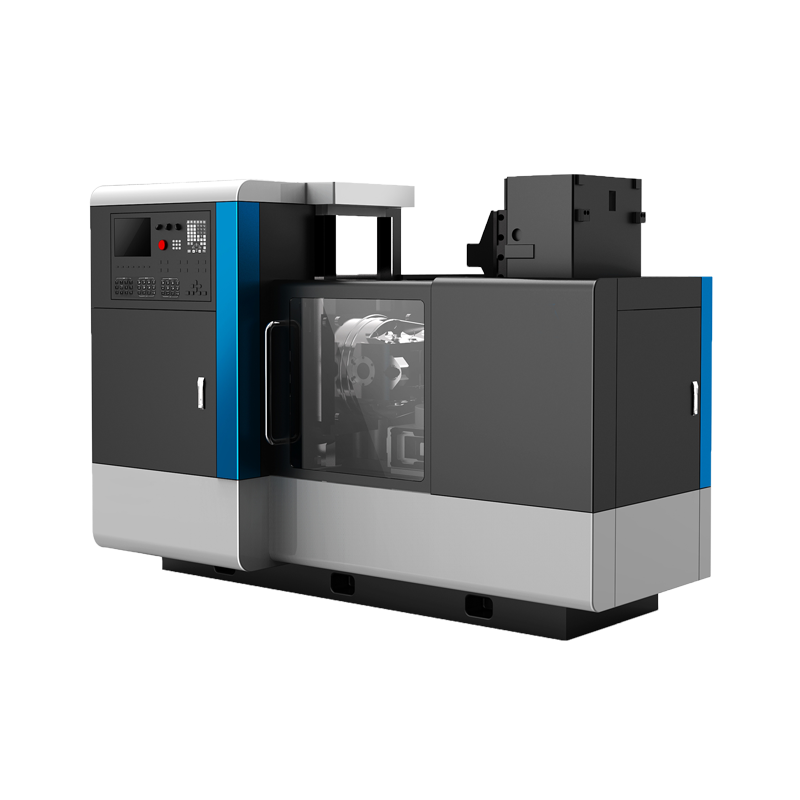

EUROMET FOZ200 CNC hobbing machine

Priced individually
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

The EUROMET FOZ200 CNC hobbing machine is an extension of the manual and semi-automatic FOZ series machines. FOZ CNC milling machines are available in versions with two (X,Y) or three (X,Y,Z) controlled axes and control systems: MITSUBISHI E60 as the basic one and, on request, FANUC or SIEMENS.

The EUROMET FOZ200 CNC hobbing machine is an extension of the manual and semi-automatic FOZ series machines. FOZ CNC milling machines are available in versions with two (X,Y) or three (X,Y,Z) controlled axes and control systems: MITSUBISHI E60 as the basic one and, on request, FANUC or SIEMENS.

Standard equipment:
  • Mitsubishi CNC control
  • CNC controlled X + Z or X + Y + Z axes
  • Tool pins
  • Shift wheels
  • Safety cover
  • PLC driver
  • Hydraulic system and lubrication system
  • Automatic chip conveyor
  • Air conditioning of the control cabinet
  • Equipment for machine installation
  •

Optional equipment (for an additional fee):
  • Hydraulic automatic clamp
  • Oil cooler
  • Siemens, Fanuc control

Technical data Unit Value
Module [mm] 5
Workpiece diameter [mm] 200
Helix angle [°] +/- 45
Distance between the spindle axis and the table surface [mm] 260 - 490
Distance between the spindle axis and the table axis [mm] 30 - 175
Distance between the steady axis and the table surface [mm] 350 - 600
Table speed [rpm/min] 20 (40)
Spindle speed [rpm/min] 80 - 400
Total power [kW] 14,8
Tool dimension (diameter x length) [mm] 140x180
Motor power for axial travel [kW] 7,5
Z axis accelerated speed [mm/min] 900
X axis accelerated speed [mm/min] 900
Y axis accelerated speed [mm/min] 900
Dimensions [mm] 2400x2200x1800
Weight [kg] 5800
