Pipe and section bending machines - without mandrel

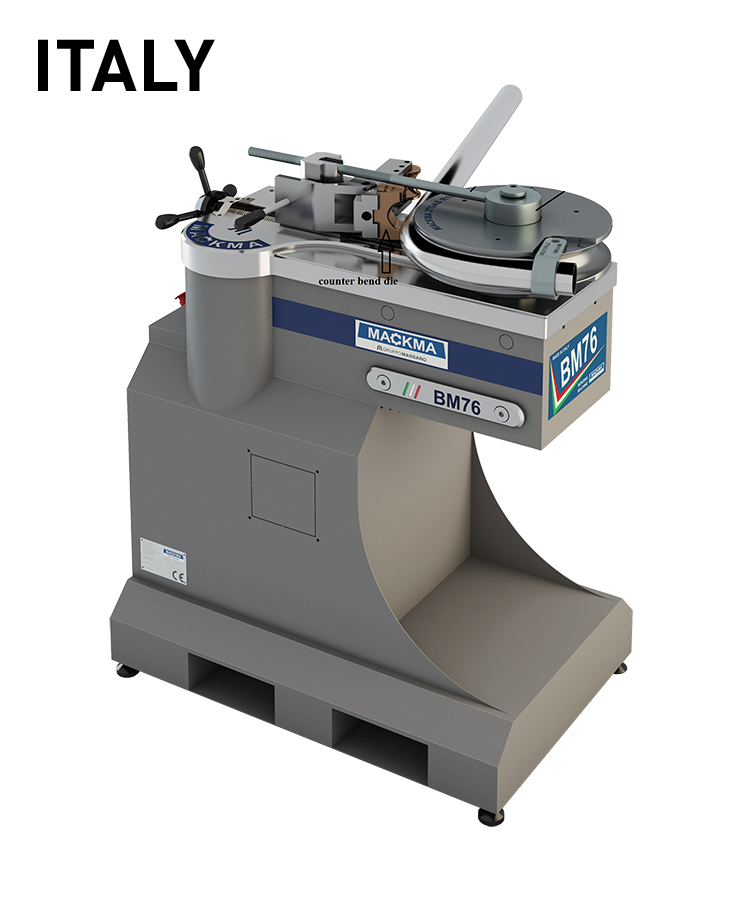

TUBE BENDER - without mandrel MACKMA BM76, BENDING Ø 70 - 76M
74 198,25 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
The MACKMA BM 76 is the only mandrelless tube bender that allows both right and left bending. Another feature that makes the BM76 unique is its ability to be combined with a deburrer for the inner and outer edges of tubes. Its innovative design allows it to bend pipes up to 76 mm in diameter with a wall thickness of 3 mm with a minimum radius of 3xOD and a maximum radius of 380 mm.
Quantity
Add to cart
CONDITION: UNUSED
YEAR OF PRODUCTION: 2018
PRICE: 16 343,00 €
The MACKMA BM 76 is the only mandrelless tube bender that allows both right and left bending. Another feature that makes the BM76 unique is its ability to be combined with a deburrer for the inner and outer edges of tubes. Its innovative design allows it to bend pipes up to 76 mm in diameter with a wall thickness of 3 mm with a minimum radius of 3xOD and a maximum radius of 380 mm.
Manual clamping of the tube controlled by a knob with a counter - to guarantee the highest degree of repeatability. An easy-to-use control panel built into the body. Allows you to save up to 99 programs.
The potentiometer cooperating with the inverter regulates the bending speed depending on the pipe diameter and wall thickness. The design of the machine allows you to create complex bends that require the pipe to pass under the work plate. The modular construction of the bending die pin makes it possible to use third-party tools.
The bending machine is driven only by an electric motor - without hydraulic elements. This results in low noise levels and low operating costs.
The manufacturer uses high-quality Italian components that ensure long durability of the machine (2-year warranty).
Standard equipment:
- easy-to-use EXPERT control panel built into the body. Allows you to save up to 99 complete bending processes.
- manual pipe clamp controlled by a knob with a counter
- bending speed regulated by means of an inverter cooperating with a potentiometer
- English user manual
- 24-month warranty
Optional equipment (payable additionally):
- a set of tools for bending left and right (bending die, pressure die and sliders)
- 3 meter pipe positioner
- 6 meter pipe positioner
- holder for tools from other manufacturers
- mobile control panel
- precise wheels for free movement of the machine
- possibility of connecting the machine with a device for deburring the inner and outer edge of the pipe
| Technical data | Unit | Value |
|---|---|---|
| Outer diameter of the pipe | [mm] | 76 |
| Bending radius | [mm] | 370 |
| Black steel pipe diameter when bent with a tensile force of 42 kg / mm2 | [mm] | 76 |
| Pipe diameter for bending carbon steel with a tensile force of 35 kg / mm2 | [mm] | 70 |
| Pipe diameter when bent made of stainless steel with tensile strength (AISI 304/316) 65 kg / mm2 | [mm] | 70 x 4 |
| Torque | [N/m] | 10 000 |
| Working plate height h1 | [mm] | 315 |
| Working plate length l1 | [mm] | 384 |
| Bending angle | [°] | 180 |
| Head rotation speed | [rpm] | 1,8 |
| Bending direction | [-] | prawy i lewy |
| Supply voltage | [V] | 380/400 |
| Installed power | [kW] | 1,8 |
| Temperature range during operation | [°] | 0-50 |
| Device dimensions | [mm] | 700 x 1120 x 972 |
| Weight | [kg] | 306 |
Media
Beztrzpieniowa giętarka do rur Mackma BM 76 XS
