DMTG CLS-20 CNC LATHE

Priced individually
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

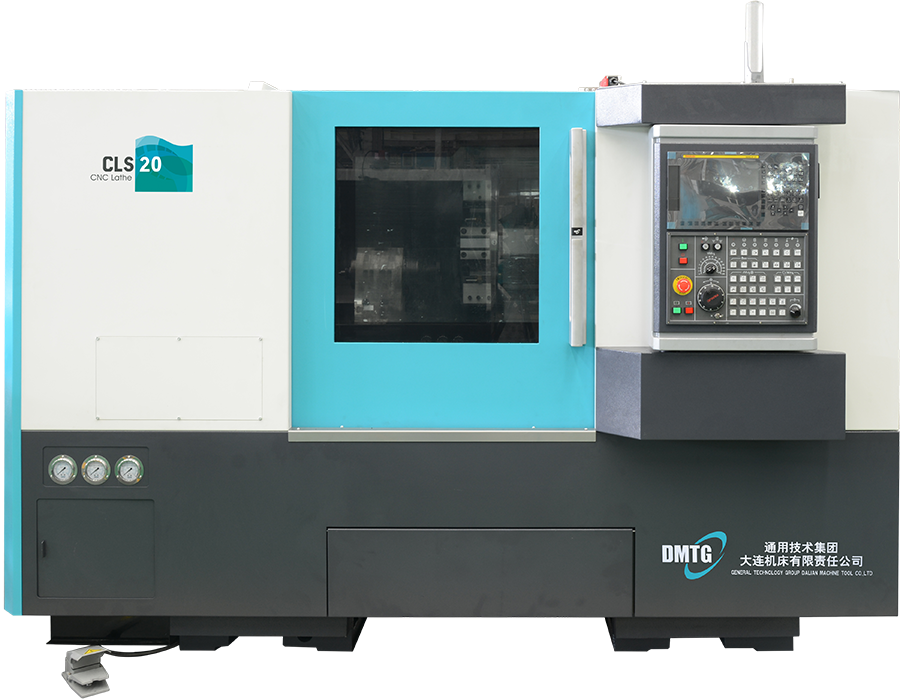

The DMTG CLS-20 CNC lathe is a two-axis, coordinated semi-closed loop CNC lathe. The main body of the machine is fully cast, with the bed guide system inclined at an angle of 45 degrees, which ensures high rigidity. The control system uses FANUC 0i-TF, GSK and other systems, as well as AC servo drives. It is able to perform various turning processes on axial elements in the range of φ260mm and disc-type elements in the range of φ300mm.

The DMTG CLS-20 CNC lathe is a two-axis, coordinated semi-closed loop CNC lathe. The main body of the machine is fully cast, with the bed guide system inclined at an angle of 45 degrees, which ensures high rigidity. The control system uses FANUC 0i-TF, GSK and other systems, as well as AC servo drives. It is able to perform various turning processes on axial elements in the range of φ260mm and disc-type elements in the range of φ300mm.
  • Equipped with systems such as Fanuc Oi-TF, GSK, with USB ports and a 10.4-inch color LCD display
  • High-strength cast iron bed
  • Parallel belt transmission
  • Wide linear guide, X - 35 mm \ 1.378", Z - 35 mm \ 1.378"
  • Servo motor connected directly to the lead screw, X - φ28 mm \ φ1.102", Z - φ36 mm \ φ1.417"
  • Higher rapid traverse speed, X - 20 m/min \ 787 ipm, Z - 24 m/min \ 945 ipm
  • Machining with high and low guide rail beds avoids secondary positioning and clamping, making the machining process simpler, highly precise and more stable
  • Rear chip discharge, side chip discharge

Standard equipment:
  • 8-position hydraulic tool tower
  • nsk spindle bearings and x/z axis bearings
  • x/z ball screws and linear guides
  • Hydraulic chuck without through hole
  • Hydraulic tailstock
  • Chip tub
  • Automatic lubrication system
  • Standard tool kit
  • CE certificate
  • User manual in English
Optional equipment (additionally paid):
  • 12-position hydraulic tool tower
  • x/z thk ball screws and thk linear guide
  • Through-hole hydraulic chuck
  • Device for pre-setting tools
  • Air conditioner
  • Oil mist separator
  • Bar feeder
  • Chain chip conveyor
  • Automatic doors

Technical data Unit Value
Turning diameter over bed [mm] 500
Rotation speed [rpm/min] 4500
Spindle tip [-] A2-6 / Opcja: A2-8
Spindle flight [mm] F62 (F87)
X / Z accelerated feed [m/min] 165/500
Extend the tailstock quill [mm] 460
Tailstock sleeve diameter [mm] 80
Tailstock taper [-] MT4
Main spindle motor [kW] 11/15
Longitudinal feed [mm/rpm] 0 - 5000
Max. turning diameter (shaft) [mm] 260
Max. turning diameter (disc) [mm] 300
Max. turn length [mm] 450 (350)
Guide type [-] Prowadnica liniowa
Handle size [*] 8 (10)
Max. rod capacity (equipped with through-hole hydraulic chuck) [mm] F51 (F74)
Tower type and number of tools [-] Hydrauliczna wieża 8-pozycyjna (opcja: wieża 12-pozycyjna)
Tool shank size [mm] 25x25
Indexing time (adjacent/farthest) [s] 0,45/1,2 (0,45/1,45 12-pozycyjna wieża)
Tailstock step [mm] 130
Positioning accuracy of the X/Z axis (C, Y) [mm] 0,008/0,008
Repeatability accuracy of the X/Z axis (C, Y) [mm] 0,004/0,004
External dimensions L x W x H [mm] 2900×2870×2000 (Tylny przenośnik wiórów) 3900×1740×2000 (Boczny przenośnik wiórów)
Net weight [kg] 4000
