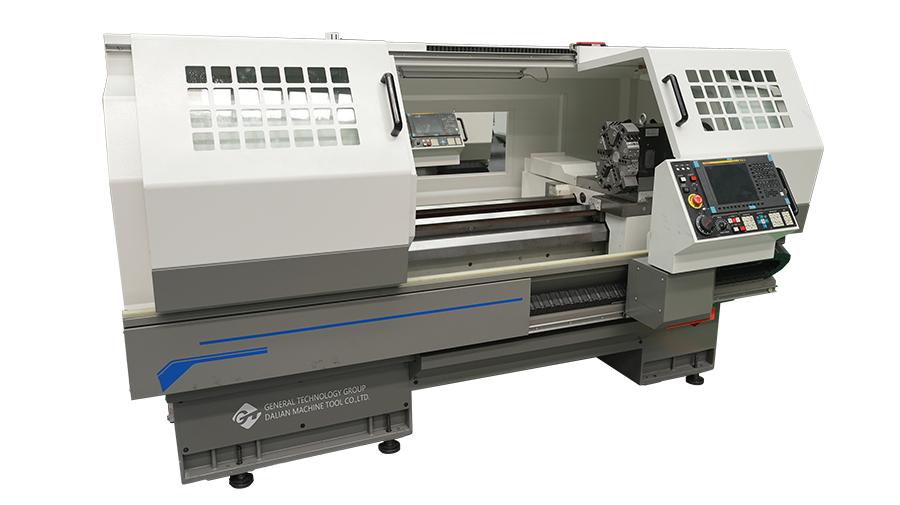

DMTG CKE6140i x 750 CNC LATHE

Priced individually
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

The DMTG CKE6140i x 750 cnc lathe is a flat bed machine controlled in both the longitudinal (Z axis) and transverse (X axis) directions. It is able to automatically perform machining processes of various details such as shafts and discs, including internal and external cylindrical surfaces, conical surfaces, circular arc surfaces, end faces, grooves, chamfers, etc. In addition, it can also perform turning operations for metric elements such as straight threads, face threads, straight inch threads and tapered threads. The lathe is suitable for the production of a variety of products in medium and small batches, perfectly coping with the machining of complex and precise parts.

The DMTG CKE6140i x 750 cnc lathe is a flat bed machine controlled in both the longitudinal (Z axis) and transverse (X axis) directions. It is able to automatically perform machining processes of various details such as shafts and discs, including internal and external cylindrical surfaces, conical surfaces, circular arc surfaces, end faces, grooves, chamfers, etc. In addition, it can also perform turning operations for metric elements such as straight threads, face threads, straight inch threads and tapered threads. The lathe is suitable for the production of a variety of products in medium and small batches, perfectly coping with the machining of complex and precise parts.
Machine Features:
  • The machine was designed using finite element analysis, which theoretically analyzes and calculates the overall layout and key structures of the machine. This results in high stiffness, minimal thermal distortion, low spindle temperature rise, low vibration and the ability to withstand high cutting torque. These features enable the machine to adapt to cutting with heavy loads and achieve a globally advanced design concept.
  • The key elements of the machine, such as the CNC system and spindle bearings, come from renowned domestic and foreign manufacturers, which ensures high reliability of the machine.
  • Advanced design combined with comprehensive process measures ensure that the machine has high machining accuracy and long-term precision. The consistency of the workpieces is excellent, achieving stable precision levels ranging from IT6 to IT7, with surface roughness up to Ra1.6 μm.
  • Key parts of the machine, including the bed, headstock housing, saddle and tailstock, are machined using advanced equipment. The use of top-class processing equipment guarantees high precision of machine elements, which is necessary to ensure various technical parameters of the machine.
  • The machine uses an integrated mechanical and electrical design, characterized by a compact and rational layout that ensures user-friendly and pleasant operation, as well as ease of maintenance.
  • The design of the machine is modular, which allows for various configurations depending on the user's requirements (e.g. different tool heads, tailstocks, systems, etc.).

Standard equipment:
  • 3-jaw manual chuck
  • Hand horse
  • Fanuc 0i-TF (5) Plus system
  • 4-position knife holder
  • Manual speed change
  • CE certificate
  • User manual in English
Optional equipment (additionally paid):
  • 4-jaw manual chuck
  • 6/8 tool head
  • Hydraulic tailstock
  • Movable rest
  • Eyepiece
  • GKS system
  • Automatic speed change
  • Hydraulic chuck
  • Siemens system

Technical data Unit Value
Turning diameter over bed [mm] 400
Turning diameter over slide [mm] 200
Workpiece length [mm] 750
X-axis travel range [mm] 240
Z axis travel range [mm] 580
Rotation speed [rpm/min] 3500
Spindle tip [-] D8
Spindle flight [mm] 40
Tailstock sleeve diameter [mm] 63
Tailstock taper [-] MT4
Main spindle motor [kW] 5,5
Handle size [*] 165
Tool shank size [mm] 20x20
Tailstock step [mm] 140
Positioning accuracy of the X/Z axis (C, Y) [mm] 0,018/ 0,021
Repeatability accuracy of the X/Z axis (C, Y) [mm] 0,006/0,008
External dimensions L x W x H [mm] 2300 x 1480 x 1520
Net weight [kg] 1850
