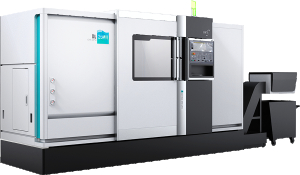

CNC LATHE DS-200 WITH AN SLANT BED
Priced individually
No rating
12 months of warranty
The DS-200 CNC lathe with an inclined bed is a very accurate and solid machine built for high efficiency and high machining accuracy. Increases metal removal rates, excellent component finish and high consistency quality.
DS series CNC turning centers are very accurate and solid machines built for high performance and high machining accuracy. They increase the metal removal rate, perfect workmanship and high consistency quality. The machines are designed according to a modular concept and a wide range of options is available for great versatility, from universal turning to complex part machining. It is the best choice for high performance turning operations.
Standard equipment:
- Fanuc 0i-TF control
- 3-jaw hydraulic chuck
- 8-position hydraulic tool head
- Chain chip conveyor
- Fanuc β servo motors
- Workspace cover
- Signal lamp
- Cooling system
- Halogen lighting
- Automatic lubrication system
- CE declaration of conformity
- User manual in English
Optional equipment (paid additionally):
- Siemens + ShopTurn control
- 6 ", 8", 10 "hydraulic chuck
- Air conditioning for the electrical cabinet
- VDI tool head
- Bar feeder
- Workpiece picker
- Oil separator
- MPG handwheel
| Technical data | Unit | Value |
|---|---|---|
| Turning diameter over bed | [mm] | 400 |
| Workpiece length | [mm] | 250 |
| X-axis travel range | [mm] | 120 |
| Z axis travel range | [mm] | 260 |
| Rotation speed | [rpm/min] | 5000 |
| Spindle tip | [-] | A2-5 |
| Spindle flight | [mm] | 46 |
| Tool size | [mm] | 20x20 |
| X / Z accelerated feed | [m/min] | 20/24 |
| Extend the tailstock quill | [mm] | 130 |
| Tailstock sleeve diameter | [mm] | 80 |
| Tailstock taper | [-] | MT4 |
| Main spindle motor | [kW] | 7,5 |
| External dimensions L x W x H | [mm] | 3720x3450x2052 |
| Net weight | [kg] | 3450 |
