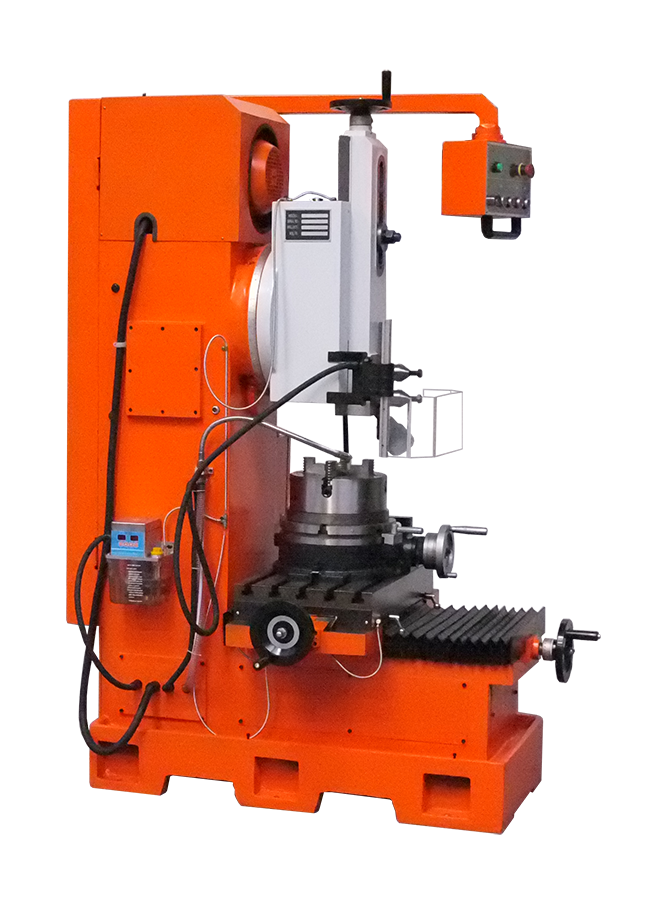

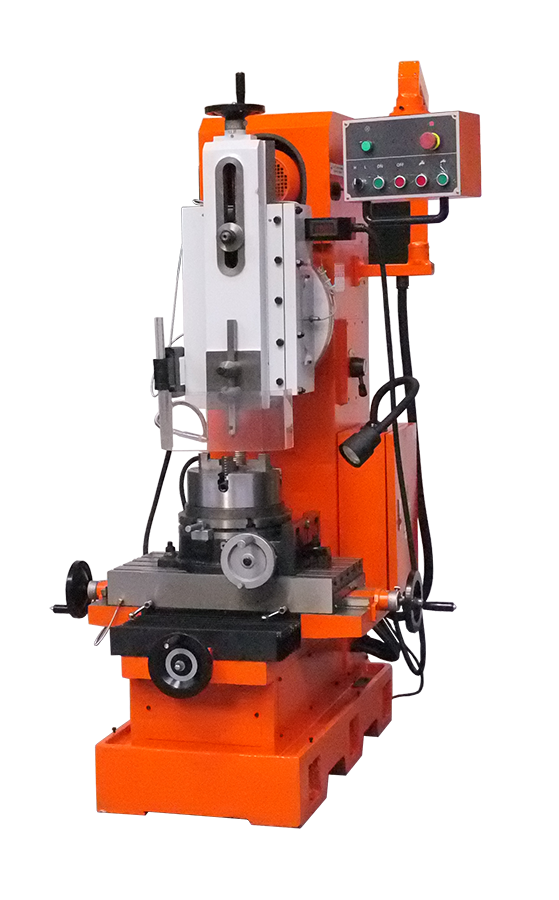

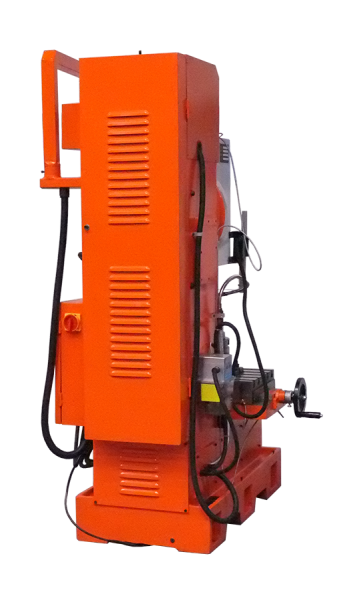

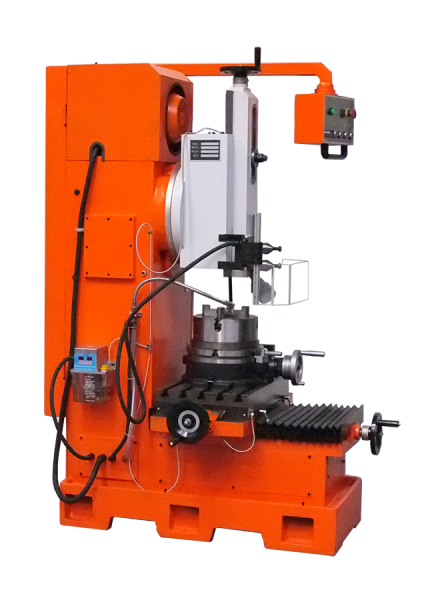

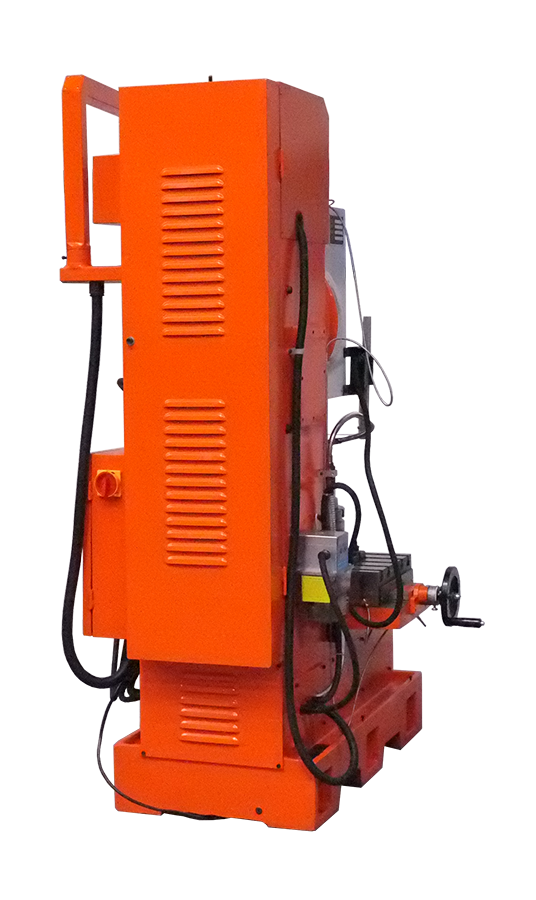

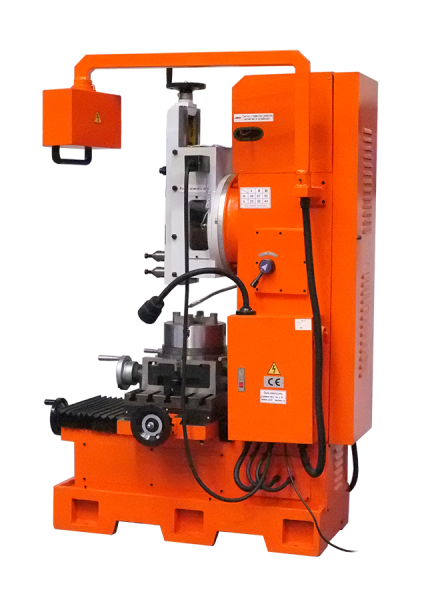

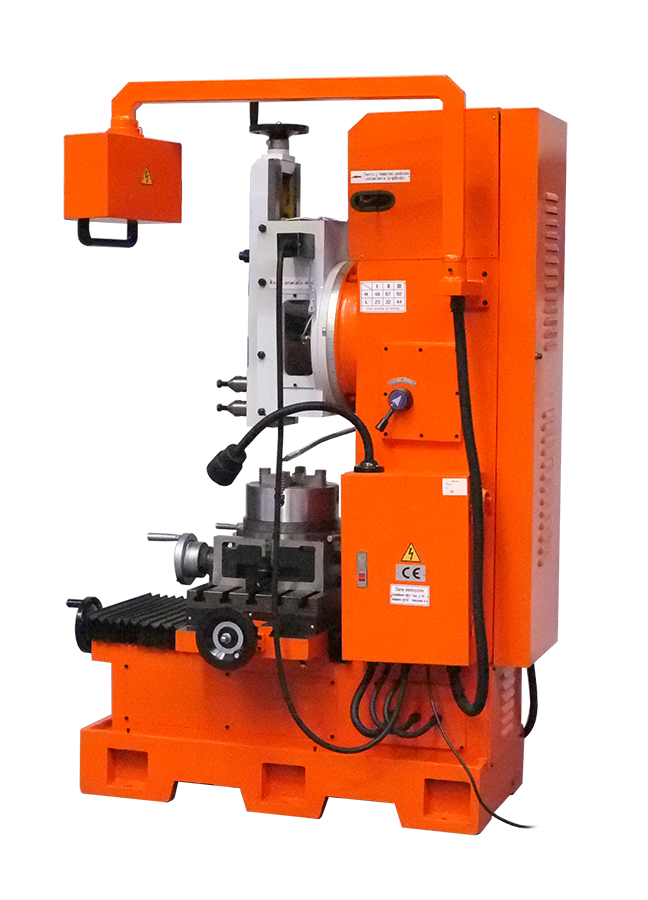

EUROMET DKS 160 slotting machine

55 100,00 zł 48 000,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The EUROMET DKS 160 slotting machine is mainly used for making keyways, spline grooves, coupling teeth, shaped holes, etc. The machine is started and stopped by a multi-plate clutch. The mechanisms of the vertical and horizontal feed as well as the rotation of the working table are equipped with safety devices. The machine has accelerated table feeds.

Quantity
Add to cart

The EUROMET DKS 160 slotting machine is mainly used for making keyways, spline grooves, coupling teeth, shaped holes, etc. The machine is started and stopped by a multi-plate clutch. The mechanisms of the vertical and horizontal feed as well as the rotation of the working table are equipped with safety devices. The machine has accelerated table feeds.

Main features of the device:
  • hardened and ground guides
  • tilting chiselling head in the range of +/- 30 °
  • built-in lubrication system
  • adjustable speed of strokes per minute - inverter
  • strokes per minute digital display

Standard equipment:
  • Lubrication system
  • Rotary table
  • Workspace lighting
  • 3-jaw self-centering chuck 9 "
  • Cooling system with chip guard
  • Tool box with a set of operating tools + rubber sheet guiding the accordion
  • User manual in English
  • CE declaration of conformity
Optional equipment (additionally payable):
  • A set of "slotting bars" (ø6x1 pcs.; Ø8x1 pcs.; Ø10x1 pcs.; Ø12x1 pcs.)
  • Set of pressure elements 5/8 "

Technical data Unit Value
Slotting length (ram stroke) [mm] 0 - 160
Number of strokes per minute (50Hz) [1/min] 22 - 92
Vertical positioning of the beam [mm] 160
Swivel angle of head [°] 45
The distance between the base of the beam and the surface of the worktable [mm] 320
Distance between the axis of the tool and the surface of the column [mm] 485
Working table diameter [mm] 350
Longitudinal travel of the working table (X) [mm] 360
Transverse travel of the working table (Y) [mm] 320
Main engine power [kW] 1,5
Device dimensions [mm] 1900x1300x1200
Weight [kg] 1000
