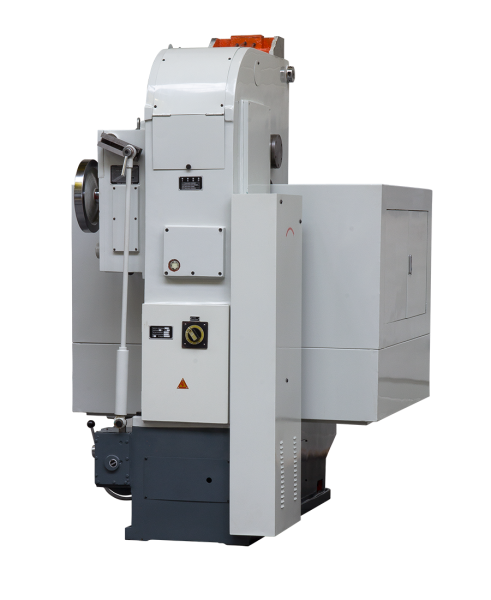

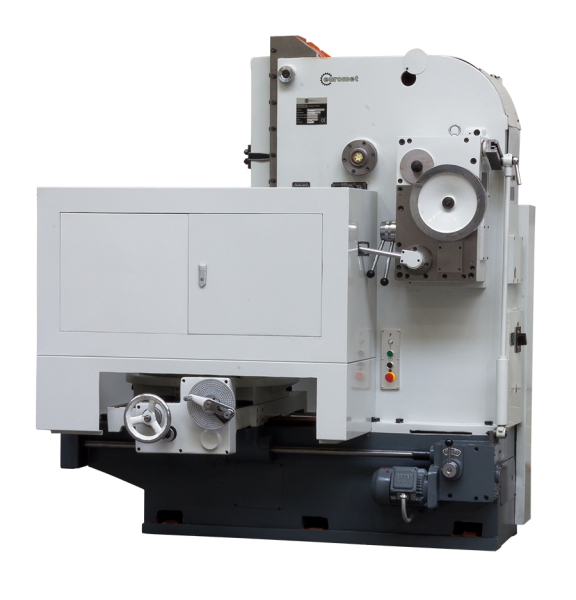

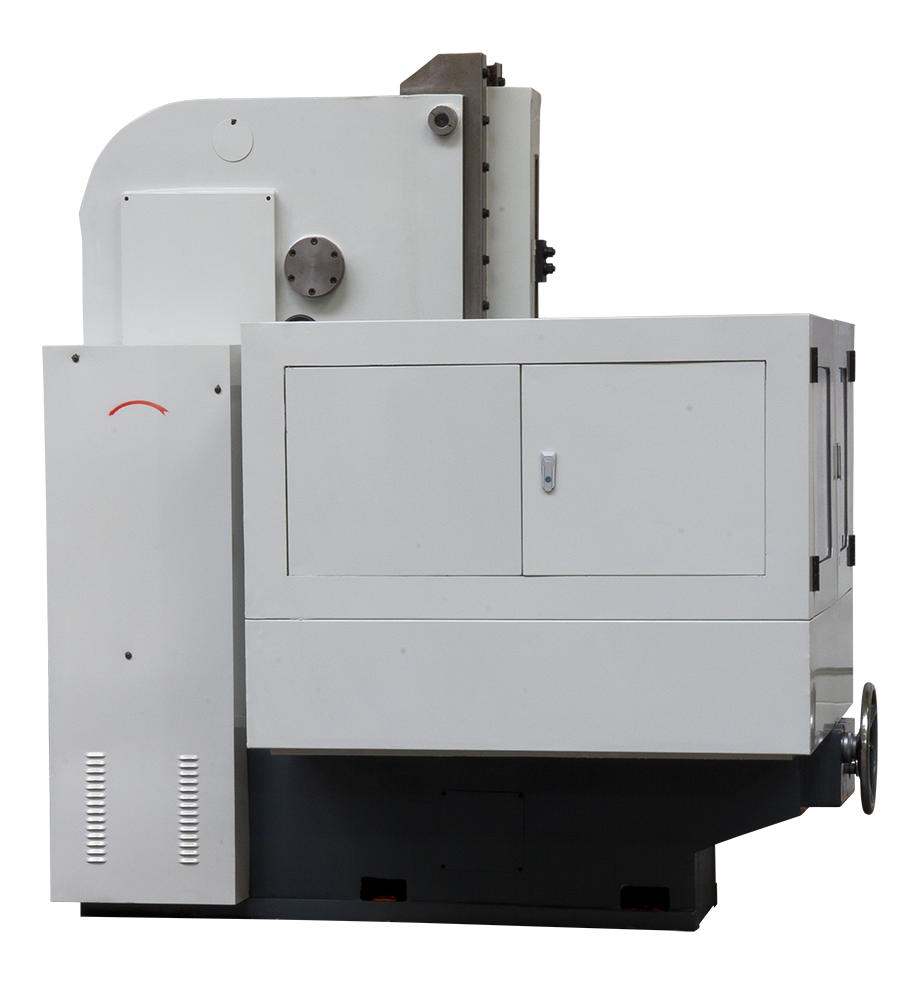

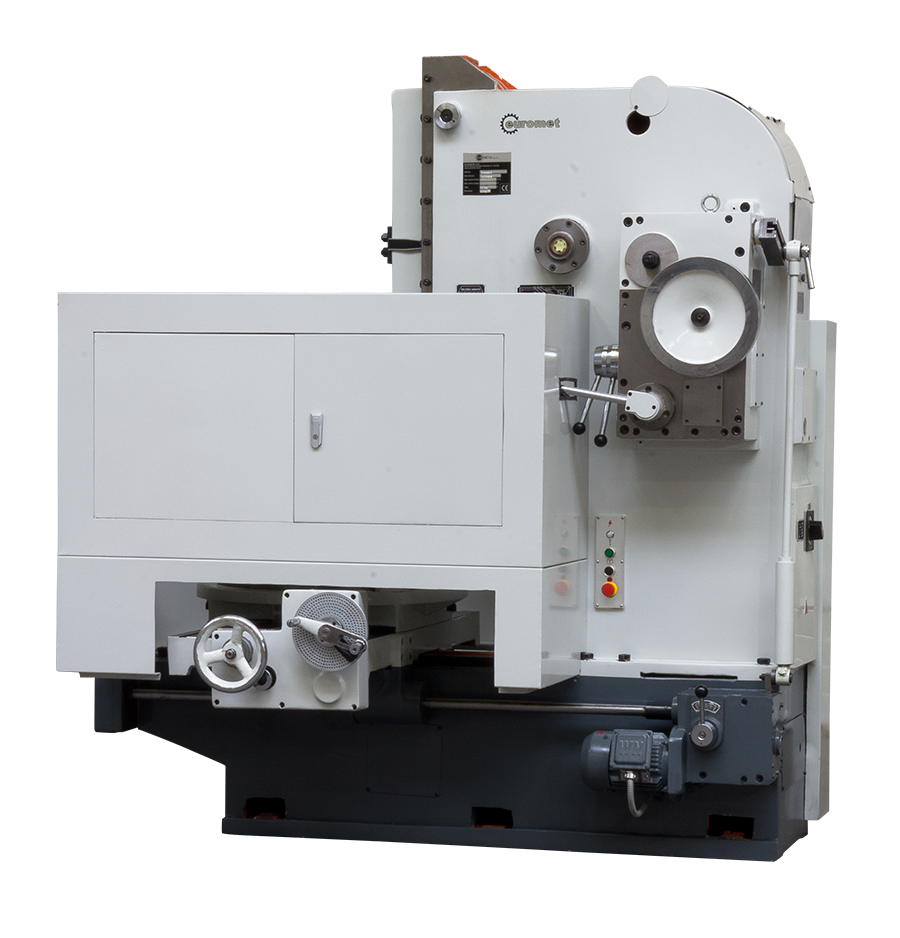

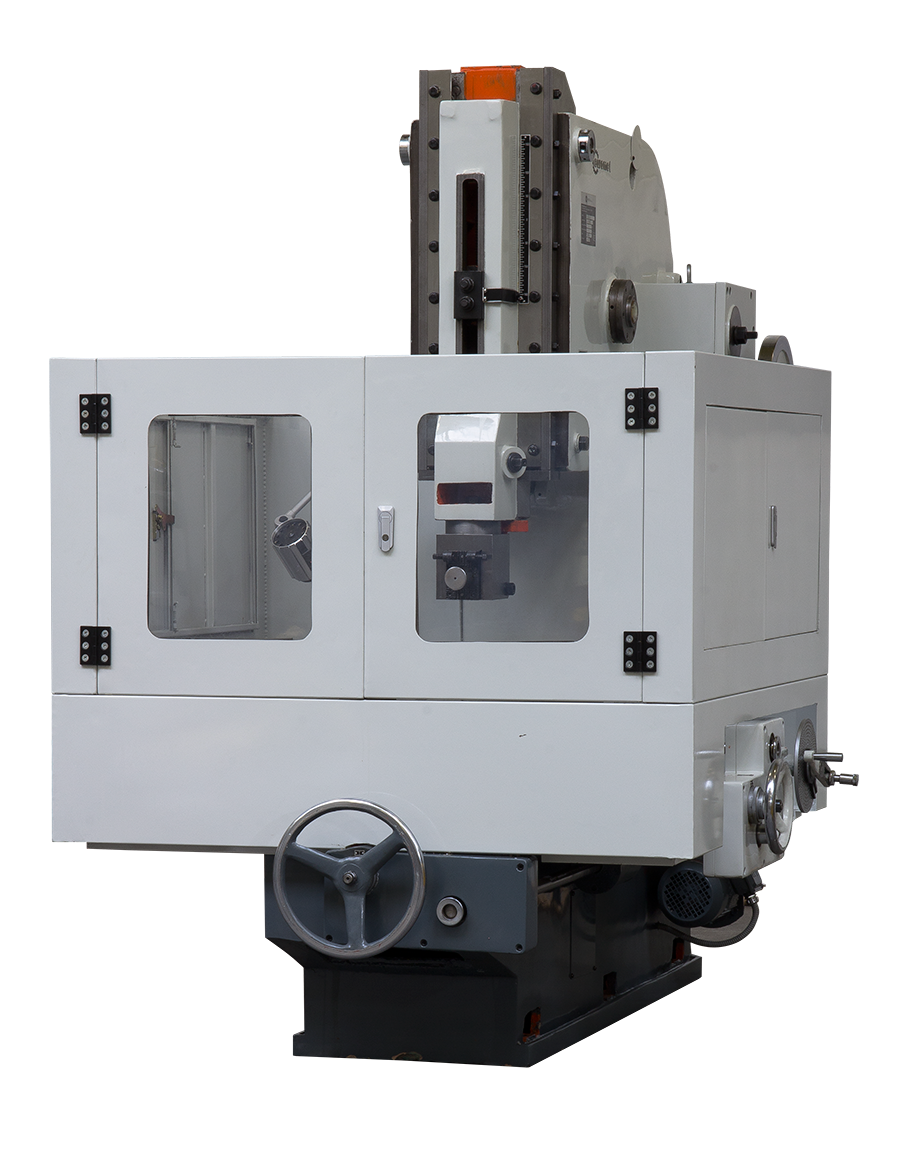

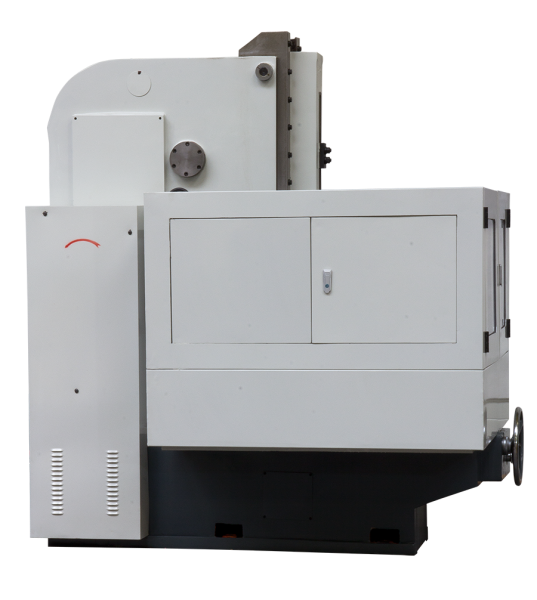

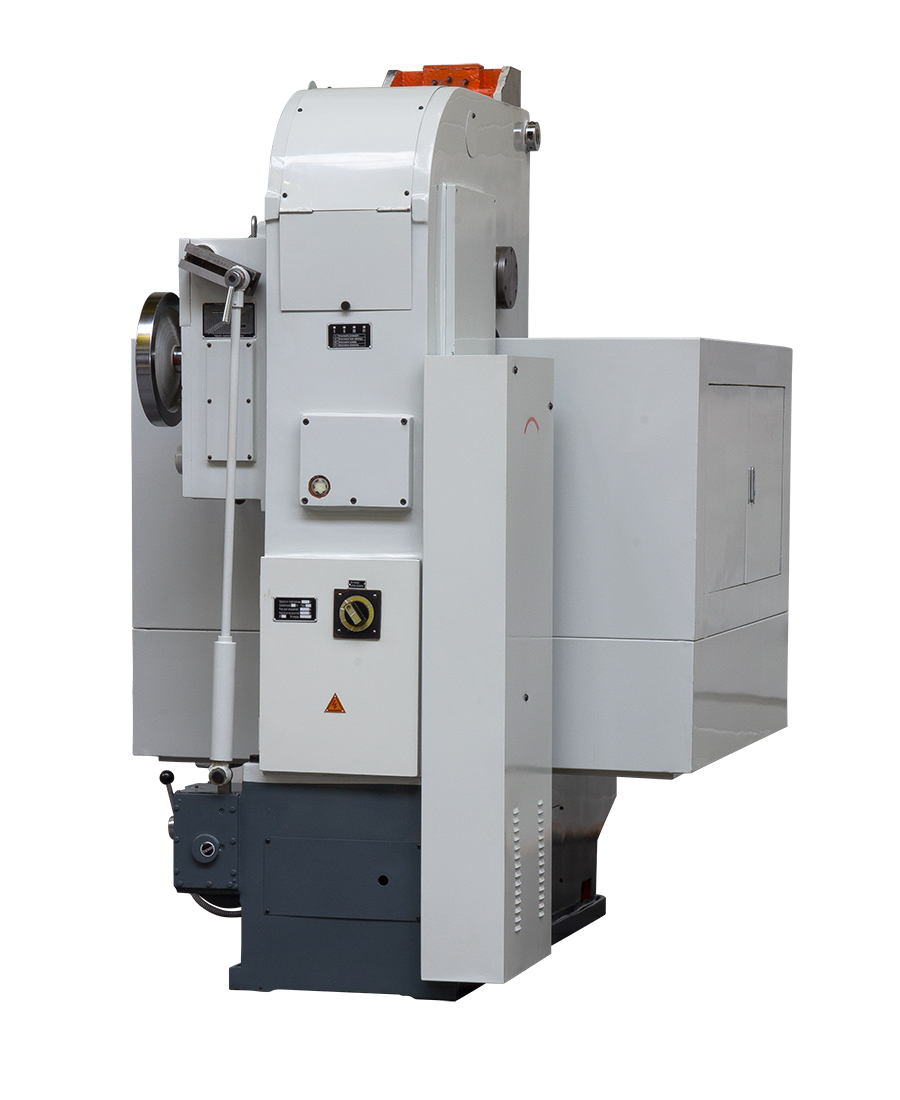

EUROMET DK 630E hydraulic slotting machin
Priced individually
No rating
12 months of warranty
The EUROMET DK 630E hydraulic slotting machine is designed for processing large and heavy workpieces. Slider stroke up to 630mm. Table diameter up to 1000mm. Table load up to 2000 kg.
The EUROMET DK 630E hydraulic slotting machine is designed for processing large and heavy workpieces. Slider stroke up to 630mm. Table diameter up to 1000mm. Table load up to 2000 kg.
Standard equipment:
- Work lighting
- Rotary table with a divider
- Leveling screws
- User manual in English
- CE compliant full workspace cover
- CE declaration of conformity
| Technical data | Unit | Value |
|---|---|---|
| Working table diameter | [mm] | 1000 |
| Longitudinal travel of the working table (X) | [mm] | 1000 |
| Transverse travel of the working table (Y) | [mm] | 660 |
| Main engine power | [kW] | 11 |
| Slotting length | [mm] | 630 |
| The value of the vertical slider adjustment | [mm] | 550 |
| Maximum load on the worktable | [kg] | 2000 |
| Distance from the post to the column | [mm] | 1189 |
| Distance from the table surface to the end of the slotting tool guides | [mm] | 880 |
| The width of the T-slot in the axis of the working table | [mm] | 22 |
| Rotation angle of the worktable | [°] | 360 |
| Slider tilt | [°] | 0-10 |
| The range of values for the longitudinal and lateral feed | [mm] | 0-3 |
| Rotary feed value range | [°] | 0-1 15’ |
| Maximum slotting power | [KN] | 19,6 |
| Main engine rotational speed | [rpm/min] | 960 |
| The power of the accelerated feed motor | [kW] | 1,5 |
| The speed of the accelerated feed motor | [rpm/min] | 940 |
| Weight | [kg] | 12000 |
