Swing-Beam hydraulic guillotines

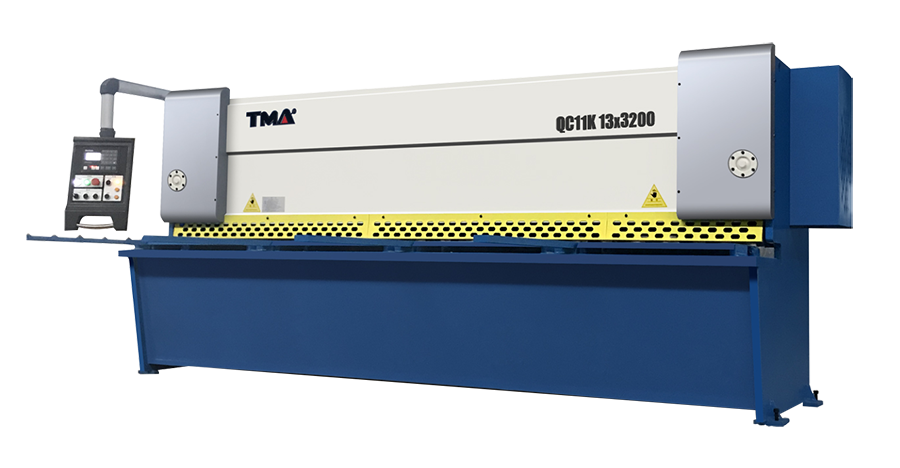

TMA QC11K-13X3200 hydraulic guillotine shears

118 496,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

TMA QC11K-13X3200 hydraulic guillotine shears are manufactured to the highest standards with strict quality control. The frame consists of a heavy-duty, solid welded steel construction for maximum rigidity and performance. Standard controls include electro-hydraulically controlled variable rake. 4-blade knives with high carbon content and high quality D2 chrome.

TMA QC11K-13X3200 hydraulic guillotine shears are manufactured to the highest standards with strict quality control. The frame consists of a heavy-duty, solid welded steel construction for maximum rigidity and performance. Standard controls include electro-hydraulically controlled variable rake. 4-blade knives with high carbon content and high quality D2 chrome.

Standard equipment:
  • DELEM DAC310 display
  • CE standard
  • Segmented Upper Blade - 1 set (two sides can be used)
  • Lower blade - 1 set (four sides can be used)
  • Front supports - 3 pcs.
  • Safety button
  • Rear and front safety supports
  • Marking the cutting line
  • foot pedal
  • Foundation pins
  • A set of tools for operating the machine
  • English manual
Optional equipment (payable additionally):
  • Pneumatic rear support
  • Ball screw + ruler
  • Cooler
  • ball table
  • light curtain
  • Photocell

Technical data Unit Value
Cutting width [mm] 3200
Sheet thickness (45 kg / mm2) [mm] 13
Back gauge [mm] 1000
The rake angle of the knife [°] 1-3
Number of upper sheet clamps [-] 18
Table height [mm] 930
Engine power [kW] 30
Cutting force [KN] 550
Dimensions [mm] 3855x1830x2390
Weight [kg] 9500
