Swing-Beam hydraulic guillotines

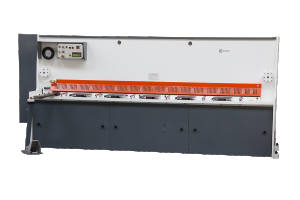

Hydraulic guillotine shears EUROMET HGO 31/6.35
Priced individually
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

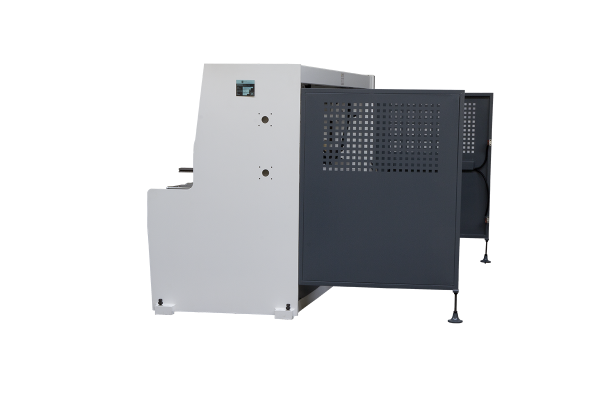

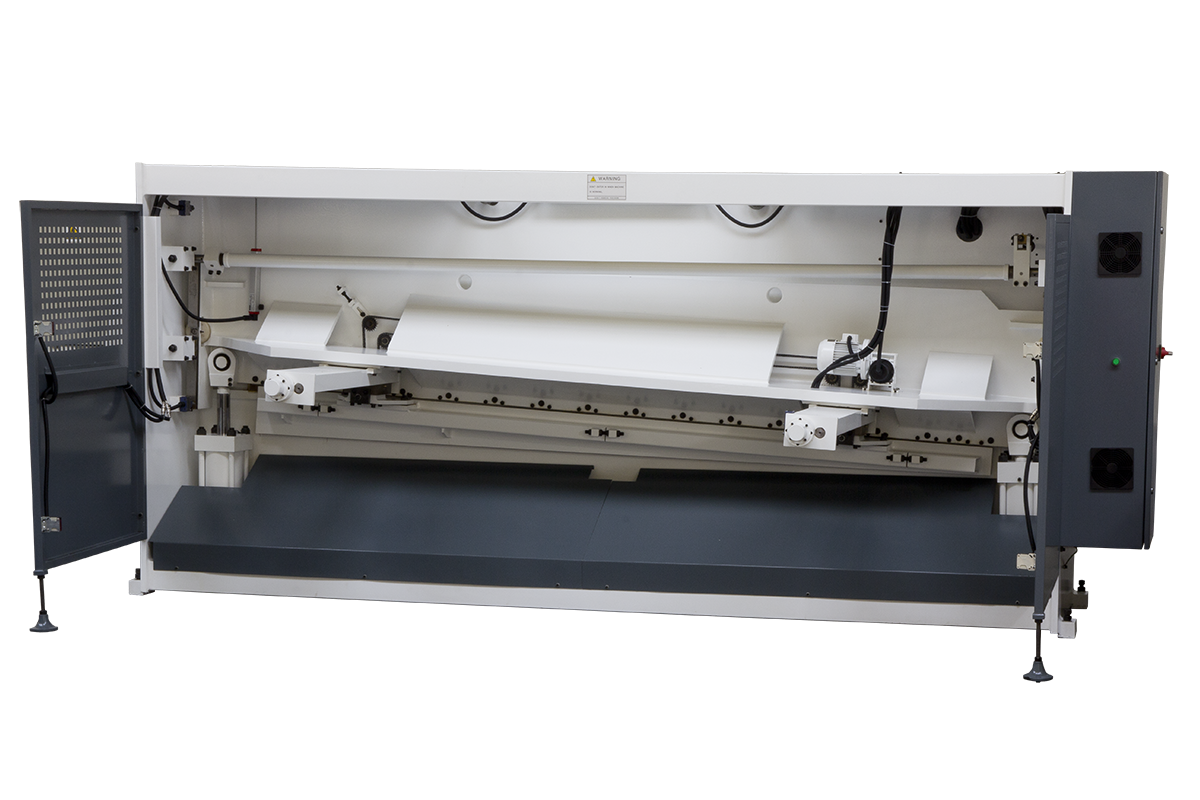

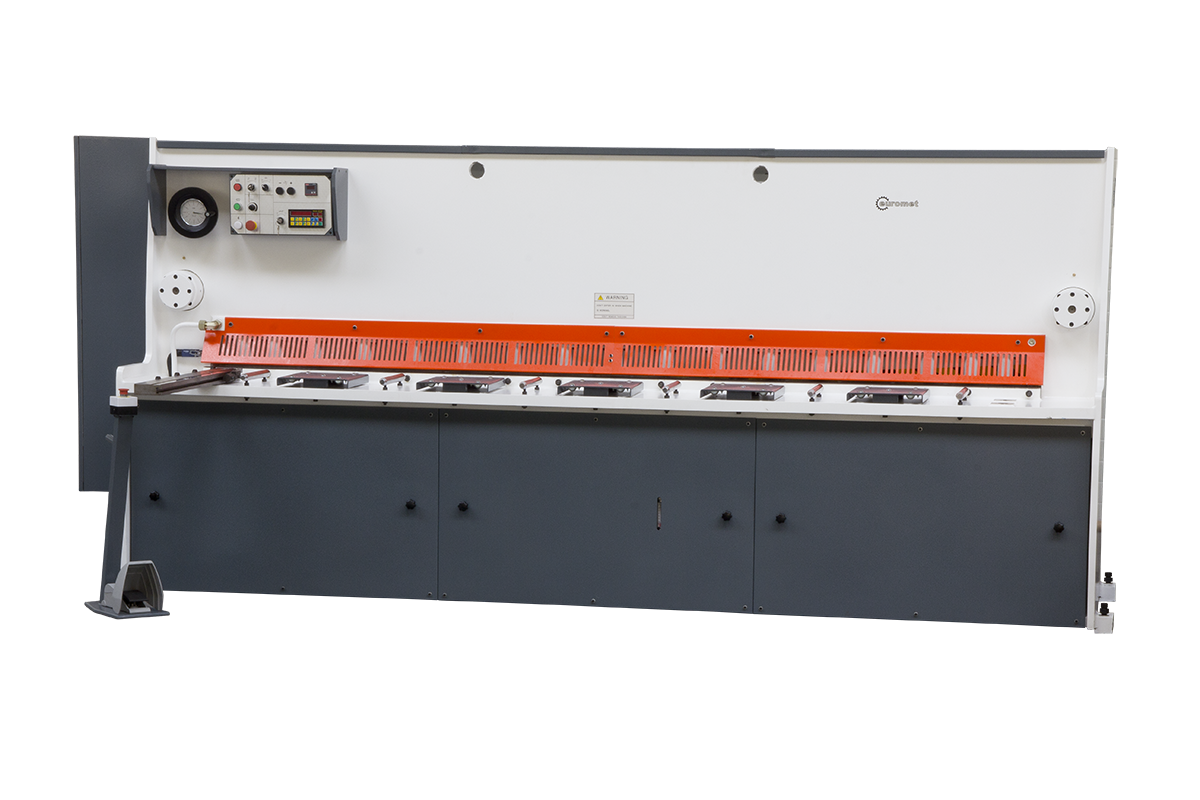

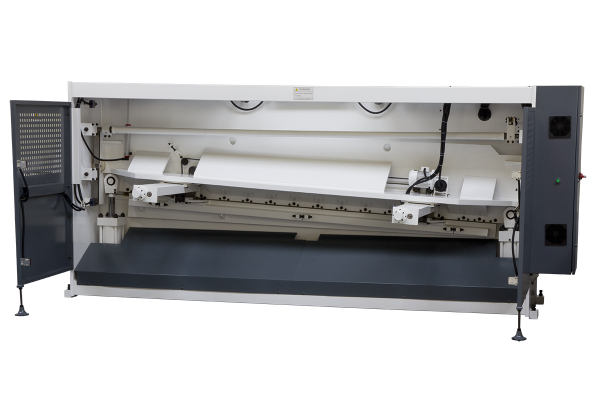

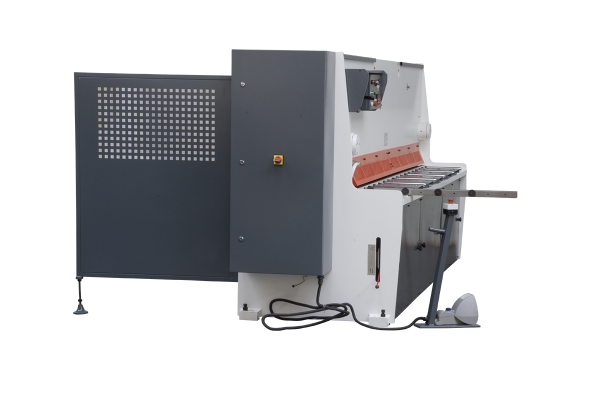

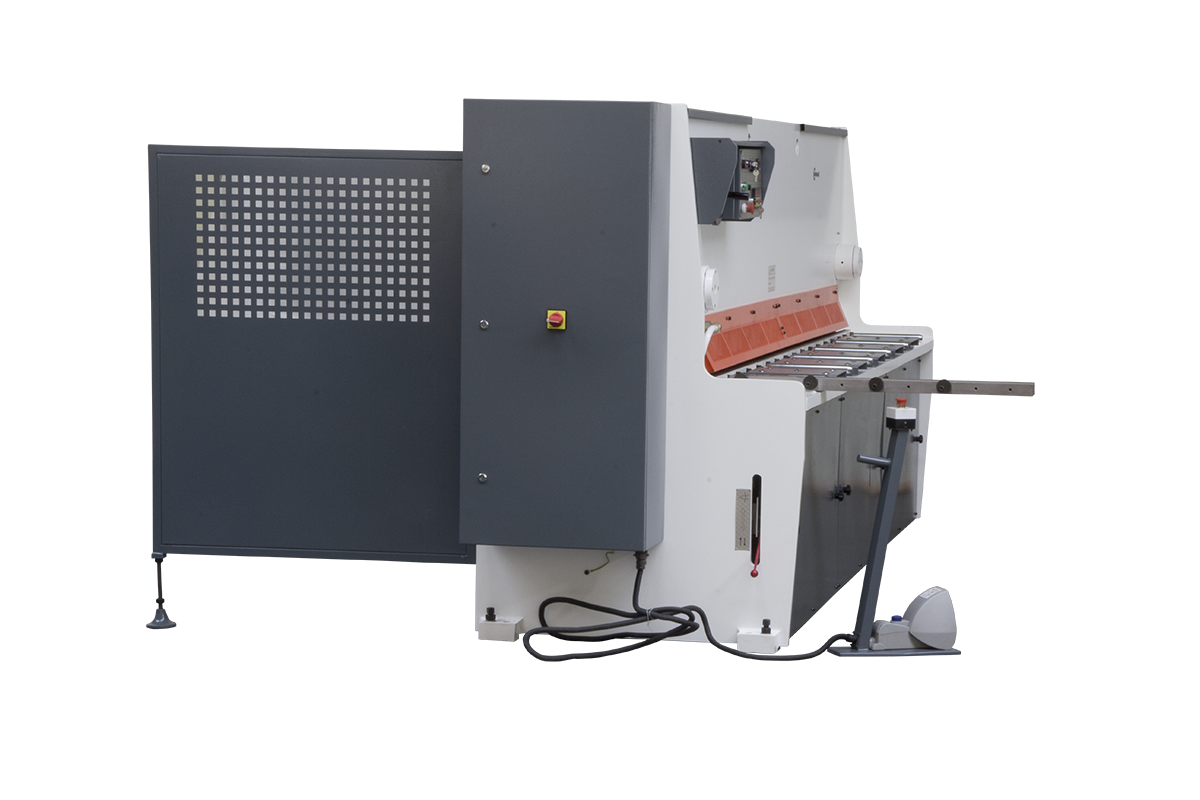

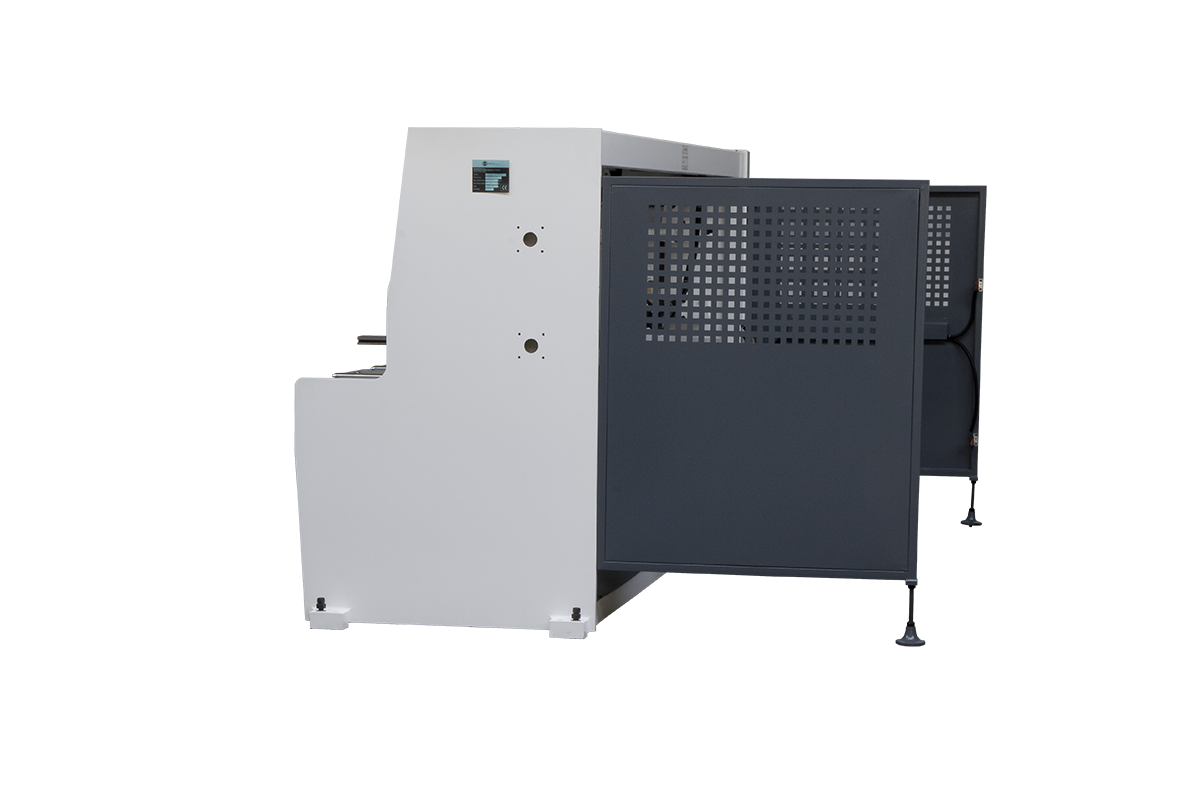

The EUROMET HGO 31/6.35 hydraulic guillotine shears are a machine where the knife is installed on two actuators on one side. It is possible to adjust the knife attack angle. Thanks to this function, the phenomenon of sheet metal twisting can be eliminated when cutting thin sheets and narrow strips. Machines based on documentation from the Belgian company LVD. Very good quality of machines and components used from European manufacturers Bosch Rexroth, Siemens, Telemechanique guarantee long, failure-free operation of the machine.
The EUROMET HGO 31/6.35 hydraulic guillotine shears are a machine where the knife is installed on two actuators on one side. It is possible to adjust the knife attack angle. Thanks to this function, the phenomenon of sheet metal twisting can be eliminated when cutting thin sheets and narrow strips. Machines based on documentation from the Belgian company LVD. Very good quality of machines and components used from European manufacturers Bosch Rexroth, Siemens, Telemechanique guarantee long, failure-free operation of the machine.
Machine Features:
- Adjustment of the knife attack angle with digital readout
- Adjustment of the gap between knives with a dial indicator
- Adjusting the position of the rear bumper
- Digital readout of the rear bumper position
- Rear bumper on ball screws
- Adjusting the length of the upper knife descent
- Cut counter
Standard equipment:
- Rear bumper powered by an electric motor
- Digital reading of the rear bumper position,
- Adjusting the gap between knives,
- set of knives,
- Ball guidance of the sheet metal on the table,
- Front bottom bracket with measure
- Securing the rear space with photocells,
- Foot switch
- Actuators pressing the sheet metal with covers
- Cutting line lighting
- User manual in English
- CE Declaration of Conformity
Optional equipment (paid additionally):
- NC control
- CNC control
- Thin sheet support system
| Technical data | Unit | Value |
|---|---|---|
| Cutting width | [mm] | 3100 |
| Sheet thickness (42 kg / mm2) | [mm] | 6.35 |
| Sheet thickness (60 kg / mm2) | [mm] | 3 |
| The number of beats per minute | [-] | 1245 |
| The rake angle of the knife | [°] | 0,5-3 |
| Number of upper sheet clamps | [-] | 17 |
| Oil tank capacity | [l] | 110 |
| Engine power | [kW] | 7,5 |
| Cutting force | [KN] | 145 |
| Dimensions | [mm] | 4045 x 1737 x 1750 |
| Weight | [kg] | 5500 |
