EUROMET WBH-M 10-80 4-roll rolling mill

Priced individually
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The EUROMET WBH-M 10-80 4-roll rolling mill is suitable for precise rolling of steel and stainless steel sheets. Both full curls and curves can be made on the coiler. Thanks to the appropriate setting of the bending rollers, it is also possible to roll the cones. All drives and roll feeds are performed hydraulically - working on the device is therefore easy and pleasant.

The EUROMET WBH-M 10-80 4-roll rolling mill is suitable for precise rolling of steel and stainless steel sheets. Both full curls and curves can be made on the coiler. Thanks to the appropriate setting of the bending rollers, it is also possible to roll the cones. All drives and roll feeds are performed hydraulically - working on the device is therefore easy and pleasant.

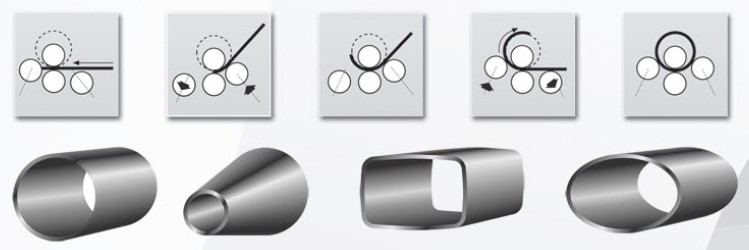

Machine winding capabilities

         Standard                    Standard                        Machine with NC                  Machine with CNC

Standard equipment:
  • Induction hardened rollers
  • The lower roller and side rollers move using a hydraulic system
  • Overload protection
  • Upper roller driven by a hydraulic motor and planetary gear (only upper roller driven)
  • Portable control panel
  • Digital readouts 3 pcs
  • Hydraulic release of the upper roller for easy removal of the workpiece
  • Central lubrication system
  • Device for making cones
  • Two working speeds
  • CE Declaration of Conformity
  • User manual in English
Optional equipment (paid additionally):
  • NC or CNC control
  • Central steady for making parts with large diameters
  • Hydraulic side supports
  • Polished rollers for special tasks
  • Smoothly adjustable winding speed

Technical data Unit Value
The length of the rolls [mm] 1050
Engine power [kW] 1,1+0,75
Rolling speed [m/min] 5
Number of rolls [pcs] 4
Sheet thickness for coiling diameter 5x the upper roll diameter (without pre-bend) [mm] 2,5
Sheet thickness for coiling diameter 1.5 x upper roll diameter (without pre-bend) [mm] 2
Sheet thickness for coiling diameter 5x upper roll diameter (initial bend) [mm] 2
Sheet thickness for coiling diameter 1.5 x upper roll diameter (pre-bend) [mm] 1,5
Center roll diameter [mm] 80
The diameter of the side rolls [mm] 80
Dimensions (LxWxH) [mm] 2350x950x960
Weight [kg] 1150
