EUROMET WBH-S 12x80 sheet metal rolling mill
91 560,00 zł net
No rating
12 months of warranty
The EUROMET WBH-S 12x80 sheet metal rolling mill is suitable for producing aluminum elements, producing ventilation ducts, tanks and various types of covers. High-strength rollers manufactured in accordance with SAE1050. Digital readouts and a cone rolling attachment are standard. The advantage of this machine is the ability to perform preliminary bending.
Quantity
Add to cart
The EUROMET WBH-S 12x80 sheet metal rolling mill is suitable for producing aluminum elements, producing ventilation ducts, tanks and various types of covers. High-strength rollers manufactured in accordance with SAE1050. Digital readouts and a cone rolling attachment are standard. The advantage of this machine is the ability to perform preliminary bending.
Minimum winding diameter 1.5 x (diameter) of the upper roll, with a material yield strength of 24kg/mm2 (e.g. carbon steel)
Standard equipment:
- 2 rollers driven by a planetary gear
- hydraulic feed of the lower and rear roller
- High-strength rollers manufactured in accordance with SAE1050
- hardened rolls
- machine frame made of welded plates
- mobile control panel
- attachment for rolling cones

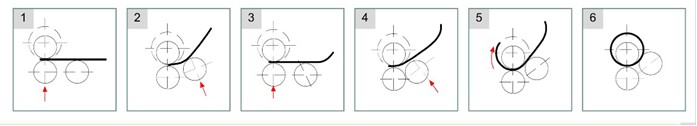

- pre-bend
- main engine with brake
- central lubrication system
- digital reading pcs 2
- hydraulic release of the upper roller
- user manual in English
- the machine is made in accordance with European Union standards and marked with CE
Optional equipment (paid additionally):
- polished rollers
- hydraulic upper sheet support
- hydraulic side supports
- two roller feed speeds
| Technical data | Unit | Value |
|---|---|---|
| The length of the rolls | [mm] | 1270 |
| Pre-fold x1.5 / x5 | [mm] | 1/1,5 |
| Sheet thickness x1.5 / x5 | [mm] | 1.5 - 2 |
| Top and bottom roll diameter | [mm] | 80 |
| The diameter of the bending roll | [mm] | 80 |
| Min. coiling diameter | [mm] | 120-400 |
| Engine power | [kW] | 1,1+0,75 |
| Rolling speed | [m/min] | 5 |
| Dimensions (LxWxH) | [mm] | 2570x950x960 |
| Weight | [kg] | 950 |
