KENT USA KGS 510 SD1 surface grinding machine

~~281 298,15 zł~~ 211 069,00 zł net

Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

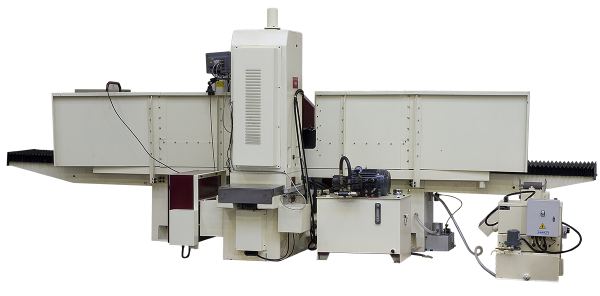

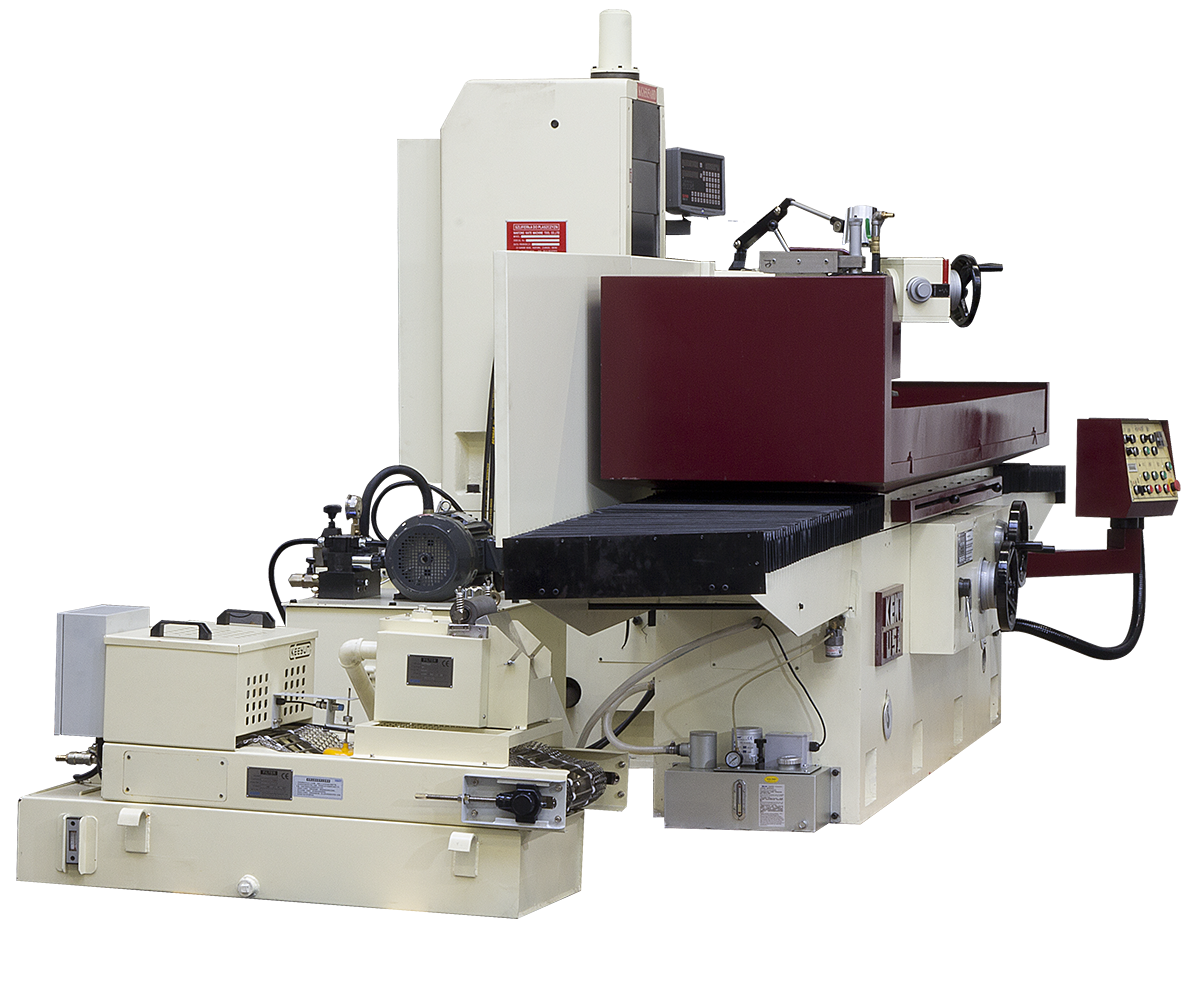

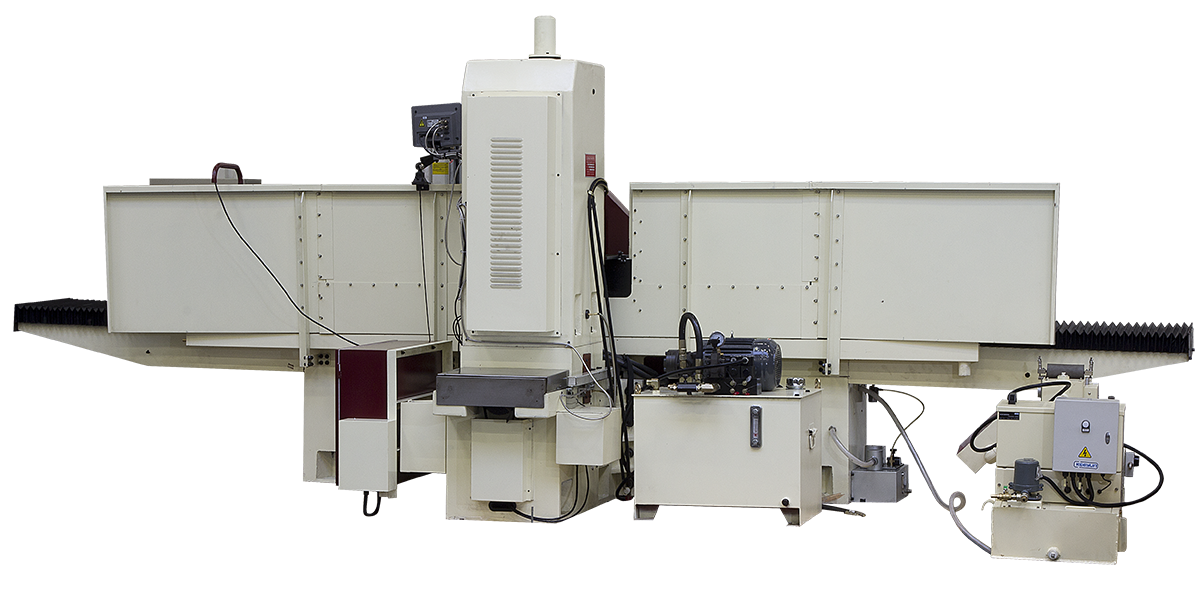

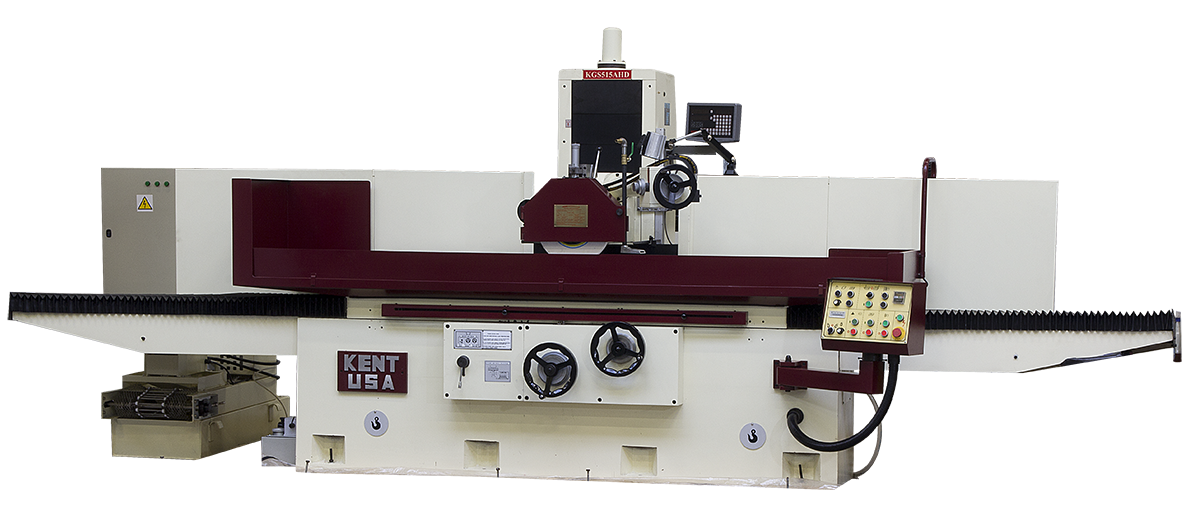

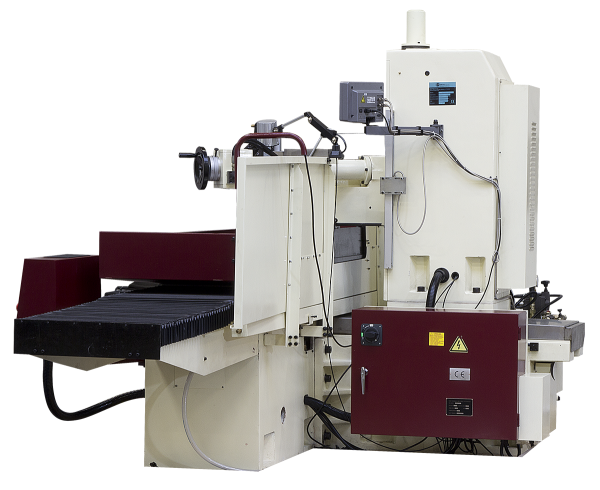

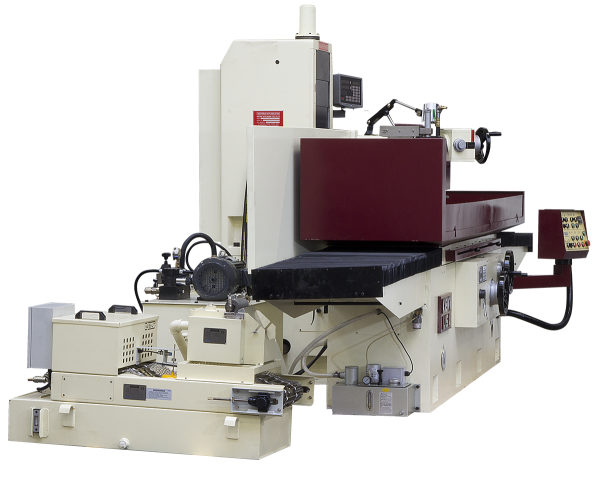

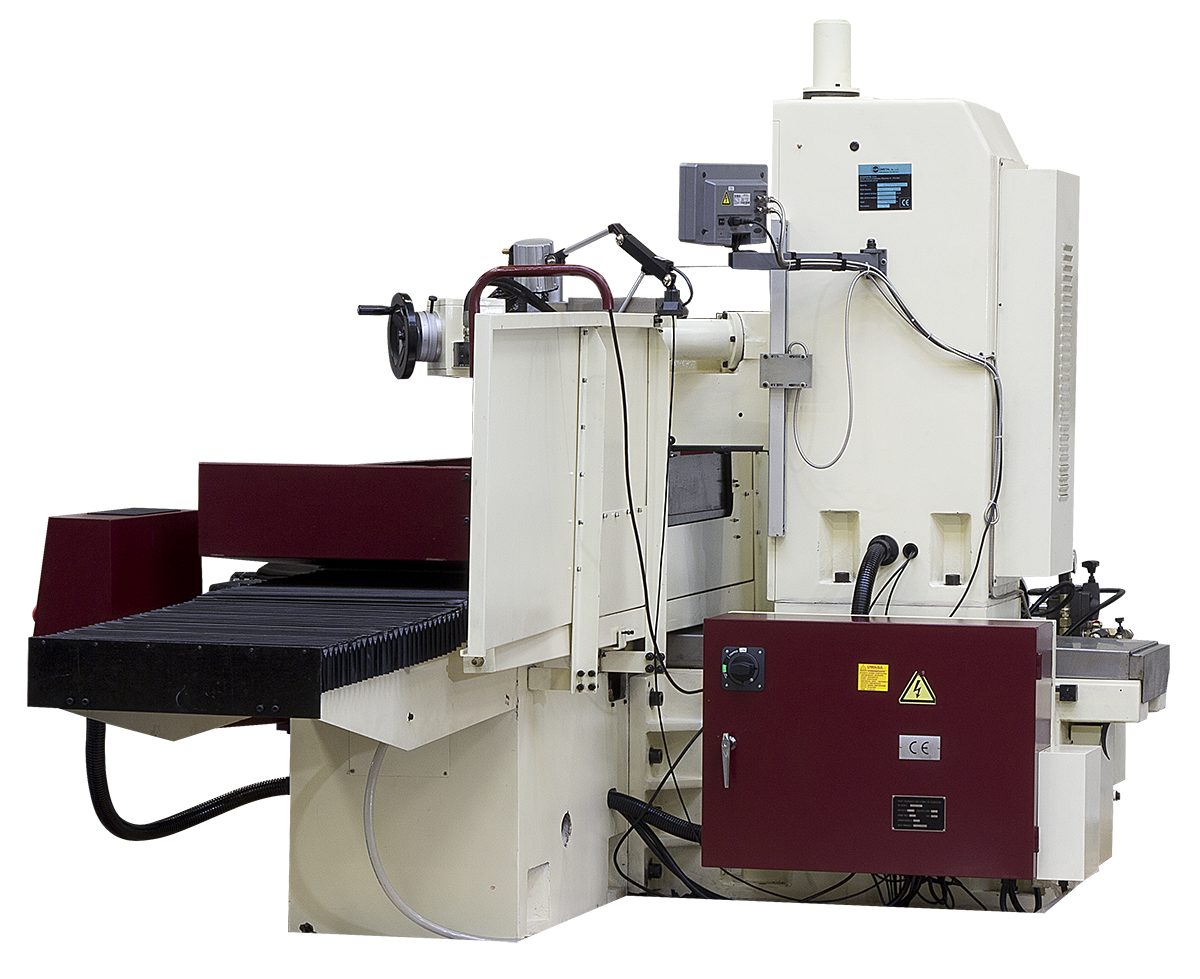

KENT USA KGS 510 SD1 automatic surface grinder equipped with a Siemens PLC controller and a Siemens servomotor responsible for controlling the vertical travel of the headstock (Z axis). Automatic vertical feed of 0.001-0.1mm/pass and 0.01 pitch for transverse feed (Y-axis) provide the ability to perform rough grinding, finishing and sparking in one work cycle. Z axis ball screw - Taiwanese production, Y axis ball screw - Chinese production.

Quantity

The KENT USA KGS 510 SD1 automatic surface grinder uses the Siemens + MPG PLC controller and is a machine with the ability to program a full cycle of detail grinding. Extended versions of KGS AHS grinders, equipped with a touch control panel, are available in two basic versions:

KGS SD1 - Grinding machine equipped with a PLC controller and a servomotor responsible for controlling the vertical travel of the headstock. Automatic vertical feed of 0.001-0.1mm/pass provides the ability to perform rough grinding, finishing and sparking out in one work cycle.

KGS SD2 - Grinding machine equipped with two servo motors that operate the vertical feed of the headstock and the transverse feed of the working table. Thanks to the automatic transverse feed with the possibility of a precise feed of 0.001mm/pass, it is possible to precisely grind the vertical edges of the detail, grooves or grooves.

Each KGS grinder, equipped with a hydraulic drive for longitudinal travel of the working table, can be available in the SD1 or SD2 version.

Small workpieces may be less well held by an electromagnetic table with a standard pitch. In order to ensure proper holding of small workpieces, an electromagnetic table with a smaller pitch (option) should be used.

Standard equipment:

Grinding wheel
Rear guard
Electromagnetic table
Automatic feed for 2 axes
MPG knob
Vertical and transverse feed ball screw
Microfeed
Static wheel balancer
CE declaration of conformity
User manual in English

Optional equipment (additionally payable):

Sustaining the table's operation in the event of a power failure - UPS
Device for parallel dressing of the grinding wheel
Device for dressing the grinding wheel at an angle
Basic magnetic separator
Magnetic separator with coolant pump and paper filter
Digital readout for 2 axes

Technical data	Unit	Value
The width of the table	[mm]	500
Table length	[mm]	1000
Longitudinal feed	[mm]	1140
Cross feed	[mm]	540
Distance from the table surface to the spindle axis	[mm]	590
Maximum table load	[kg]	700
T-slot for table clamping	[mm]	3 x 16
Table speed	[m/min]	5 - 25
Transverse travel per 1 division of the vernier scale	[mm]	0,02
Transverse travel per revolution of the wheel	[mm]	0,002
Transverse automatic feed per cut (SD1)	[mm]	0,5 – 12
Accelerated cross feed	[mm/min]	1250
Grinding wheel size	[mm]	355 x 40 x 127
Spindle rotation	[rpm/min]	0 - 1450
Feed per revolution of the MGP wheel	[-]	0,5
Minimal automatic vertical feed	[mm]	0,005 – 0,04
Main engine power	[kW]	5,5
Hydraulic pump motor power	[kW]	2,2
Coolant pump motor power	[W]	90
Cross feed motor power	[W]	370
Floor area occupied	[mm]	4445 x 2200
Weight	[kg]	5000
