Surface grinding machines

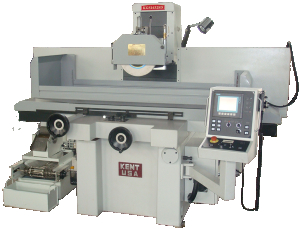

KENT USA KGS 250 surface grinding machine

55 096,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The KENT USA KGS 250 surface grinding machine is manufactured by the KENT company, which has been known for many years on the market. Grinders are used in all industrial plants, they are designed for continuous operation. They are characterized by a modern and stable structure.

Quantity
Add to cart

The KENT USA KGS 250 surface grinding machine is manufactured by the KENT company, which has been known for many years on the market. Grinders are used in all industrial plants, they are designed for continuous operation. They are characterized by a modern and stable structure. The main bodies are made of precise iron castings. As a result, the structure is suitably heavy and rigid, and damps vibrations. The grinders have a wide range of standard equipment.
The spindle is based on angular contact bearings. The stress of the bearings ensures a backlash-free operation of the spindle, thanks to which a grinding accuracy of up to 2 microns can be obtained.
Details with small dimensions may be less well held by a magnetic table with a standard pitch. In order to ensure correct holding of small details, a magnetic table with a smaller pitch should be used (optional).

Standard equipment:
  • grinding wheel guard
  • electromagnetic or magnetic table (depending on the model)
  • static balancer
  • lighting
  • user manual in English
  • CE declaration of conformity
Optional equipment (additionally payable):
  • digital readouts for 2 axes
  • basic chip separator with magnetic filter
  • chip separator with magnetic and paper filter
  • devices for parallel and radial dressing and for dressing the grinding wheel at an angle

Technical data Unit Value
The width of the table [mm] 200
Table length [mm] 460
Longitudinal feed [mm] 510
Cross feed [mm] 250
Distance from the table surface to the spindle axis [mm] 530
Maximum table load [kg] 120
T-slot for table clamping [mm] 1x14
Transverse travel per 1 division of the vernier scale [mm] 0,02
Transverse travel per revolution of the wheel [mm] 5
Transverse automatic feed per cut (SD1) [mm] 0,01
Transverse automatic feed per cut (SD2) [mm] 2
Grinding wheel size [mm] 200x25x32
Spindle rotation [rpm/min] 2850 - 3420
Main engine power [kW] 1,5
Coolant pump motor power [W] 90
Floor area occupied [mm] 1470x1170x2170
Weight [kg] 1200
