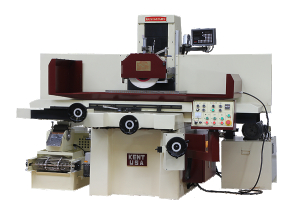

Automatic surface grinder KGS 1224 AHS

125 850,90 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

The KGS 1224 AHS automatic surface grinder is manufactured by the KAITE company, known for years on the market. Drive for the Y / Z axis Siemens servo motor controlled by Siemens PLC, cross feed pitch 0.01mm, auto feed pitch (Z - down) 0.002, for the Y axis a Chinese ball screw, and for the Z axis - a trapezoidal screw.

Quantity
Add to cart

The KGS 1224 AHS automatic surface grinder is manufactured by the KAITE company, known for years on the market. Drive for the Y / Z axis Siemens servo motor controlled by Siemens PLC, cross feed pitch 0.01mm, auto feed pitch (Z - down) 0.002, for the Y axis a Chinese ball screw, and for the Z axis - a trapezoidal screw. It is characterized by a modern and stable construction. The main bodies are made as precise iron castings. Thanks to this, the structure is sufficiently heavy and stiff, and dampens vibrations. The grinder has a very rich standard equipment. The longitudinal movement of the table is carried out hydraulically, with smooth speed regulation.
The spindle is based on angular contact bearings. The tension of the bearings ensures backlash-free operation of the spindle, thanks to which grinding accuracy of up to 2 microns can be obtained.
The hydraulic system based on specially designed valves ensures a gentle change of the direction of the table movement, without significant overloads and jerks.
Small workpieces may be less well held by an electromagnetic table with a standard pitch. In order to ensure proper holding of small workpieces, an electromagnetic table with a smaller pitch (option) should be used.

Standard equipment:
  • Grinding wheel
  • Rear guard
  • Electromagnetic table
  • Automatic feed for 2 axes
  • Ball screw for Y-axis, trapezoidal for Z
  • Microfeed
  • Static wheel balancer
  • CE declaration of conformity
  • User manual in English
Optional equipment (additionally payable):
  • Sustaining the table's operation in the event of a power failure - UPS
  • Device for parallel dressing of the grinding wheel
  • Device for dressing the grinding wheel at an angle
  • Basic magnetic separator
  • Magnetic separator with coolant pump and paper filter
  • Digital readout for 2 axes

Technical data Unit Value
The width of the table [mm] 300
Table length [mm] 600
Longitudinal feed [mm] 660
Cross feed [mm] 370
Distance from the table surface to the spindle axis [mm] 540
Maximum table load [kg] 420
T-slot for table clamping [mm] 1 x 14
Table speed [m/min] 5 - 25
Transverse travel per 1 division of the vernier scale [mm] 0,02
Transverse travel per revolution of the wheel [mm] 5
Transverse automatic feed per cut (SD1) [mm] 0,5
Transverse automatic feed per cut (SD2) [mm] 0,001
Accelerated cross feed [mm/min] 790
Grinding wheel size [mm] 355 x 40 x 127
Spindle rotation [rpm/min] 0 - 1450
Feed per revolution of the MGP wheel [-] x1, x10, x100
Minimal automatic vertical feed [mm] 0,005/0,1/0,015/0,02/0,025/ 0,03/0,04/0,05
Main engine power [kW] 4
Hydraulic pump motor power [kW] 2,2
Coolant pump motor power [W] 90
Cross feed motor power [W] 90
Floor area occupied [mm] 2600 x 2500
Weight [kg] 1910
