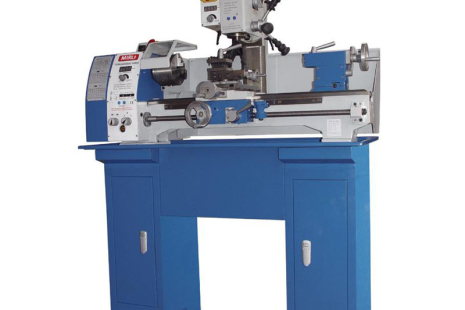

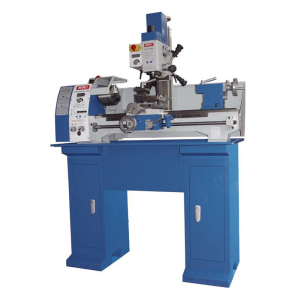

EUROMET KOMBI 280 multifunctional machine

19 900,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The EUROMET KOMBI 280 multifunctional machine is an ideal solution for DIY enthusiasts, model makers, school workshops and small mechanical plants. The main advantage of the machine is its versatility resulting from the combination of a lathe and a milling machine into one precise device. The operator can perform operations such as turning, threading, drilling and milling at one station.

Quantity
Add to cart

The EUROMET KOMBI 280 multifunctional machine is an ideal solution for DIY enthusiasts, model makers, school workshops and small mechanical plants. The main advantage of the machine is its versatility resulting from the combination of a lathe and a milling machine into one precise device. The operator can perform operations such as turning, threading, drilling and milling at one station. The high functionality of the machine is based, among others, on: on smooth regulation of the speed of the horizontal and vertical spindle, easy and quick change between turning and milling functions, and a rotating milling head in the range of +/- 90⁰. Inductively hardened bed guides are mounted on a cast iron body, which ensures high stiffness of the machine.

Standard equipment:
  • Rotation speed display
  • 3-jaw chuck Ø125mm
  • Lathe chuck cover
  • Tool post cover
  • MT4/MT2 reducing sleeve
  • Gear
  • Smooth regulation for 2 axes (inverter)
  • Horse
  • Basic tools
  • CE certificate
  • Instructions in English
Optional equipment (paid additionally):
  • 4-jaw chuck Ø 160mm
  • Eyepiece
  • Work lighting
  • Machine vice
  • Chuck
  • MT2 rotary center
  • Permanent tusk

Technical data Unit Value
Turning diameter over bed [mm] 260
Workpiece length [pcs] 700
Turning diameter over cross slide [mm] 170
Bed width [mm] 180
Spindle taper [-] MT-4
Spindle flight [mm] 26
Spindle speed range [rpm/min] 50 - 2500
Longitudinal feed [mm/rpm] 0,07 - 0,40
Inch thread range [TPI] 8-56
Metric thread range [mm] 0,2-4
Tailstock sleeve tip [-] MT-2
Lathe spindle motor power [kW] 1,1
Maximum drilling diameter [mm] 20
Maximum milling diameter [mm] 63
Milling head spindle taper [-] MT2
Extend the spindle sleeve [mm] 52
T-slot size [mm] 12
Milling spindle speed range [rpm/min] 50 - 3000
Distance of the spindle nose from the table [mm] 380
Working range [mm] 190
Milling spindle motor power [W] 850
Dimensions (LxWxH) [mm] 1370x850x1050
Weight [kg] 250
