EUROMET KOMBI 240 multifunctional machine

13 125,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

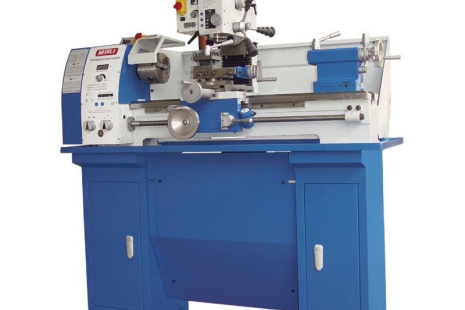

The EUROMET KOMBI 240 multifunctional machine is an ideal solution for DIY enthusiasts, model makers, school workshops and small mechanical plants. The main advantage of the machine is its versatility resulting from the combination of a lathe and a milling machine into one precise device. The operator can perform operations such as turning, threading, drilling and milling at one station.

Quantity
Add to cart

The EUROMET KOMBI 240 multifunctional machine is an ideal solution for DIY enthusiasts, model makers, school workshops and small mechanical plants. The main advantage of the machine is its versatility resulting from the combination of a lathe and a milling machine into one precise device. The operator can perform operations such as turning, threading, drilling and milling at one station. The high functionality of the machine is based, among others, on: on smooth regulation of the speed of the horizontal and vertical spindle, easy and quick change between turning and milling functions, and a rotating milling head in the range of +/- 90⁰. Inductively hardened bed guides are mounted on a cast iron body, which ensures high stiffness of the machine.

Standard equipment:
  • Rotation speed display
  • 3-jaw chuck Ø125mm
  • Lathe chuck cover
  • Tool post cover
  • MT4/MT2 reducing sleeve
  • Gear
  • Smooth regulation for 2 axes (inverter)
  • Horse
  • Basic tools
  • CE certificate
  • Instructions in English
Optional equipment (paid additionally):
  • 4-jaw chuck Ø 160mm
  • Eyepiece
  • Work lighting
  • Machine vice
  • Chuck
  • MT2 rotary center
  • Permanent tusk

Technical data Unit Value
Turning diameter over bed [mm] 250
Workpiece length [pcs] 550
Turning diameter over cross slide [mm] 150
Bed width [mm] 135
Spindle taper [-] MT-4
Spindle flight [mm] 26
Spindle speed range [rpm/min] 50 - 2500
Longitudinal feed [mm/rpm] 0,07 - 0,40
Inch thread range [TPI] 8-56
Metric thread range [mm] 0,2-4
Tailstock sleeve tip [-] MT-2
Lathe spindle motor power [kW] 1,1
Maximum drilling diameter [mm] 16
Maximum milling diameter [mm] 52
Milling head spindle taper [-] MT2
Extend the spindle sleeve [mm] 52
T-slot size [mm] 10
Milling spindle speed range [rpm/min] 50 - 3000
Distance of the spindle nose from the table [mm] 280
Working range [mm] 175
Milling spindle motor power [W] 600
Dimensions (LxWxH) [mm] 1200x580x1060
Weight [kg] 210
