CNC training lathes

EUROMET SKOLAR C1 CNC teaching lathe

15 010,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

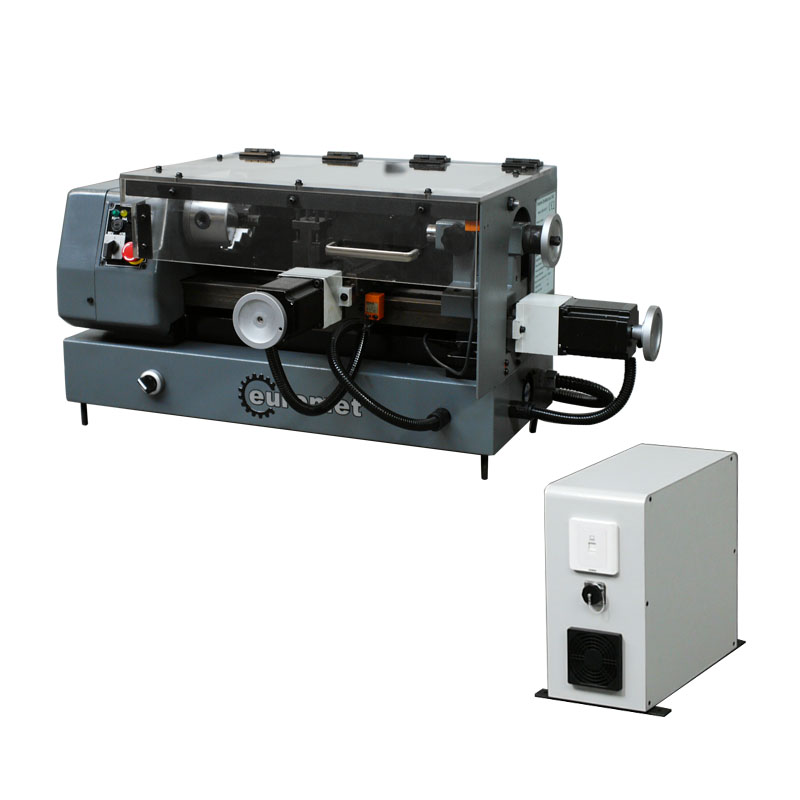

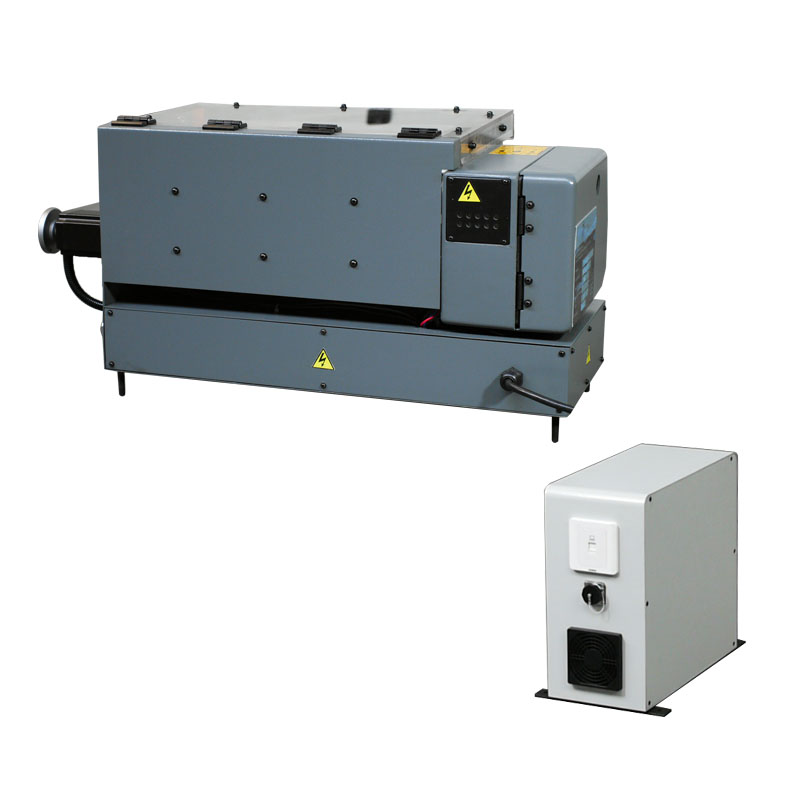

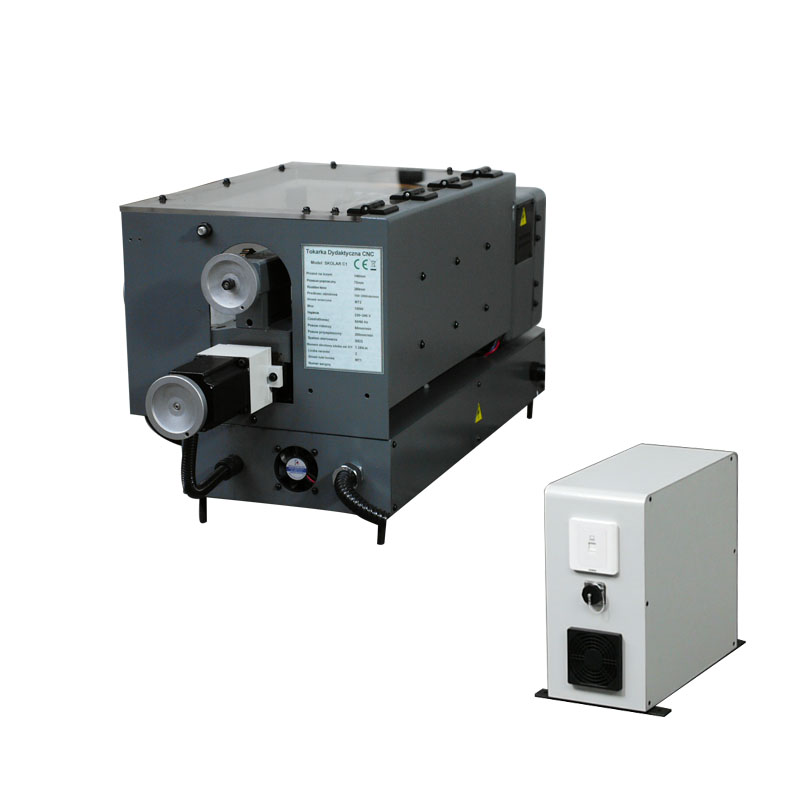

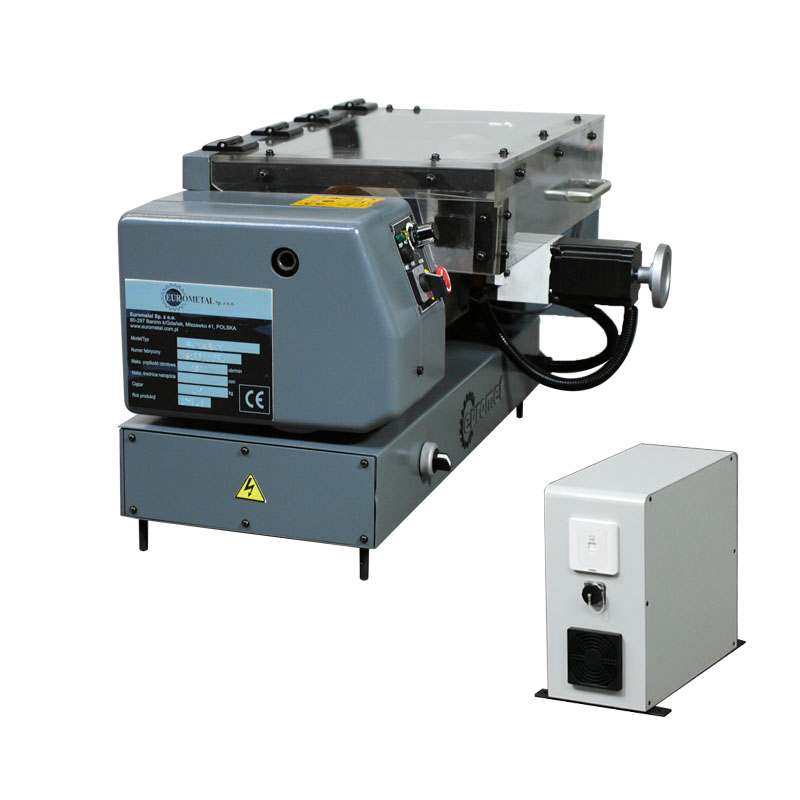

The EUROMET SKOLAR C1 machine is a small, economical CNC lathe with a flat bed, providing high educational values at low financial costs. The axes are driven by high-quality stepper motors. The lathe can be controlled manually or via software installed on a PC. The machine allows you to perform all basic turning operations, such as machining of cylindrical, conical, internal and external surfaces, planning, cutting, etc.

Quantity
Add to cart

The EUROMET SKOLAR C1 machine is a small, economical CNC lathe with a flat bed, providing high educational values at low financial costs. The axes are driven by high-quality stepper motors. The lathe can be controlled manually or via software installed on a PC. The machine allows you to perform all basic turning operations, such as machining of cylindrical, conical, internal and external surfaces, planning, cutting, etc. Small dimensions, weight and 230V power supply allow you to easily place the machine in almost any place.

Standard equipment:
  • CE Declaration of Conformity
  • SIEG or MACH control installed on PC
  • Manual 3-jaw chuck
  • Possibility of manual and automatic operation
  • High-quality stepper motors
  • Power supply 230V/50HZ
  • User manual in English
Optional equipment (additionally paid):
  • 4-jaw chuck (independent)
  • Starter tool kit
  • Rotary point
  • Chuck
  • Base

Technical data Unit Value
Controls [-] SIEG/MACH
Power [kW/Hz] 150
Flight over the bed [mm] 140
Flight over the slide [mm] 75
Turning length in centers [mm] 250
Spindle flight [mm] 10
Spindle speed range [rpm/min] 100 - 2000
Spindle taper [-] MT2
X axis travel [mm] 100
Z axis travel [mm] 150
X / Z axis accelerated feed rates [mm/min] 2000
X / Z axis working feed speed [mm/min] 500
Tailstock cone [-] MT1
Tailstock sleeve diameter [mm] 2
X-axis motor torque [Nm] 1,35
Z-axis motor torque [Nm] 1,35
Dimensions [mm] 730x380x350
Weight [kg] 45
