EUROMET SKOLAR 6S CNC teaching lathe

50 800,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Edyta Skrzypek
E-mail: edyta.skrzypek@eurometal.com.pl
Telefon: 609504408

The EUROMET SKOLAR 6S machine is a small, economical CNC lathe with a flat bed, providing high educational values at low financial costs. The axes are driven by high-quality stepper motors, and the ribbed casting of the bed ensures appropriate stiffness. The renowned CNC control enables the teaching process to be carried out on one of the most popular models currently on the market.

Quantity
Add to cart

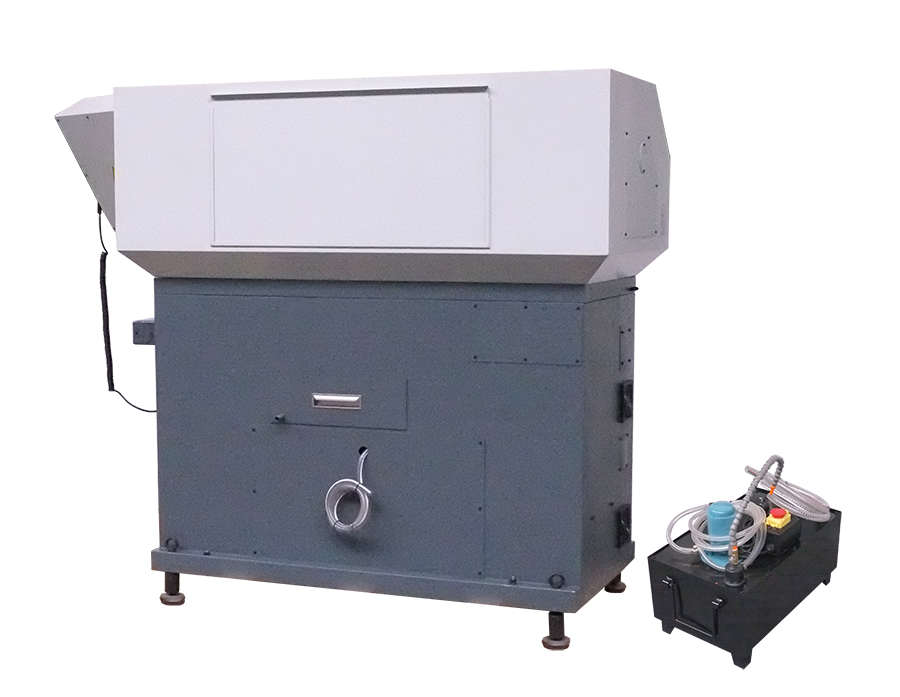

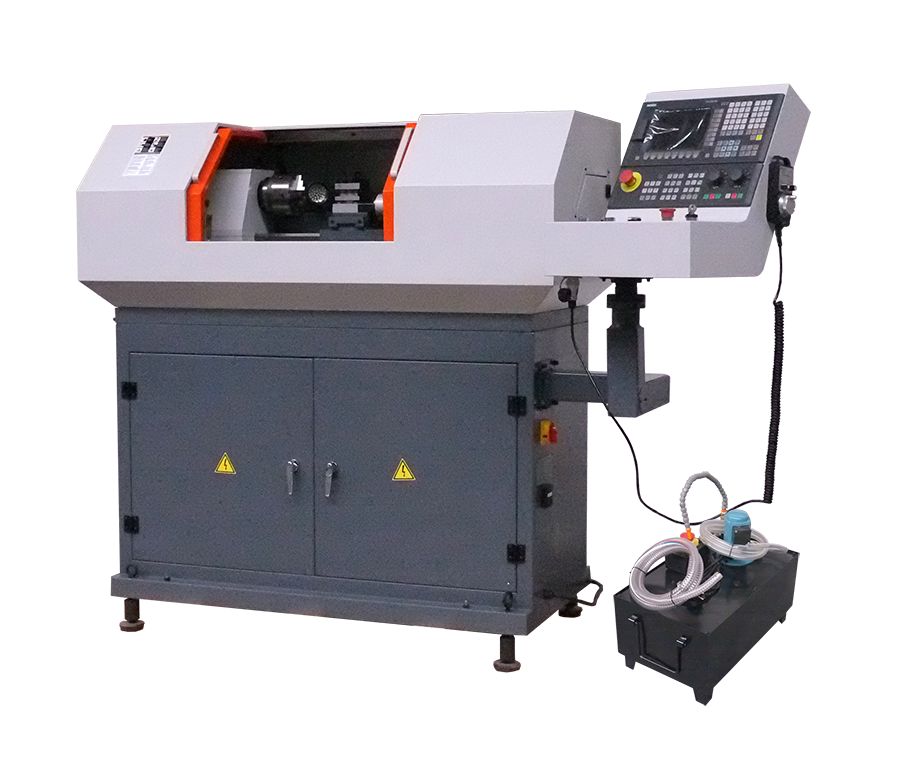

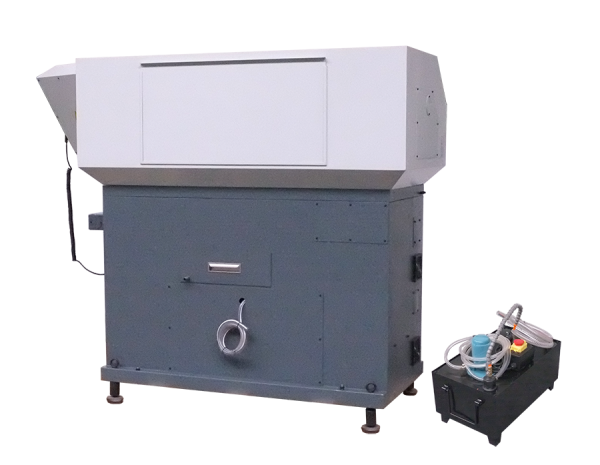

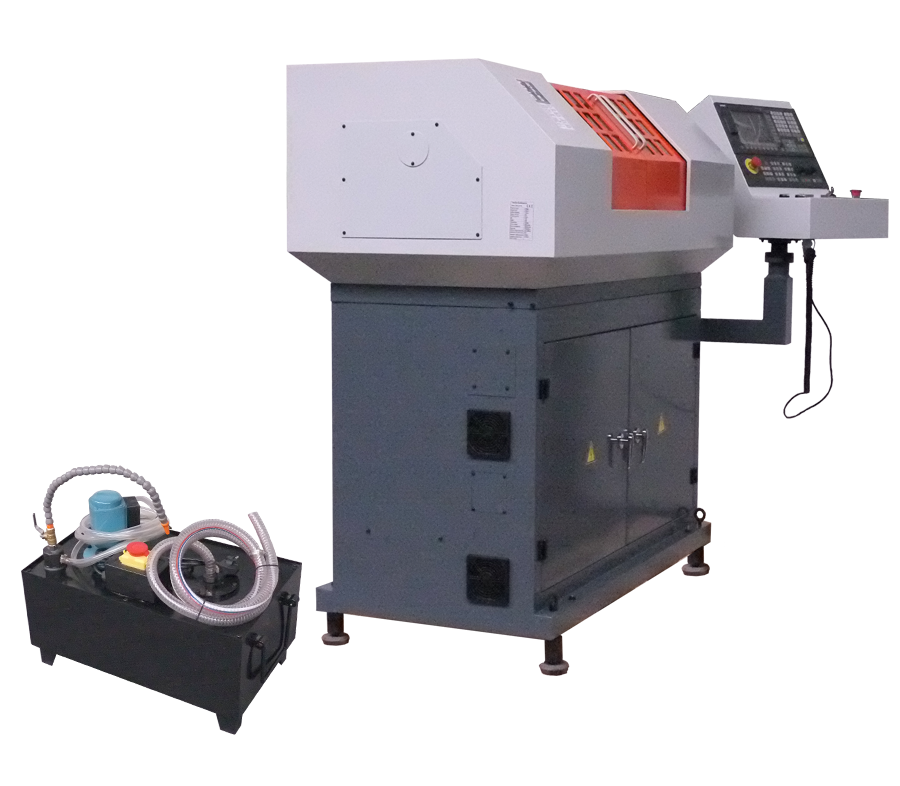

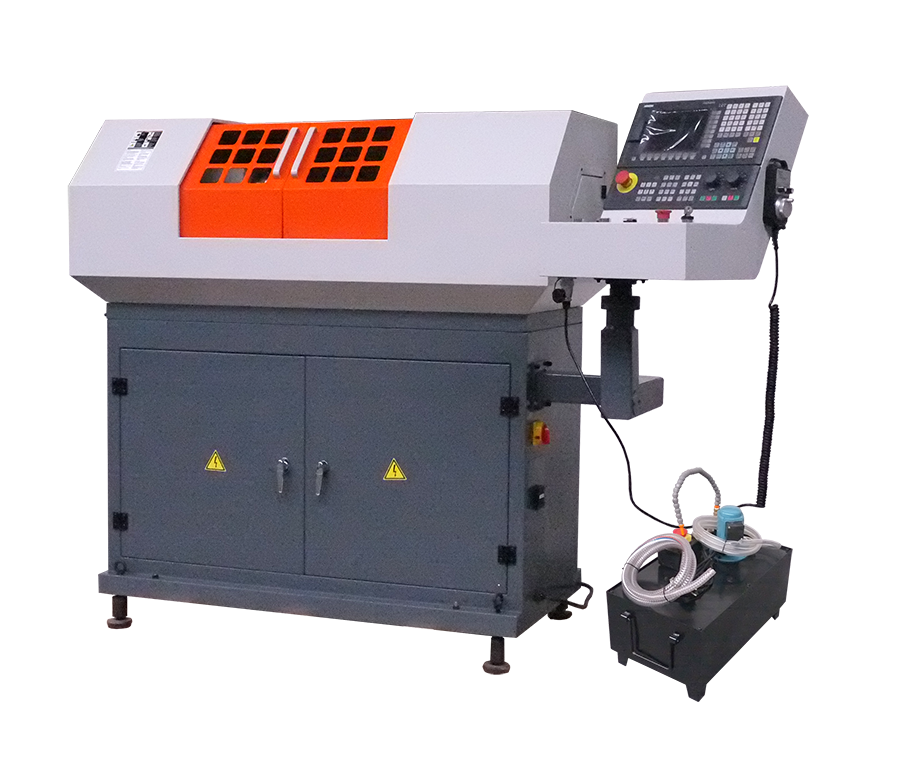

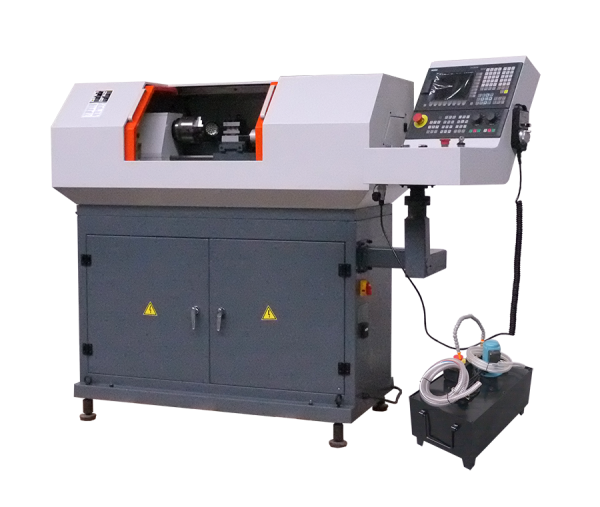

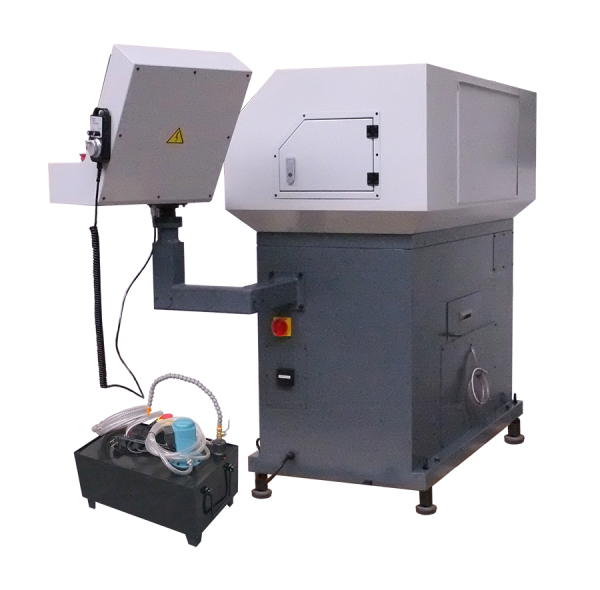

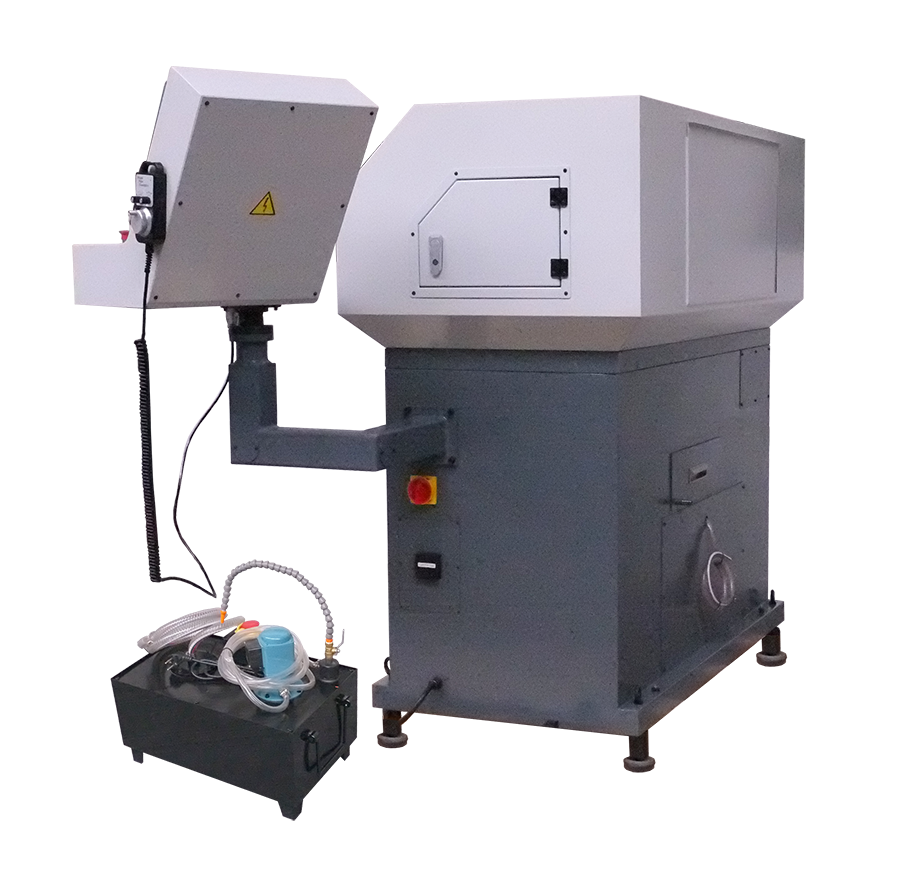

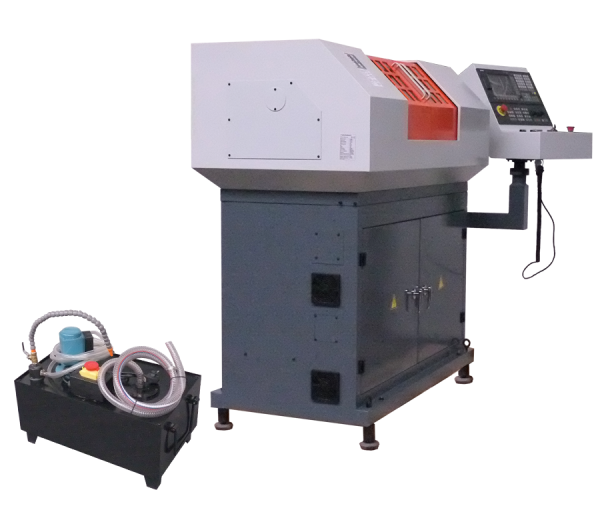

The EUROMET SKOLAR 6S machine is a small, economical CNC lathe with a flat bed, providing high educational values at low financial costs. The axes are driven by high-quality stepper motors, and the ribbed casting of the bed ensures appropriate stiffness. The renowned CNC control enables the teaching process to be carried out on one of the most popular models currently on the market. The machine allows you to perform all basic turning operations, such as machining of cylindrical, conical, internal and external surfaces, planning, cutting, threading, etc. Small dimensions, weight and 230V power supply allow you to easily place the machine in almost any place.

Standard equipment:

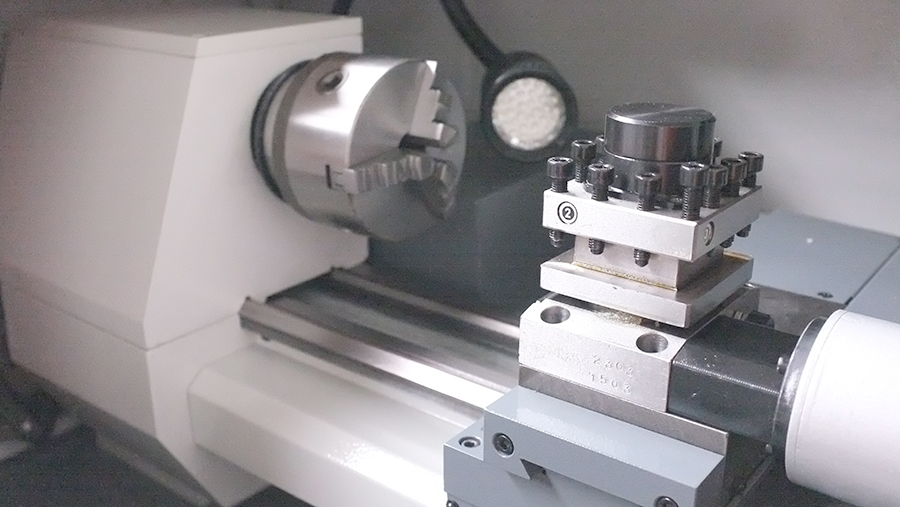

  • Manual 3-jaw chuck

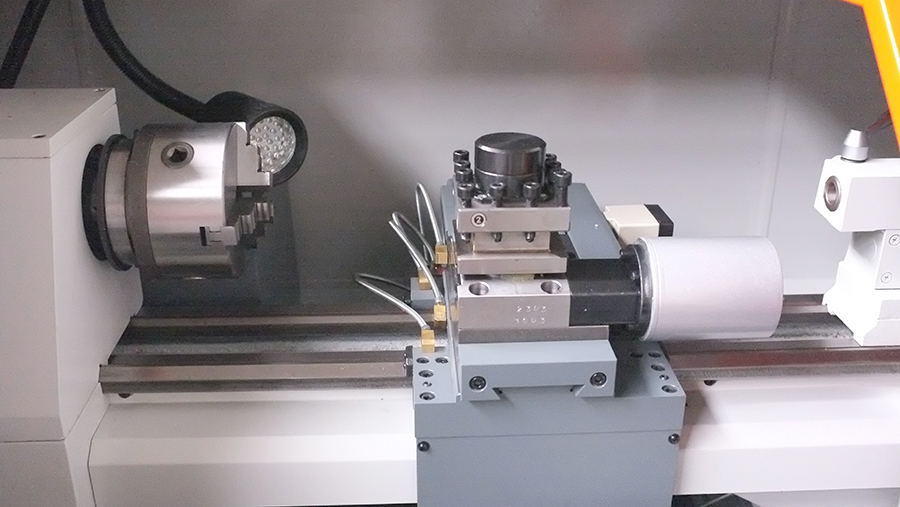

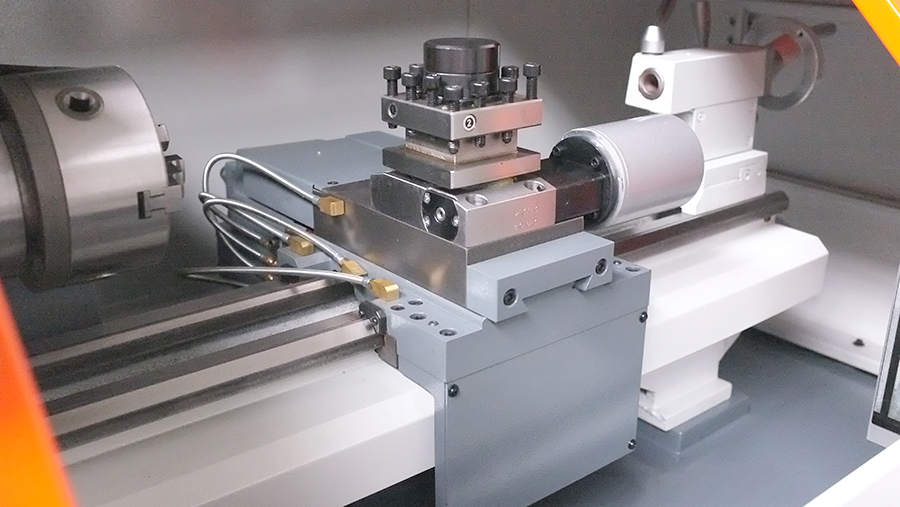

  • Automatic 4-position tool post.
  • Horse

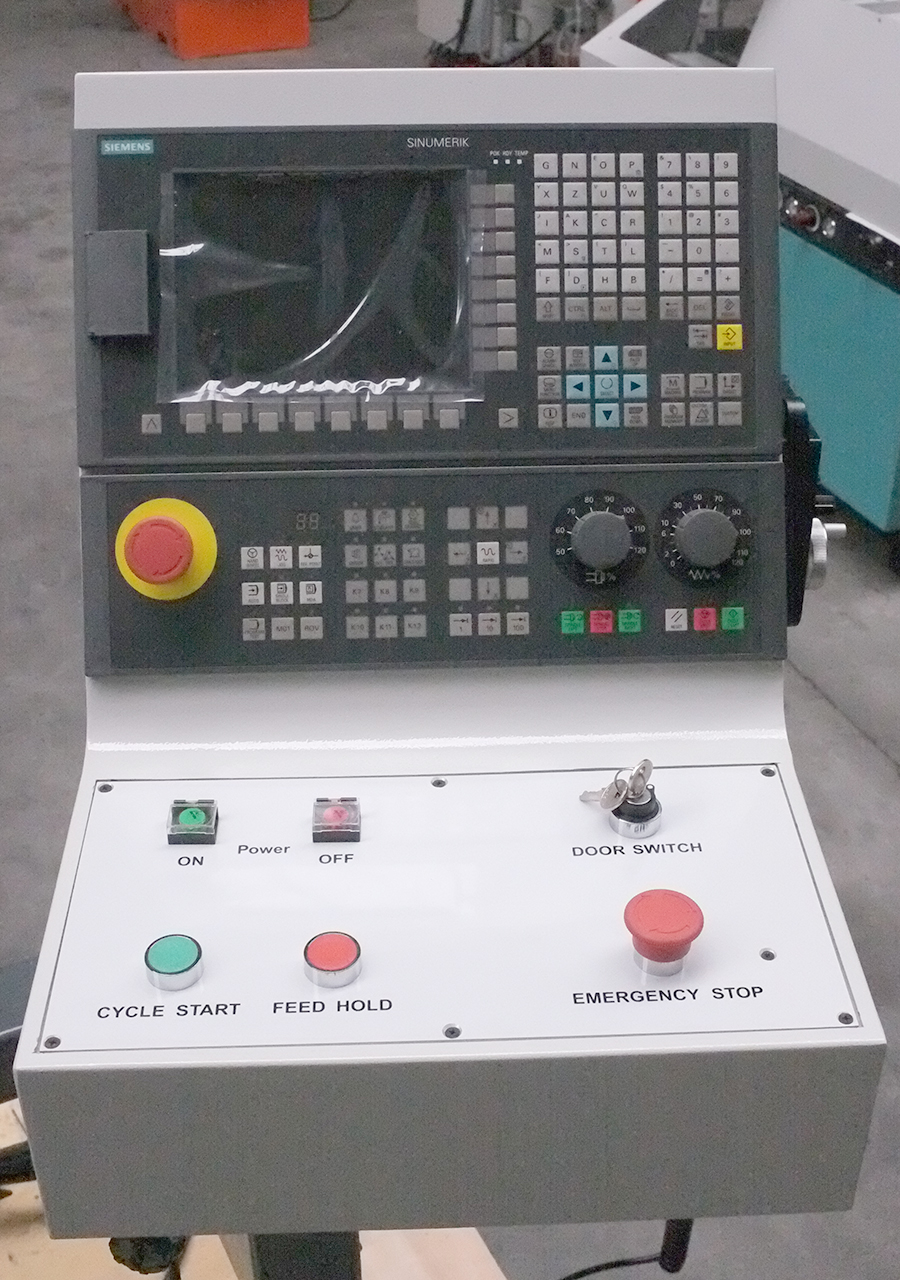

  • SIEMENS 808DA control
  • Stepper motors
  • Voltage 230V/50Hz
  • Lubrication pump
  • User manual in English
  • CE Declaration of Conformity
  • Starter set of tools – 4 pcs.
Optional equipment (additionally paid):
  • SIEMENS 828D control

Technical data Unit Value
Controls [-] SIEMENS 808DA
Power [kW/Hz] 230V~50HZ
Flight over the bed [mm] 260
Flight over the slide [mm] 110
Turning length in centers [mm] 450
Bed width [mm] 135
Spindle drive motor power [kW] 1,0
Spindle speed range [rpm/min] 100 - 3000
Spindle taper [-] MT3
X axis travel [mm] 180
Z axis travel [mm] 320
X / Z axis accelerated feed rates [mm/min] 2000
X / Z axis working feed speed [mm/min] 500
Tailstock cone [-] MT2
Tailstock sleeve diameter [mm] 30
Tailstock quill extension [mm] 50
Tailstock travel adjustment [mm] +/-4
Number of tool sockets [pcs] 4
Dimensions [mm] 1460x760x1450
Weight [kg] 440
