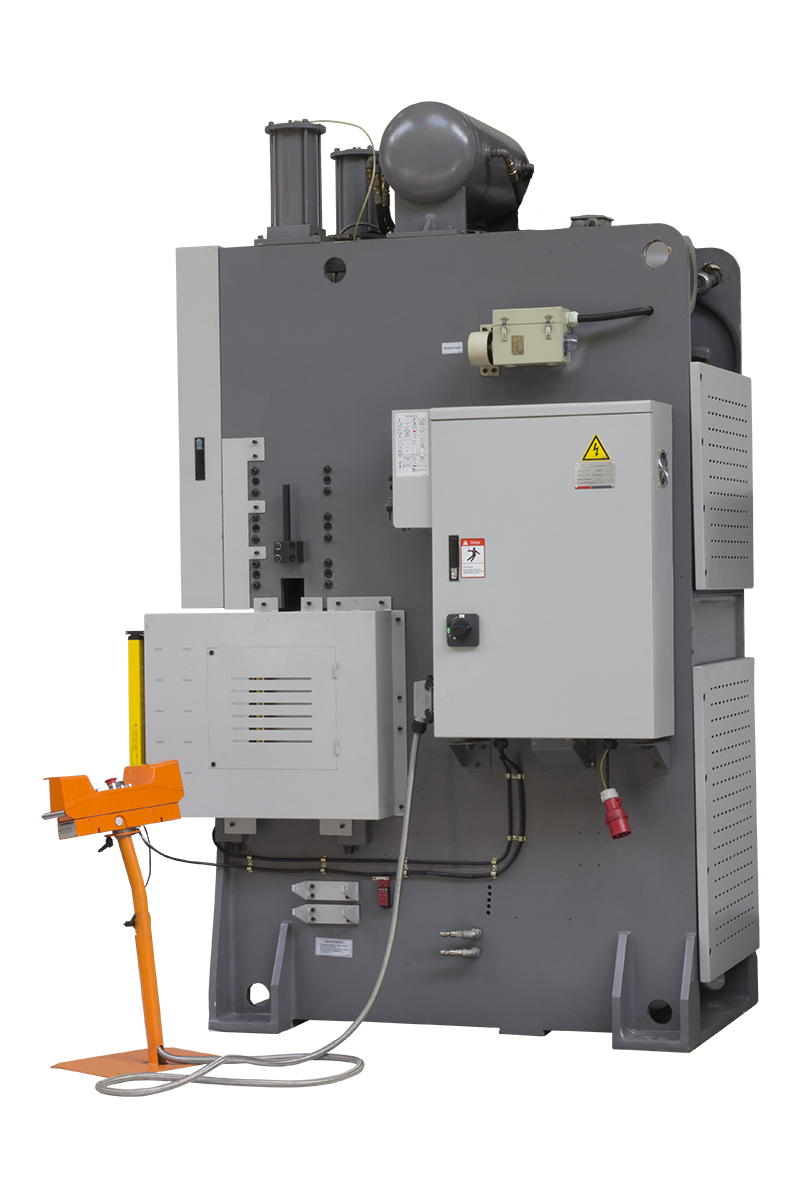

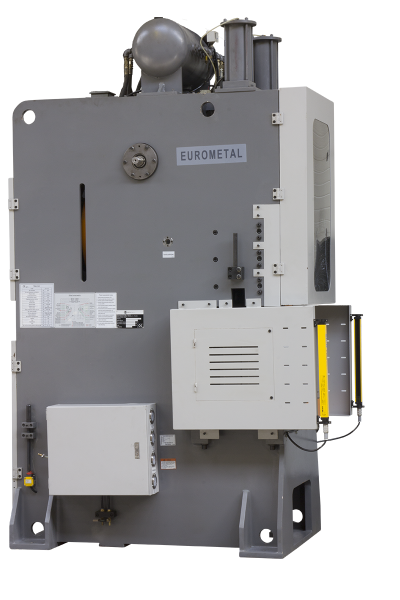

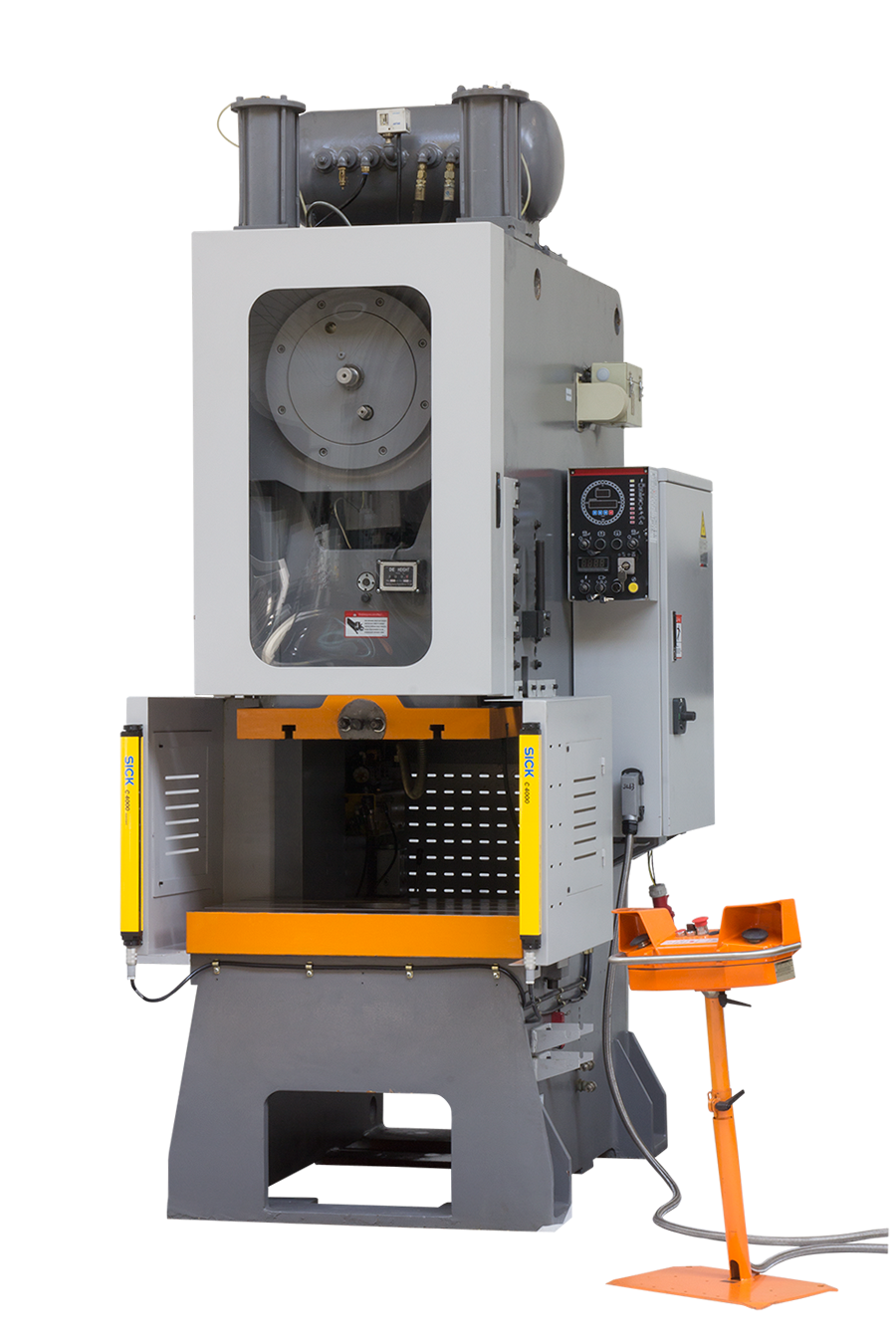

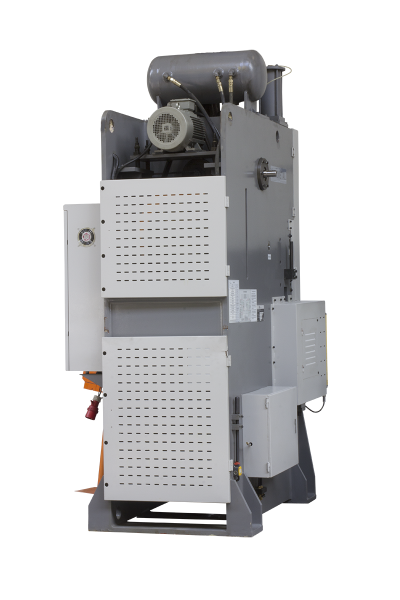

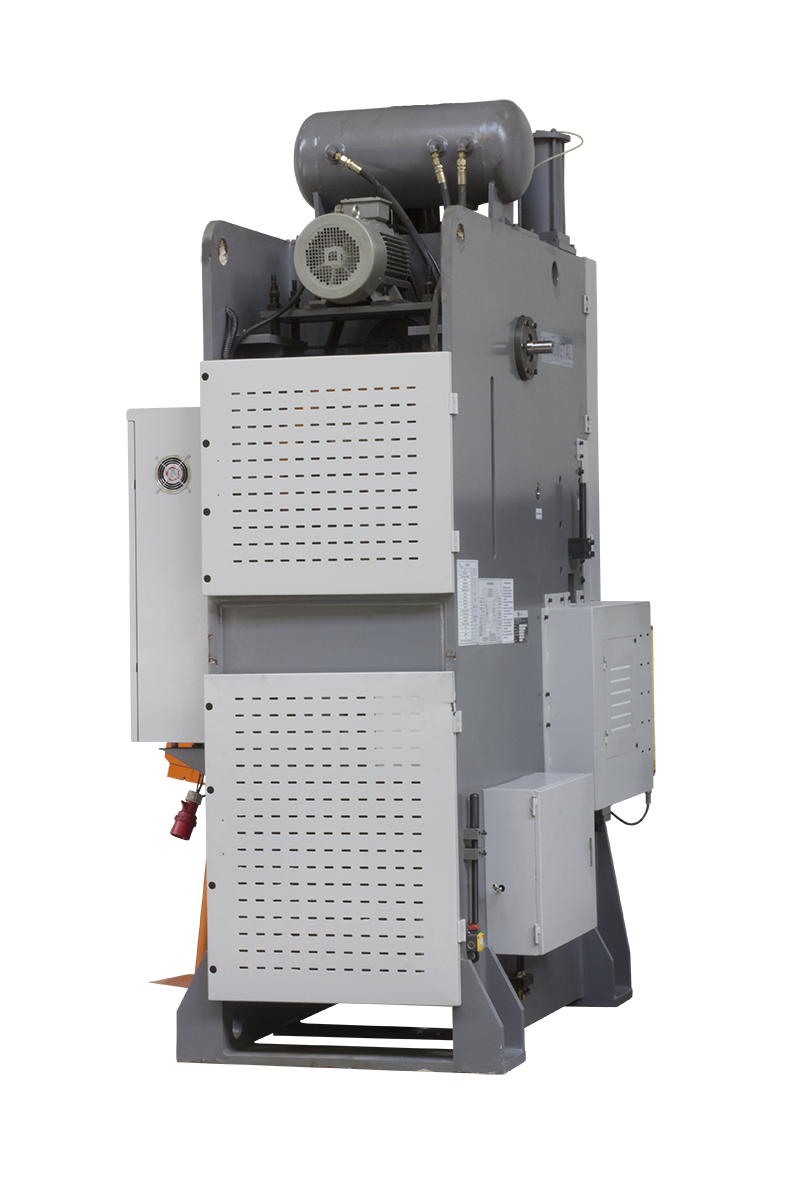

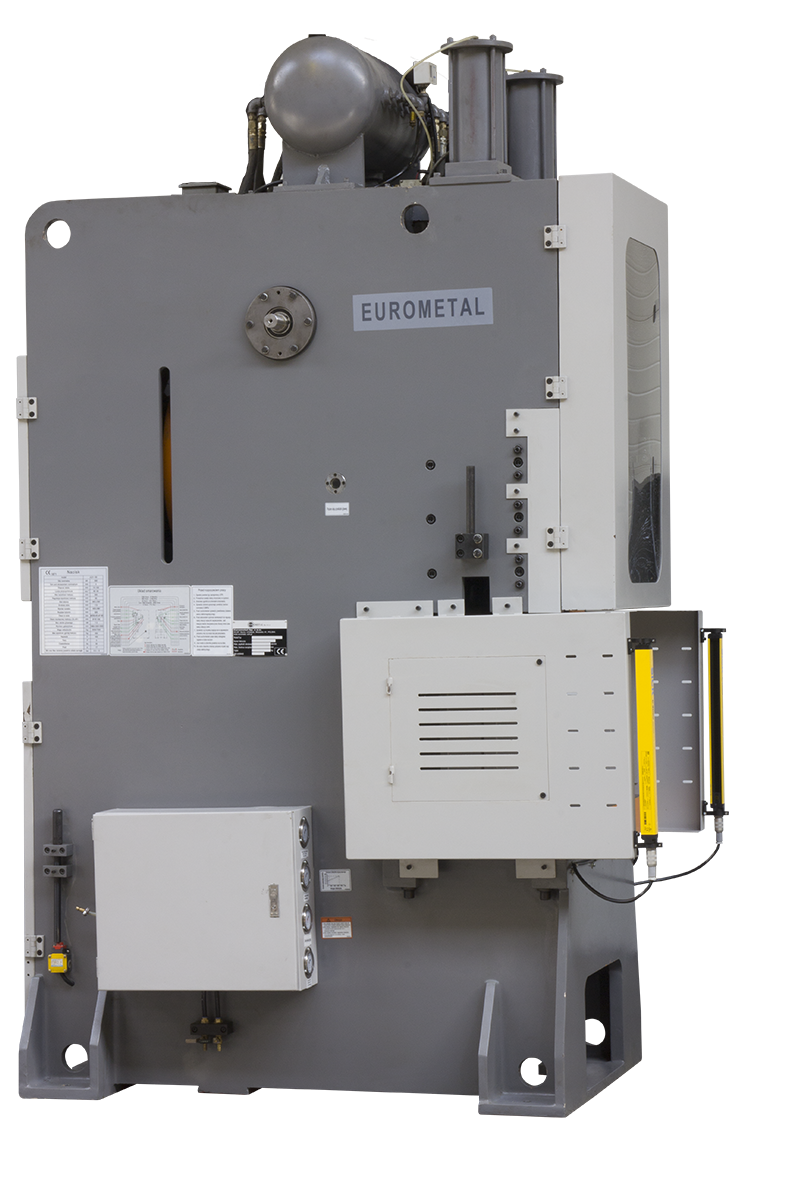

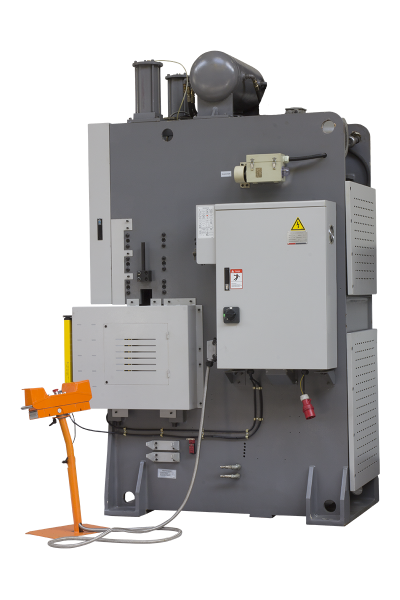

EUROMET JL21-160T MECHANICAL PRESS
Priced individually
No rating
12 months of warranty
EUROMET JL21 series eccentric presses have a PLC controller as standard. The crankshaft is positioned in the longitudinal direction. The presses use a combination of a pneumatic, dry friction clutch and a brake, which makes the stroke engagement smooth.
EUROMET JL21 series eccentric presses have a PLC controller as standard. The crankshaft is positioned in the longitudinal direction. The presses use a combination of a pneumatic, dry friction clutch and a brake, which makes the stroke engagement smooth.
The gear train operates in an oil bath and is splash lubricated. The slider has the shape of a cuboid and moves along guides. A hydraulic overload safety device is mounted on the slider. The tool setting is regulated by an electric motor. The press is equipped with a pressure accumulator, automatic feed shaft and light curtain.
The pressure of the presses ranges from 25 tons to 250 tons. The maximum height of a set of dies is from 250 to 500 mm. Other functional parameters on request.
The press has an EC type examination issued by a notified body.
Standard equipment:
- Anti-crash light curtain
- Slider stroke adjustment
- Large table with T-slots
- Overload fuse
- Air operated clutch
- PLC driver
- Smooth regulation of the number of jumps
- User manual in English
- CE declaration of conformity, type examination
Optional equipment (for an additional fee):
- Feeder
- Uncoiler
- Straightener
- Detail ejector
- Rewinder
| Technical data | Unit | Value |
|---|---|---|
| Pressure | [KN] | 1600 |
| Stroke under nominal load | [mm] | 6 |
| Ram stroke | [mm] | 6 - 160 |
| The number of strokes | [1/min] | 35 - 50 |
| Die set height max | [mm] | 350 |
| Die height adjustment | [mm] | 110 |
| Recess | [mm] | 380 |
| Wall spacing | [mm] | 810 |
| Working table width | [mm] | 1300 |
| The length of the working table | [mm] | 740 |
| Thickness of the working table | [mm] | 150 |
| Worktable hole diameter (outer) | [mm] | Ф300 |
| Worktable hole diameter (depth) | [mm] | 50 |
| Worktable hole diameter (internal) | [mm] | Ф260 |
| The width of the bottom of the slider | [mm] | 920 |
| Length of the bottom of the zipper | [mm] | 580 |
| The diameter of the hole for the stamp | [mm] | Ф65 |
| The depth of the hole for the stamp | [mm] | 90 |
| Engine power | [KN] | 15 |
| Overall dimensions (WxLxH) | [mm] | 2250x1560x3765 |
| Weight | [kg] | 15000 |
