Square column drilling machines

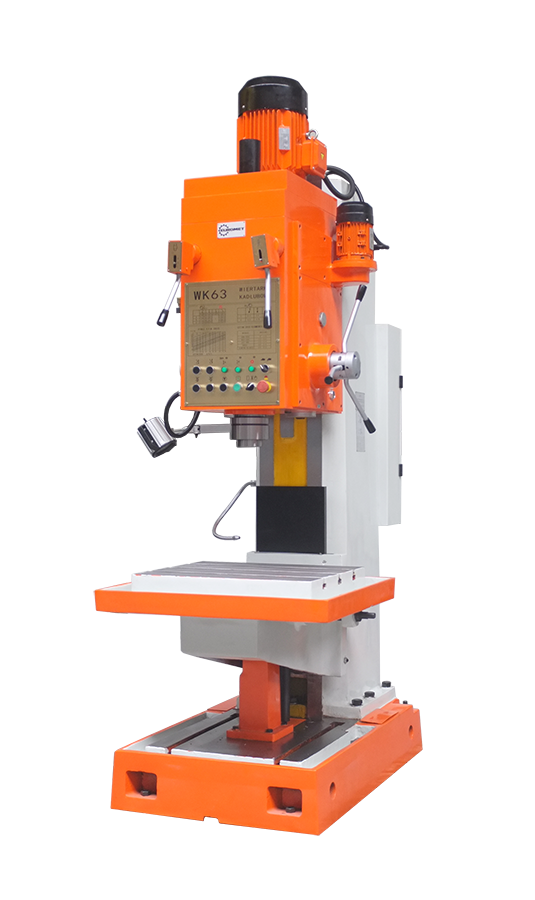

EUROMET WK63 hull drilling machine
60 500,00 zł net
No rating
12 months of warranty
The EUROMET WK63 frame drilling machine is a universal machine that can be used to process workpieces of a wide range of dimensions and made of various materials. The hull drilling machines are characterized by high accuracy, efficiency, ease of use and reliability. The construction of the machines ensures the rigidity and stability of the drills. The machine is designed to work in small production workshops, but thanks to the use of a semi-automatic cycle, it is also suitable for larger production plants.
Quantity
Add to cart
The EUROMET WK63 frame drilling machine is a universal machine that can be used to process workpieces of a wide range of dimensions and made of various materials. The hull drilling machines are characterized by high accuracy, efficiency, ease of use and reliability. The construction of the machines ensures the rigidity and stability of the drills. The machine is designed to work in small production workshops, but thanks to the use of a semi-automatic cycle, it is also suitable for larger production plants.
They are designed to perform the following operations:
- drilling
- front dredging
- reaming
- drilling
- threading
- milling
The main features of the device:
- strong, rigid structure
- durable spindle for milling work
- adjustable drilling depth
- headstock feed motor
- integrated cooling system
- machining space cover
- large surface of the working table
Standard equipment:
- reduction sleeve 4 pcs.
- wedge for driving the tool
- foundation bolts
- lighting
- automatic feed
- machine manual in English
- CE declaration of conformity
| Technical data | Unit | Value |
|---|---|---|
| Drilling diameter | [mm] | 63 |
| Torque | [Nm] | 800 |
| Main spindle taper | [-] | MT5 Morse |
| Extend the spindle sleeve | [mm] | 250 |
| Headstock travel | [mm] | 260 |
| Distance from the spindle axis to the column surface | [mm] | 375 |
| Spindle speed (12 values) | [rpm/min] | 40 - 570 |
| Feed values (9 values) | [mm/rpm] | 0,1 - 0,78 |
| Working table surface | [mm] | 550x650 |
| Distance from the spindle to the surface of the worktable | [mm] | 860 |
| Working table travel | [mm] | 300 |
| The working surface of the base | [mm] | 600x580 |
| Main engine power | [kW] | 5,5 |
| Dimensions | [mm] | 1260x1020x2820 |
| Weight | [kg] | 2500 |
