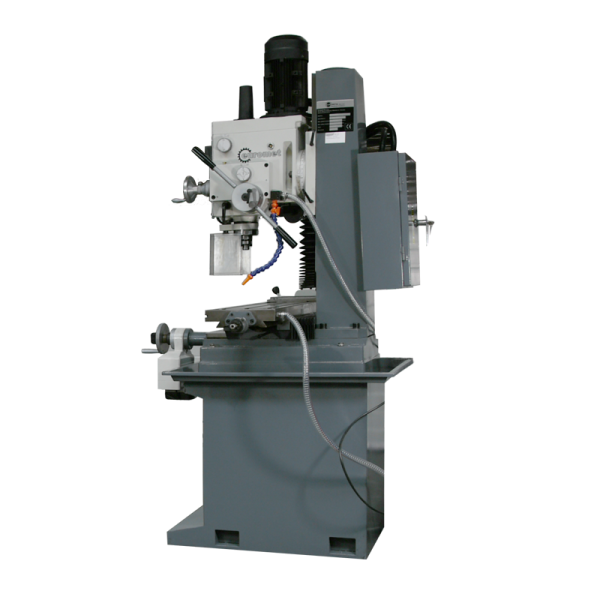

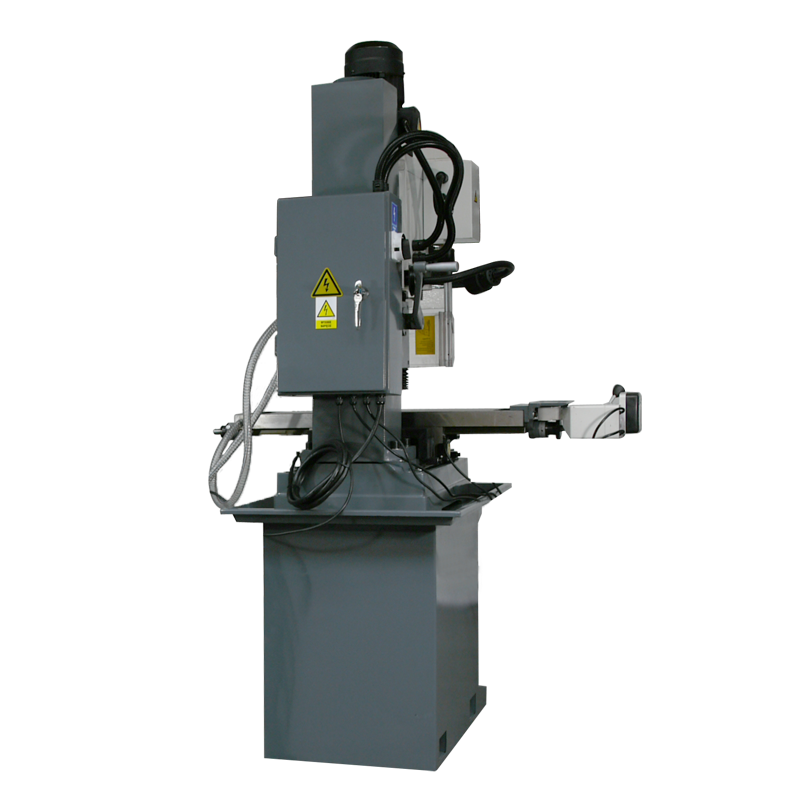

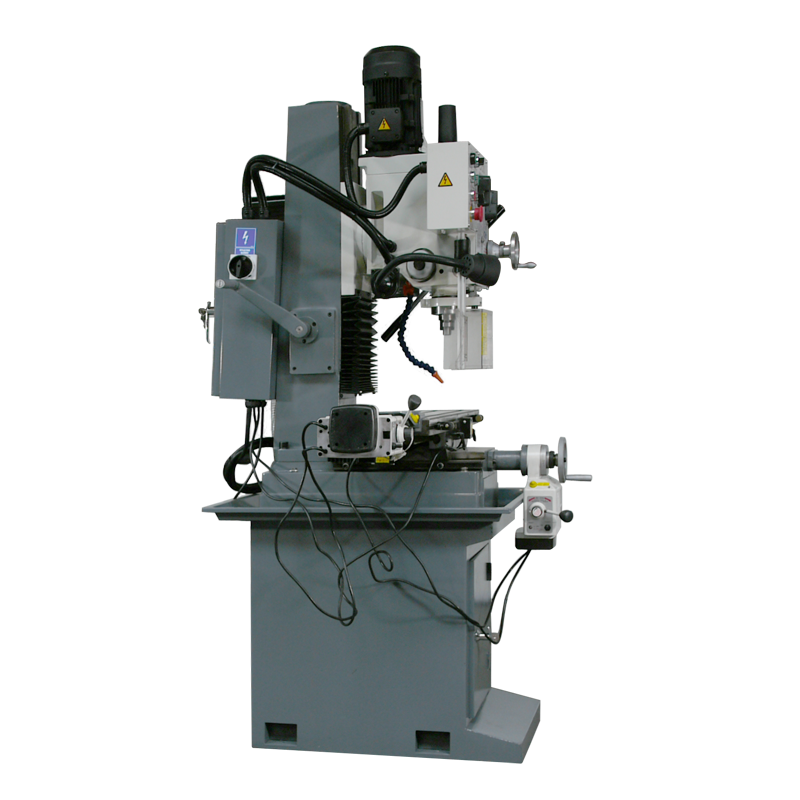

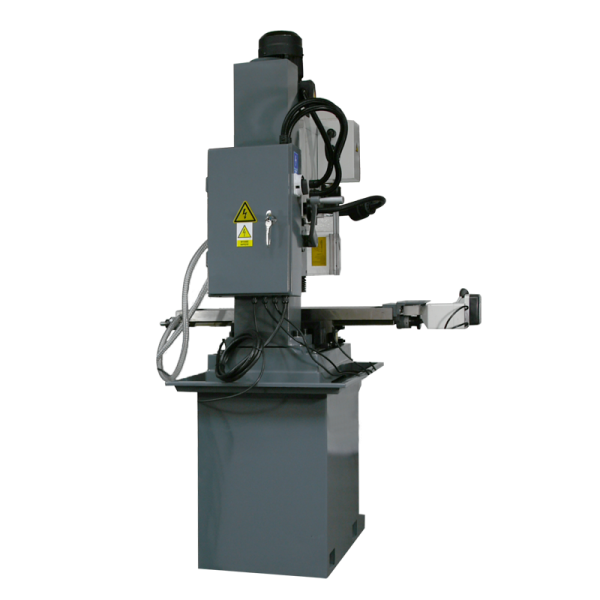

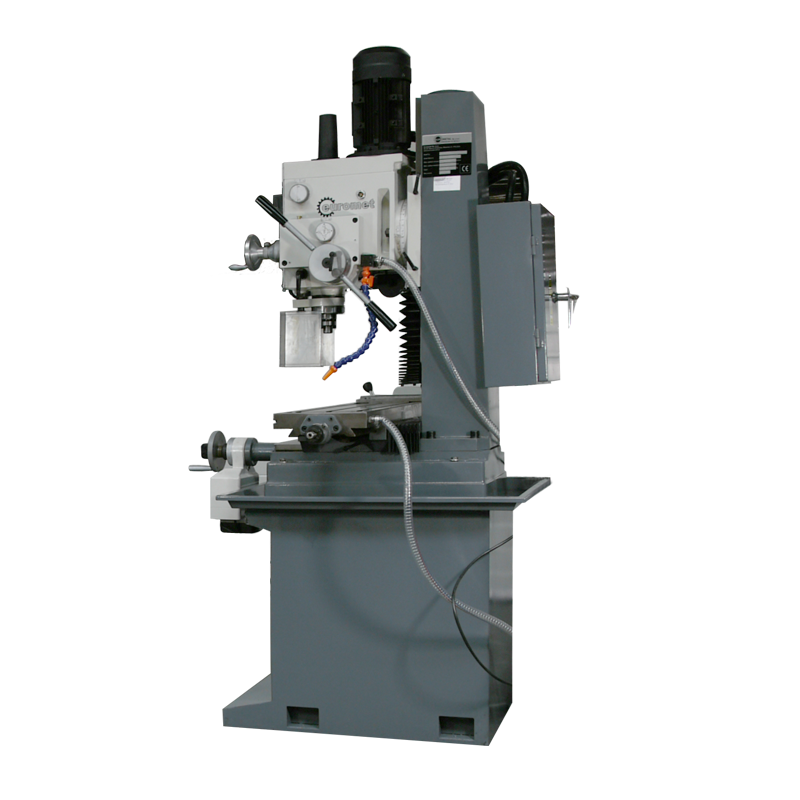

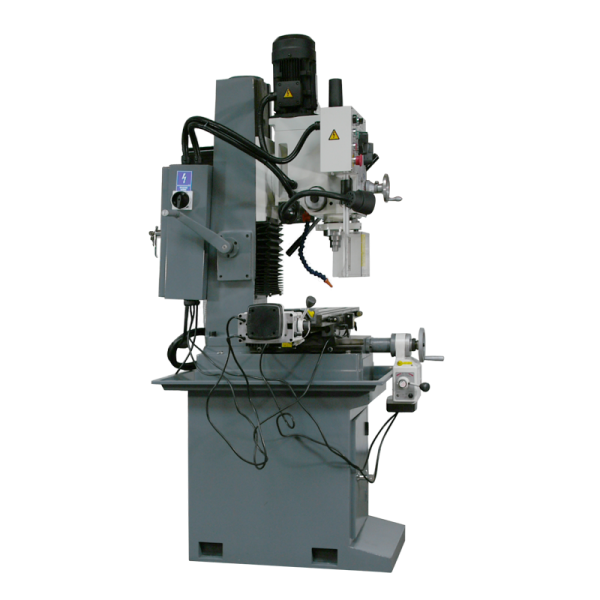

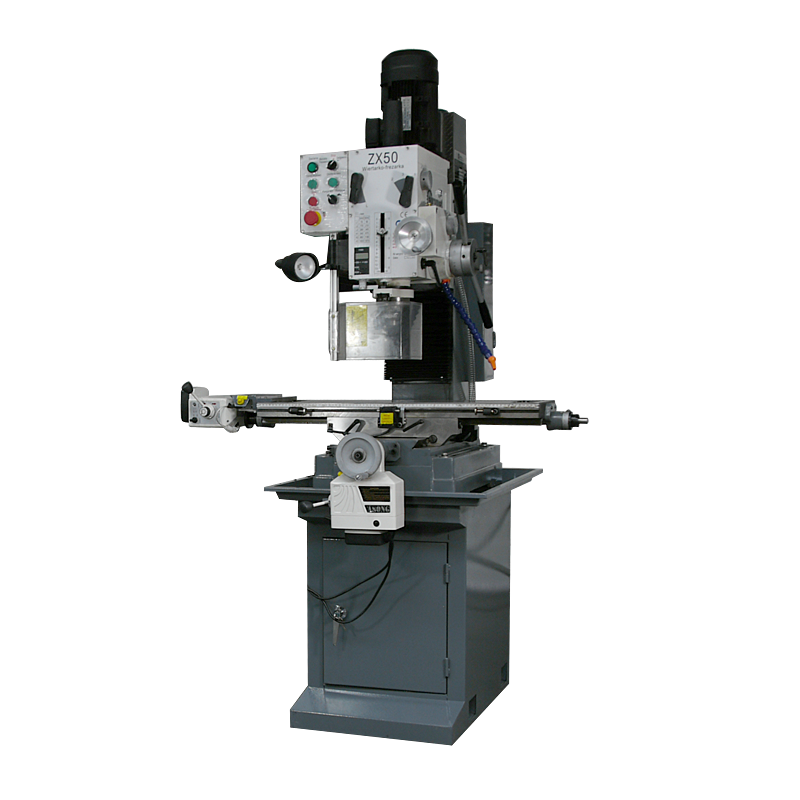

The EUROMET ZX-50 drilling and milling machine is a device that is ideally suited for small mechanical workshops and for educational purposes in technical schools. It can be used for unit and small lot production. Simple and solid structure guarantees long-lasting, maintenance-free operation without failure. The automatic table feeds greatly facilitate the processing of planes, they provide a uniform, aesthetic surface after milling.
Technical data | Unit | Value |
---|---|---|
Drilling capacity in steel | [mm] | 32 |
Face milling cutter diameter | [mm] | 80 |
End mill diameter | [mm] | 32 |
Table dimensions (length) | [mm] | 780 |
Table dimensions (width) | [mm] | 240 |
Longitudinal table travel | [mm] | 565 |
Table cross travel | [mm] | 230 |
T-slot width | [mm] | 14 |
Spindle taper | [-] | MT4 |
Spindle extension | [mm] | 120 |
Spindle rotation | [rpm/min] | 75 - 1600 |
Number of spindle speed ranges | [-] | 6 |
Maximum distance from spindle to table | [mm] | 450 |
Rotate the head left and right | [°] | +/- 90 |
Main engine power | [kW] | 1,1 |
Dimensions | [mm] | 850x760x1150 |
Weight | [kg] | 320 |
