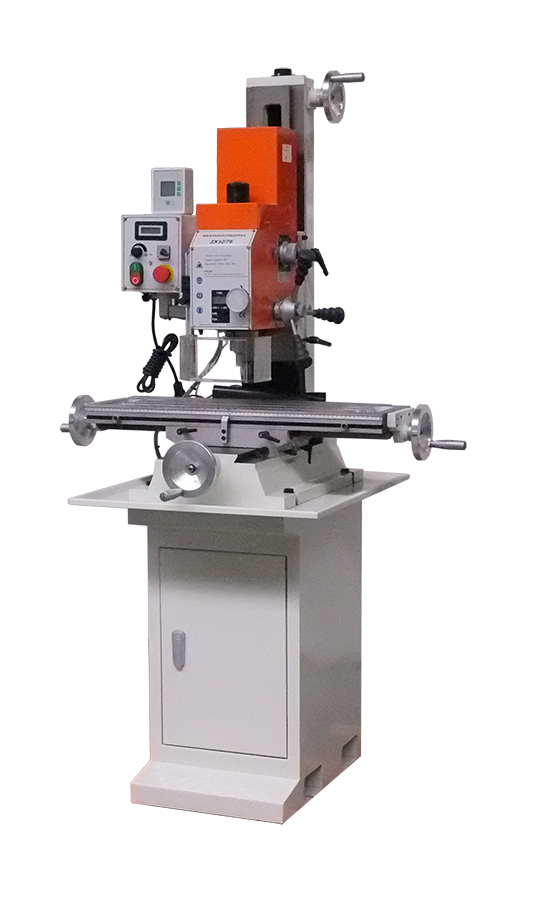

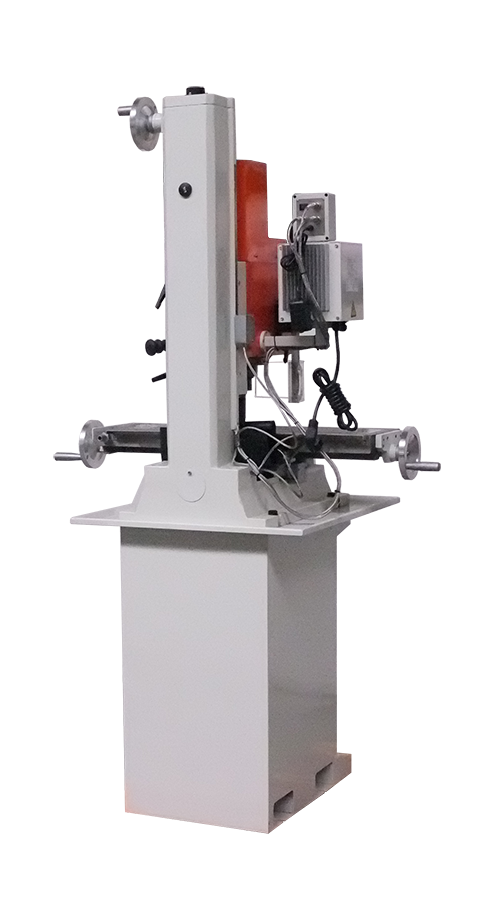

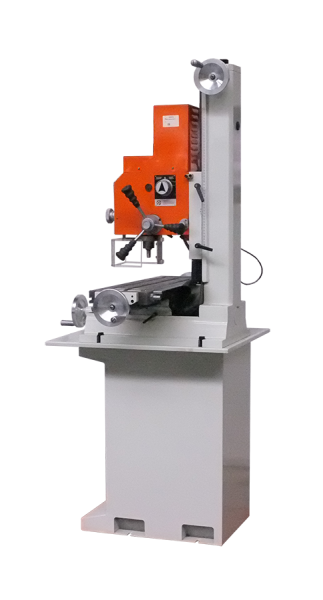

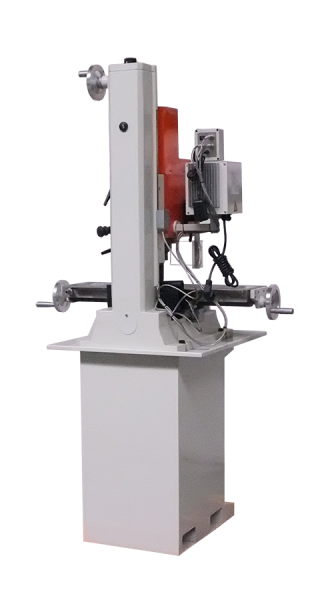

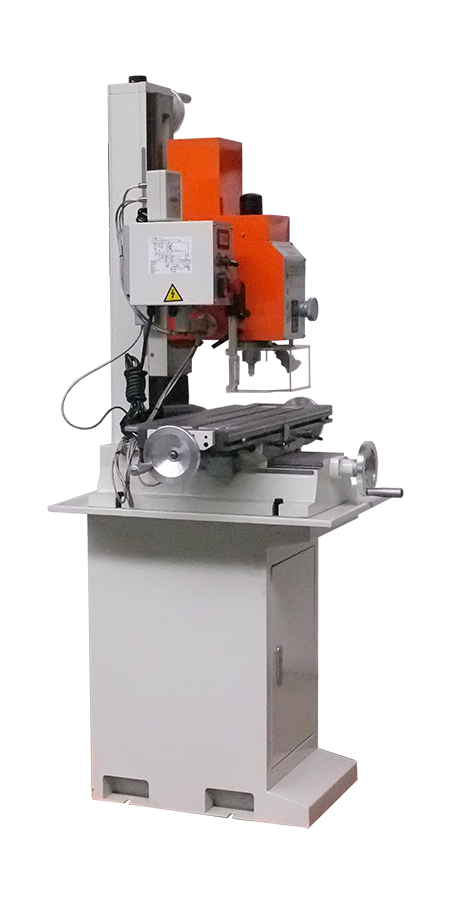

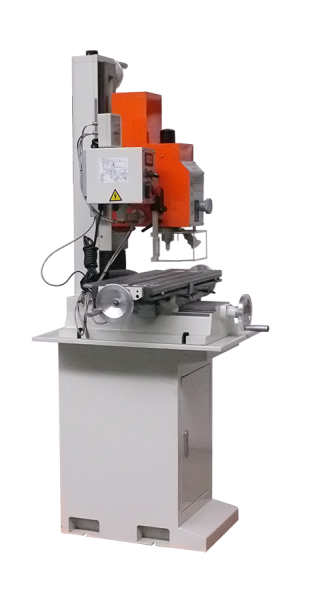

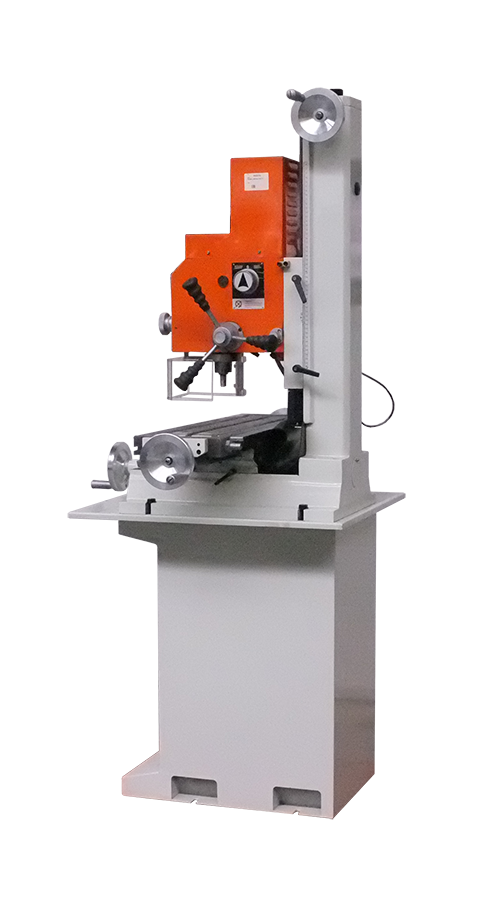

Drilling and milling machine MANA MOTO ZX32/76
10 810,00 zł net
No rating
12 months of warranty
The ZX-32/76 universal drilling and milling machine is a device that is ideal for small mechanical workshops and for educational purposes in technical schools. It can be used for unit and small lot production. Simple and solid structure guarantees long-lasting, maintenance-free operation without failure. The machine has the functions of drilling, milling and threading.
Quantity
Add to cart
The ZX-32/76 universal drilling and milling machine is a device that is ideal for small mechanical workshops and for educational purposes in technical schools. It can be used for unit and small lot production. Simple and solid structure guarantees long-lasting, maintenance-free operation without failure. The machine has the functions of drilling, milling and threading. The table feeds significantly facilitate the processing of planes, they provide a uniform, aesthetic surface after milling. All the most important operating elements of the device, such as levers and knobs, are within easy reach of the operator.
Machine Features:
- Milling
- Drilling
- Reaming
- Threading
Standard equipment:
- Spindle speed display
- Drilling depth display
- Digital readout for 3 axes: X, Y, Z - vertical feed of the headstock
- Pin
- Chuck
- Toolbox
Optional equipment (additionally payable):
- Machine vice
- Rotary table
- Mechanical table feeds (2 x electric motor)
| Technical data | Unit | Value |
|---|---|---|
| Drilling capacity in steel | [mm] | 32 |
| Face milling cutter diameter | [mm] | 70 |
| End mill diameter | [mm] | 30 |
| Table dimensions (length) | [mm] | 730 |
| Table dimensions (width) | [mm] | 210 |
| Longitudinal table travel | [mm] | 480 |
| Table cross travel | [mm] | 200 |
| Travels (X, Y, Z) | [mm] | 350 |
| T-slot width | [mm] | 14 |
| Spindle taper | [-] | MT3 |
| Spindle extension | [mm] | 70 |
| Spindle rotation | [rpm/min] | 50 - 2900 |
| Number of spindle speed ranges | [-] | 2 |
| Rotate the head left and right | [°] | +/-90 |
| Main engine power | [kW] | 1,1 |
| Single-phase power supply | [Hz/kW] | 230 |
| Dimensions | [mm] | 700x1030x1030 |
| Weight | [kg] | 115 |
