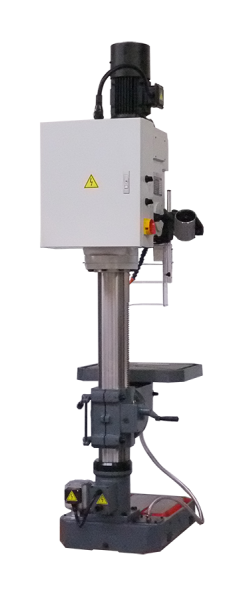

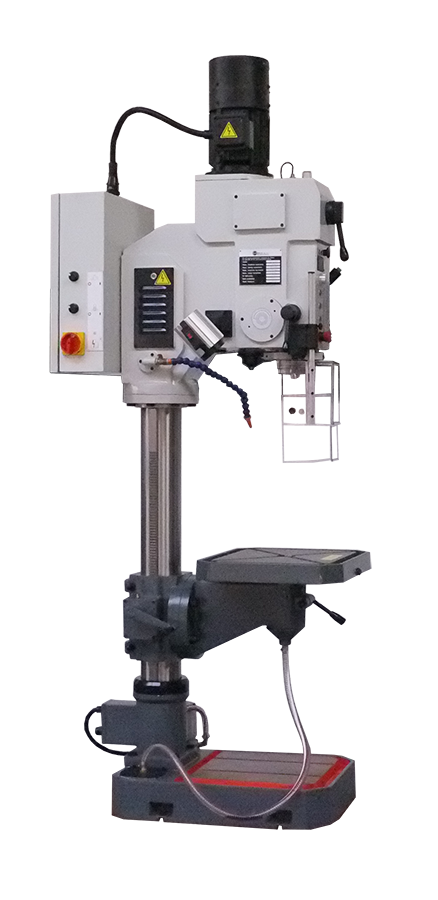

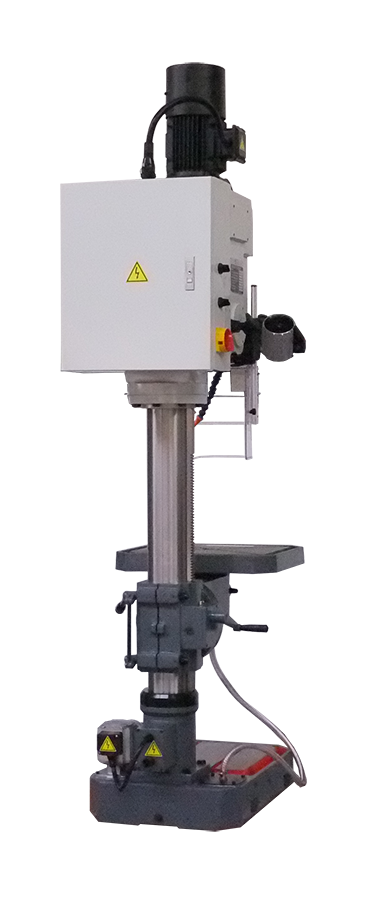

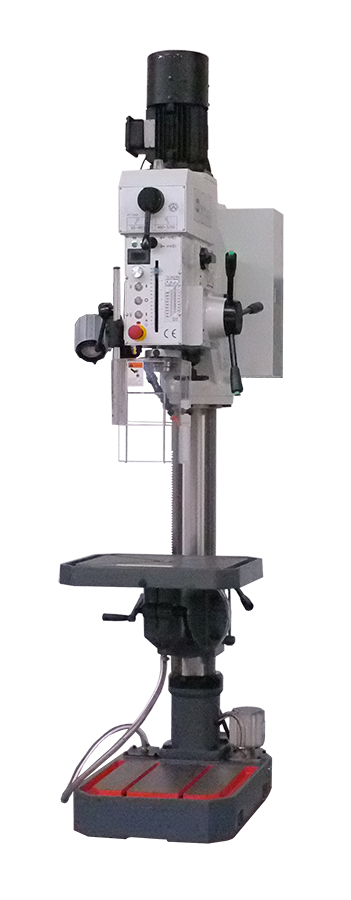

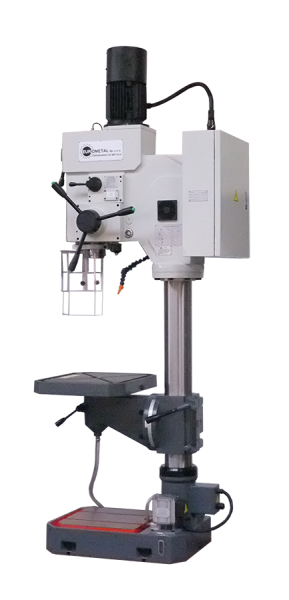

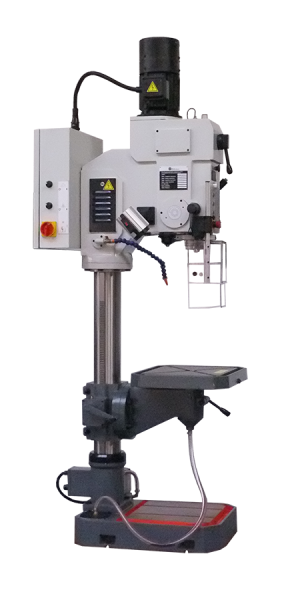

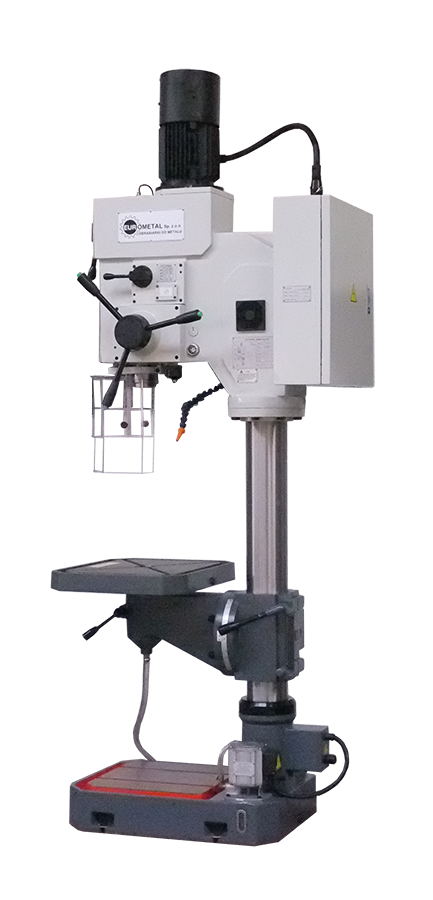

EUROMET W35 E Economic pillar drill

20 580,00 zł net
No rating
Add to favorites


Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

The EUROMET W35 E Economic pillar drill is used in production plants or workshops. It is characterized by compact mechanisms and ease of use. It is intended to perform the following operations: drilling, reaming, countersinking, rough reaming and threading.

Quantity
Add to cart

The EUROMET W35 E Economic pillar drill is used in production plants or workshops. It is characterized by compact mechanisms and ease of use. It is intended to perform the following operations:
  • drilling
  • reaming
  • drilling
  • rough reaming
  • threading in automatic mode
Main features of the device:
  • strong construction
  • table lowered and raised manually
  • automatic spindle feed
  • threading as standard
  • speed change by shift wheels
  • outdoor lighting
  • coolant pump

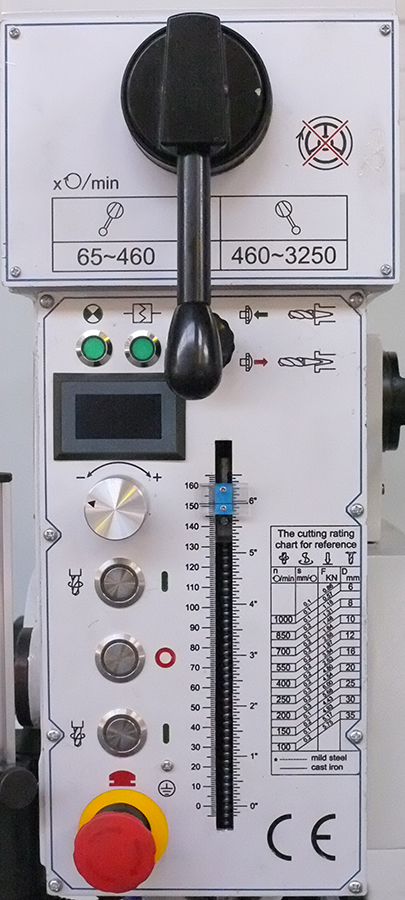

  • digital readout of spindle speed
  • stepless change of spindle speed
  • electric motor with stepless speed change powered by an inverter
The worktable support moves up and down and can rotate ±180º around the column. The worktable can rotate 360º on the vertical axis and tilt ±45º parallel to the support. This allows for wider use with simple operation.
A special application is drilling at an angle while maintaining high drilling parameters with the possibility of machining parts in a wide range of dimensions, made of various materials. The solidly made, durable spindle also allows you to perform milling work.

Standard equipment:
  • 45° tilting table
  • table raised/lowered manually
  • coolant pump
  • lighting
  • automatic feed
  • inverter
  • digital readout of spindle speed
  • threading
  • Chuck
  • base with T-slots
  • machine manual in English
  • CE declaration of conformity
Optional equipment (additionally paid):
  • automatic lubrication system
  • cross table
  • laser drilling point indicator

Technical data Unit Value
Drilling diameter [mm] 35
Threading [-] M22
Distance between the spindle axis and the column [mm] 320
Distance between the end of the spindle and the worktable [mm] 625
Distance between the end of the spindle and the base [mm] 1180
Spindle stroke [mm] 160
Working table travel [mm] 585
Angular deflection of the working table [°] +/- 45
Spindle taper [-] Morse (No. 4)
Spindle speed range [rpm/min] 65-3250
Number of spindle feeds [-] 3
Spindle feed stroke [mm/rpm] 0,1; 0,2; 0,3
Column diameter [mm] 120
The dimension of the working surface of the table [mm] 500x420
The dimension of the working surface of the base [mm] 400x360
T-slot for base and table [mm] 2-T14, 2-T12
Cooling circuit electric pump (three-phase motor) [l/min] 20
Coolant pump motor power [kW] 0,18
Spindle motor power [kW] 1,5
Weight [kg] 550
Dimensions (L × W × H) [mm] 855x510x2160
