3 - 4 roller sheet metal rolling machines

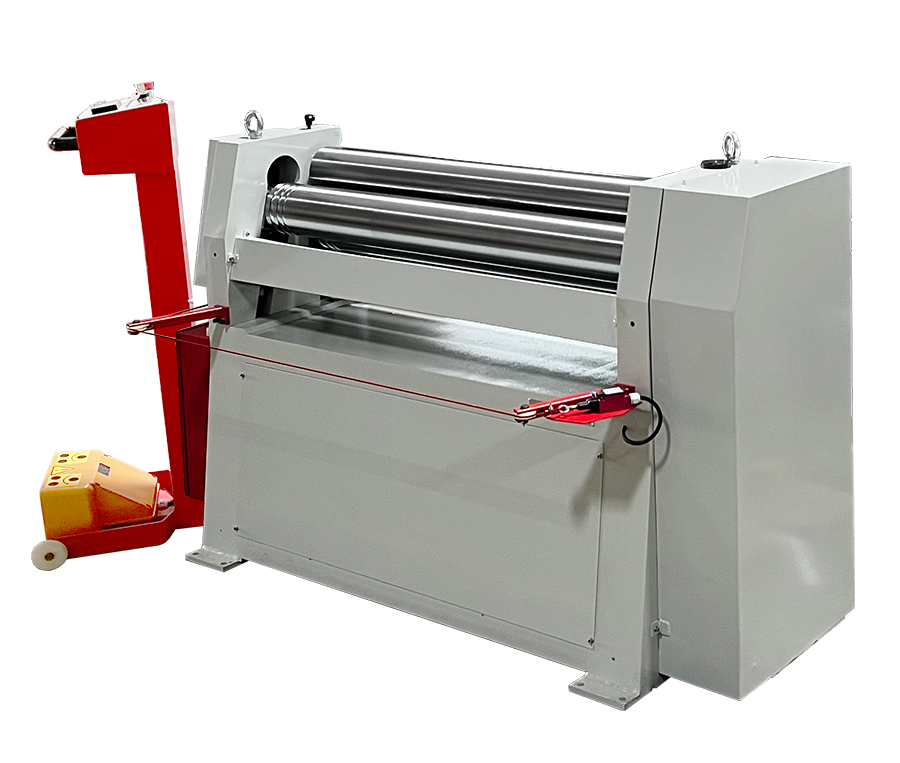

ESR 1300 x 6.5 Sheet Roller

25 900,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

ESR 1300 x 6.5 sheet roller is suitable for the production of aluminum parts, production of ventilation ducts, tanks and various types of covers.

Features of the machine:
  • Mechanized rear roll for up/down bending, DRO control panel and initial clamp design.
  • Pre-bend pressure rollers
  • Motorized up and down rear bending roller allows quick and easy pre-bending
  • Digital readout of rear bending roller position

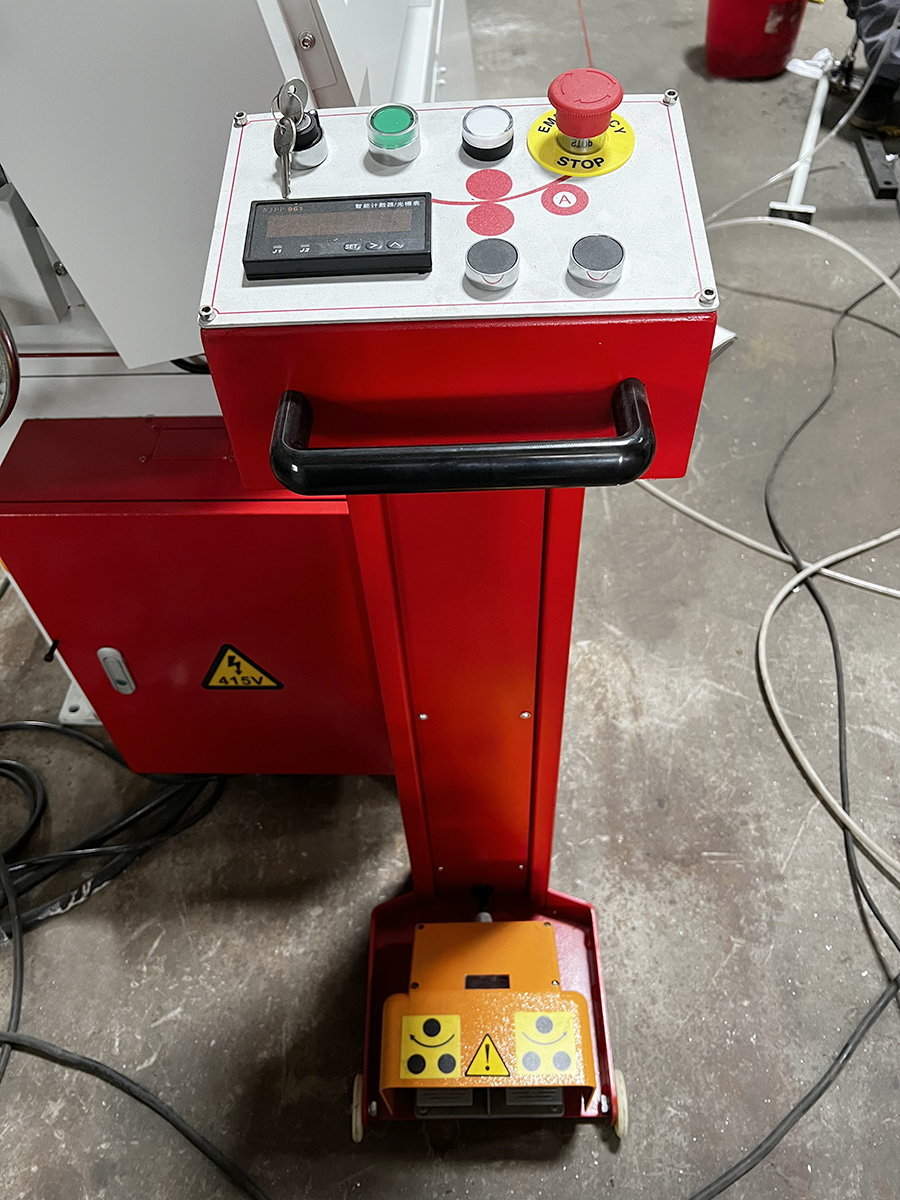

  • Mobile foot pedal control with digital readout
  • Two rollers are driven by a reduction gear drive system
  • Hinged top roller allows for cone or cylinder removal
  • Safety wire lock system with emergency shut-off
  • Rollers include wire grooves
  • Includes tapered bending guide roller
  • Mild steel capacity is rated for 250 MPA hot rolled material

Standard equipment:

  • CE certificate
  • User manual

Technical data Unit Value
The length of the rolls [mm] 1300
The diameter of the top and bottom rollers [mm] 150
The diameter of the bending roll [mm] 150
Minimum rolling diameter [mm] 225
Engine power [kW] 2,2
Voltage [V] 400
Number of rolls [pcs] 3
Dimensions (LxWxH) [mm] 2300 x 800 x 1340
Weight [kg] 1320
