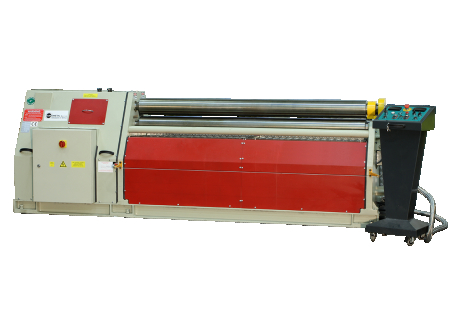

EUROMET WBH-M 15-150 4-roll winding machine
Priced individually
No rating
12 months of warranty
Contact with a trader:
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252
Tomasz Kierzkowski
E-mail: tomasz.kierzkowski@eurometal.com.pl
Telefon: 603505252
Zwijarka 4 rolkowa EUROMET WBH-M 15-150 nadaje się do precyzyjnego zwijania blach stalowych i nierdzewnych. Na zwijarce wykonywać można zarówno pełne zwinięcia jak i łuki. Dzięki odpowiedniemu ustawieniu rolek podginających, możliwe jest też zwijanie stożków. Wszelkie napędy i dosuwy rolek realizowane są hydraulicznie – praca na urządzeniu jest zatem łatwa i przyjemna.
The EUROMET WBH-M 15-150 4-roll rolling machine is suitable for precise rolling of steel and stainless steel sheets. Both full curls and curves can be made on the coiler. Thanks to the appropriate setting of the bending rollers, it is also possible to roll the cones. All drives and roll feeds are performed hydraulically - working on the device is therefore easy and pleasant.
Machine winding capabilities
Standard Standard Machine with NC Machine with CNC
Standard equipment:
- Induction hardened rollers
- The lower roller and side rollers move using a hydraulic system
- Overload protection
- Upper roller driven by a hydraulic motor and planetary gear (only upper roller driven)
- Portable control panel
- Digital readouts 3 pcs
- Hydraulic release of the upper roller for easy removal of the workpiece
- Central lubrication system
- Device for making cones
- Two working speeds
- CE Declaration of Conformity
- User manual in English
Optional equipment (for an additional fee):
- NC or CNC control

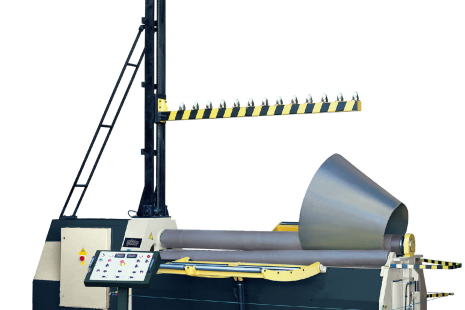

- Central steady for making details with large diameters
- Hydraulic side supports
- Polished rollers for special tasks
- Smoothly adjustable winding speed
| Technical data | Unit | Value |
|---|---|---|
| The length of the rolls | [mm] | 1550 |
| Engine power | [kW] | 4 |
| Rolling speed | [m/min] | 1,5-6 |
| Number of rolls | [pcs] | 4 |
| Sheet thickness for coiling diameter 5x the upper roll diameter (without pre-bend) | [mm] | 6 |
| Sheet thickness for coiling diameter 1.5 x upper roll diameter (without pre-bend) | [mm] | 4 |
| Sheet thickness for coiling diameter 5x upper roll diameter (initial bend) | [mm] | 4 |
| Sheet thickness for coiling diameter 1.5 x upper roll diameter (pre-bend) | [mm] | 3 |
| Center roll diameter | [mm] | 150 |
| The diameter of the side rolls | [mm] | 130 |
| Dimensions (LxWxH) | [mm] | 3600x860x1150 |
| Weight | [kg] | 2250 |
