Chamfering tube machines

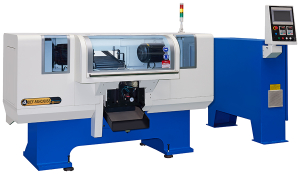

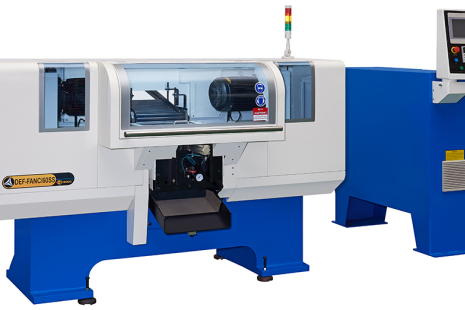

SOCO DEF-FANC/90SS Chamfering machine

Priced individually
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

The DEF series is ideal for beveling short tubes from 25mm to 350mm. With the optional infeed magazine, the BTM offers a fully automatic process for loading, feeding and chamfering both pipe ends and/or internal + external chamfering and material face. It can also be used for external chamfering of solid bars.

The DEF series is ideal for beveling short tubes from 25mm to 350mm. With the optional infeed magazine, the BTM offers a fully automatic process for loading, feeding and chamfering both pipe ends and/or internal + external chamfering and material face. It can also be used for external chamfering of solid bars.

DEF series machine features:
AUTOMATION
  • Fully automatic chamfering system with 2 types of loading magazine
    - Extendable magazine (standard)
    - BTM - Bundle loading magazine (*optional)
  • External and internal face bevelling in one process for both pipe ends, with optional radial chamfering

OPERATING RANGE:
  • Diameter range from 16mm ~ 90mm
  • Suitable for pipes and solid bars and materials such as carbon steel, stainless steel, copper and aluminum (with inverter)
  • Possibility of chamfering the inner and outer edge up to a depth of 15 mm
  • Suitable for in/out chamfering, face chamfering, centering, deep chamfering and radial chamfering
PERFORMANCE:
  • 3 second cycle times
  • Patented workpiece feeding system for a smooth process
  • Rigid tool socket is designed for durability with easy-to-attach tool bits
  • Two step chamfering process:
    - First - Fast processing (time saving)
    - Second - Infinitely adjustable chamfering speed for smooth surface finish
  • Each workpiece length tolerance is +/- 0.1mm

Technical data Unit Value
Standardowe użycie głowicy [-] bity z węglika wolframu
Zakres średnic roboczych (stal miękka) - (* rury wykorzystujące standardową głowicę i gniazda narzędziowe) [mm] 16 - 90
Długość rury roboczej [mm] 25 - 350
Maksymalna grubość ścianki [mm] 4
Tolerancja długości fazowania [+/-] 0,10 mm
Kąt fazowania standardowy [°] 30 lub 45 (opcjonalne kąty na żądanie)
Silnik wrzeciona (dla każdej głowicy) [kW] 5,5 kw x 6p
Obroty wrzeciona [rpm/min] 912 obr / min (60 hz) 760 obr / min (50 hz)
Podawanie osi głowicy tnącej [kW] 1,3 kw (silnik serwo)
Dimensions [mm] 2280x1640x1590
Weight [kg] 1860
