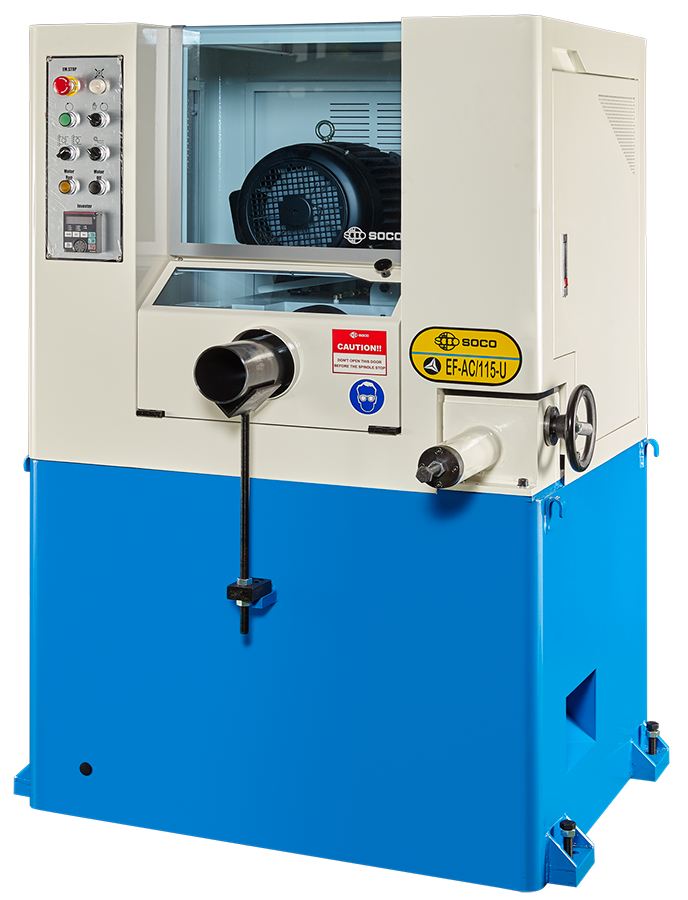

SOCO EF-AC/115 chamfering machine

61 400,00 zł net
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Piotr Tymiński
E-mail: piotr.tyminski@eurometal.com.pl
Telefon: 603505252

The SOCO EF-AC/115 chamfering machine is a pneumatic pipe chamfering machine, equipped with a universal clamping system, enabling the clamping of a wide range of different diameters of pipes and solid bars. It is also equipped with a 2-stage feed speed system with adjustable stroke to create a smooth and clean surface.

The SOCO EF-AC/115 chamfering machine is a pneumatic pipe chamfering machine, equipped with a universal clamping system, enabling the clamping of a wide range of different diameters of pipes and solid bars. It is also equipped with a 2-stage feed speed system with adjustable stroke to create a smooth and clean surface.
It is able to simultaneously evenly chamfer the 3 planes of the tube (inside, outside and front), as well as to chamfer the outer edge of the solid rod. Standard chamfer angles for inner and outer edges are 30 and 45 degrees, but different chamfer angles can be made upon request.
Dimensions (mild steel)
  • For solid bars 15 mm - 60 mm (diameter, only bevel edge)
  • For 16mm - 115mm round tubes (outer diameter)

Standard equipment:
  • A set of universal clamping jaws for two diameter ranges: Ø40mm-Ø115 and Ø12-Ø40mm
  • One head equipped with cutting tools with an angle of 30 or 45 degrees
  • Tool box
  • Inverter
  • CE compliant safety guards
  • User manual in English
Optional equipment (additionally payable):
  • Other dimensions of the clamping jaws

Technical data Unit Value
Air pressure [kg/cm^2] 6 ~ 9
Pipe (for a wall thickness of 4.5 mm) [mm] 12 - 115
Roller [mm] 15 - 60
Spindle motor [kW] 8,5
Dimensions [mm] 1100x890x1350
Weight [kg] 450
