CNC FORTWORTH HB110B boring machine
Priced individually
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

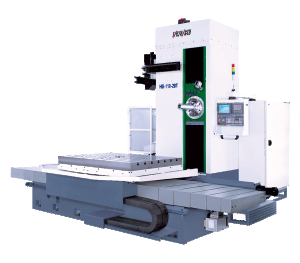

The FORTWORTH HB110B CNC boring machine is a device for processing large-size elements, enabling drilling, milling, boring, boring, alignment of holes in the bodies of all machines and other structures. The HB series boring machines are advanced devices which, thanks to the capacious tool magazines, enable comprehensive processing of the workpiece from the cast-blank to the finished form. CNC control for 5 axes guarantees precise, repeatable machining
The FORTWORTH HB110B CNC boring machine is a device for processing large-size elements, enabling drilling, milling, boring, boring, alignment of holes in the bodies of all machines and other structures. The HB series boring machines are advanced devices which, thanks to the capacious tool magazines, enable comprehensive processing of the workpiece from the cast-blank to the finished form. CNC control for 5 axes guarantees precise, repeatable machining.
Rotary table: precise table driven by servo motor, position read from the encoder, rotation pitch at the input 0.001˚, full 360˚ axis control. Mechanical lock when the table is set at the angle of 0 ˚ -90 ˚ -180 ˚ -270 ˚. In the entire range of table rotation, after its setting, a hydraulic clamp. The mass of the processed detail is 5000 kg.
Body: column, turntable bed 2 sliding guides, main bed 4 sliding guides, uniform castings. For HB-110-20T, the main bed has 3 guides, the bed under the column has 3 guides, the Y axis is realized by moving the column with the headstock. Uniform castings. Readout of the position for the X, Y, Z axes from the rulers.
Spindle: 110mm, ISO50, W 550mm axis, dual roller bearings, high precision NN. 2-speed automatic transmission. Spindle rotation 2500 rpm, torque 135 kg-m. Readout of the position for the W axis from a ruler.
ATC tool magazine for up to 60 tools.
Control: Fanuc FS-0i-MF or higher.
Control: Fanuc FS-0i-MF or higher.
Standard equipment:
- oil cooled spindle
- automatic central lubrication system
- programmable cooling system
- programmable blow-off
- air-conditioned electrical cabinet
- screw chip conveyor
- automatic shutdown M30
- MPG knob
- signal lamp
- RS-232 port
- toolbox
- external chip conveyor
Optional equipment (additionally payable):
- worktable covers
- cooling through the spindle
- spindle support sleeve
| Technical data | Unit | Value |
|---|---|---|
| Worktable dimensions (length) | [mm] | 1000 |
| Worktable dimensions (width) | [mm] | 1000 |
| T-slots | [mm] | 22 x 9 x100 |
| Work table load | [kg] | 3000 |
| B axis accelerated feed | [rpm/min] | 4 |
| X axis travel | [mm] | 2000 |
| Y axis travel | [mm] | 1400 |
| Z axis travel | [mm] | 1150 |
| Distance from the spindle nose to the work table surface | [mm] | 175~1475 / 0~1400 |
| Spindle tip | [-] | BT50 |
| Spindle diameter | [mm] | 110 |
| Spindle speed | [rpm/min] | 5 - 2500 |
| Accelerated feed | [m/min] | dla osi: X,Y,Z,W: 15/12/15/6 |
| Working feeds | [mm/min] | dla osi: X,Y,Z: 1-4000 W: 1-6000 |
| Tool magazine capacity | [pcs] | 60 |
| Tool length | [mm] | 400 |
| Tool weight | [kg] | 25 |
| Tool diameter | [mm] | ø125/ø250 |
| Tool change time | [s] | 15 |
| Spindle motor power | [kW] | 22/26 |
| X / Y / Z / B axis servo power | [kW] | 7/6/7/4/7 |
| Central lubrication pump power | [W] | 150 |
| Hydraulic pump power | [kW] | 3,7 |
| Spindle cooling pump power | [kW] | 1,18 |
| Coolant pump power | [kW] | 1,32 |
| Oil tank capacity | [l] | 250 |
| Steering | [-] | Fanuc 0i-MD |
| Dimensions | [mm] | 4905x5116x3605 |
| Weight | [kg] | 21000 |
