EUROMET WFA 110 B2 table type boring machine
647 745,00 zł net
No rating
12 months of warranty
Contact with a trader:
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333
Krzysztof Penkowski
E-mail: krzysztof.penkowski@eurometal.com.pl
Telefon: 603 400 333

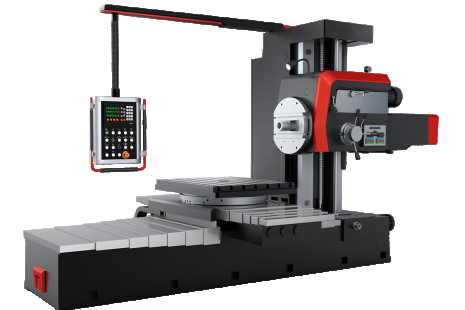

The EUROMET WFA 110 B2 table boring machine is based on a reliable and classic design. The machine is designed for processing large details: rough and finish boring. Perfect for internal boring, rolling and grooving thanks to the radial feed of the faceplate. The optical positioning device 4x90 ensures high machining accuracy when turning large elements. The precise axis display provides excellent positioning accuracy and linearity.
Quantity
Add to cart
The EUROMET WFA 110 B2 table boring machine is based on a reliable and classic design. The machine is designed for processing large details: rough and finish boring. Perfect for internal boring, rolling and grooving thanks to the radial feed of the faceplate. The optical positioning device 4x90 ensures high machining accuracy when turning large elements. The precise axis display provides excellent positioning accuracy and linearity.
Configuration:
- Rear Column - Optional
- 480mm face head - as standard
- Display of X / Y axis coefficients - Standard
- Z axis coefficient display - optional
- B axis coefficient display - optional
| Designation | Standard configuration | Value/Unit | Description |
| HT 140 | 1400 x 1600 / 8 tons / Hydraulic | 600mm | Monitor to the Axis-B |
| HT 160 | 1600 x 2500 / 8 tons / Hydraulic | 600mm | Monitor to the Axis-B |
| HT 200A | 2000 x 2500 / 20 tons / Mechanical | 1500mm | Monitor to the Axis-Z/B axis-Z 2000mm |
| HT 200A | 2500 x 2500 / 20 tons / Mechanical | 1500mm | Monitor to the Axis-Z/B axis-Z 2000mm |
| HT 200A | 2500 x 3000 / 20 tons / Mechanical | 1500mm | Monitor to the Axis-Z/B axis-Z 2000mm |
| HT 200A | 2000 x 3000 / 20 tons / Mechanical | 1500mm | Monitor to the Axis-B/Z axis-Z 2000mm |
| HT 200B | 2000 x 2500 / 20 tons / Hydraulic | 1500mm | Monitor to the Axis-Z |
| HT 200B | 2000 x 2500 / 20 tons / Hydraulic | 1500mm | Monitor to the Axis-B |
Standard equipment:
- Digital X / Y axis reading system
- Work light
- Faceplate
- User manual in English
- CE declaration of conformity
Optional equipment (additionally payable):
- Gears
- Schneider digital reading system with CE declaration of conformity
- Angle table
- Rotary table
- Horizontal work table
- Vertical work table
- Threading tool holder
- Tool holder for boring
- Milling tool holder
- Universal boring head
- Universal milling head
- Reduction sleeves
- Cylindrical shank
- Tapping head
- Boring bar
- Boring tools
| Technical data | Unit | Value |
|---|---|---|
| Spindle diameter | [mm] | 110 |
| Torque | [Nm] | 1225 |
| Spindle pressure | [N] | 12250 |
| Number of spindle speeds | [-] | 22 |
| Spindle speed range | [rpm/min] | 8 - 1000 |
| Face head diameter | [Nm] | 1960 |
| Face head diameter | [mm] | 600 |
| Frontal speed range | [rpm/min] | 4-200 |
| Table working surface (length) | [mm] | 1100 |
| Table working surface (width) | [mm] | 960 |
| Table load | [kg] | 5000 |
| T-slot | [mm] | 22 |
| Number of T-slots | [-] | 7 |
| Feed in the X axis | [mm] | 1250 |
| Feed in the Y axis | [mm] | 900 |
| Feed in the Z axis | [mm] | 1400 |
| Spindle stroke in the W axis | [mm] | 600 |
| Spindle stroke in the U axis | [mm] | 180 |
| Rotary table in the B axis | [°] | 360 |
| Table speed | [mm/min] | 2500 |
| Axis speed range | [mm/rpm] | 0,04-6/0,01-1,88 |
| System reading accuracy (X, Y, Z) | [mm] | 0,005 |
| System reading accuracy (B) | [mm] | 0,001 |
| Main engine power | [kW] | 7,5 |
| Dimensions | [mm] | 4910x2870x2750 |
| Weight | [kg] | 13000 |
