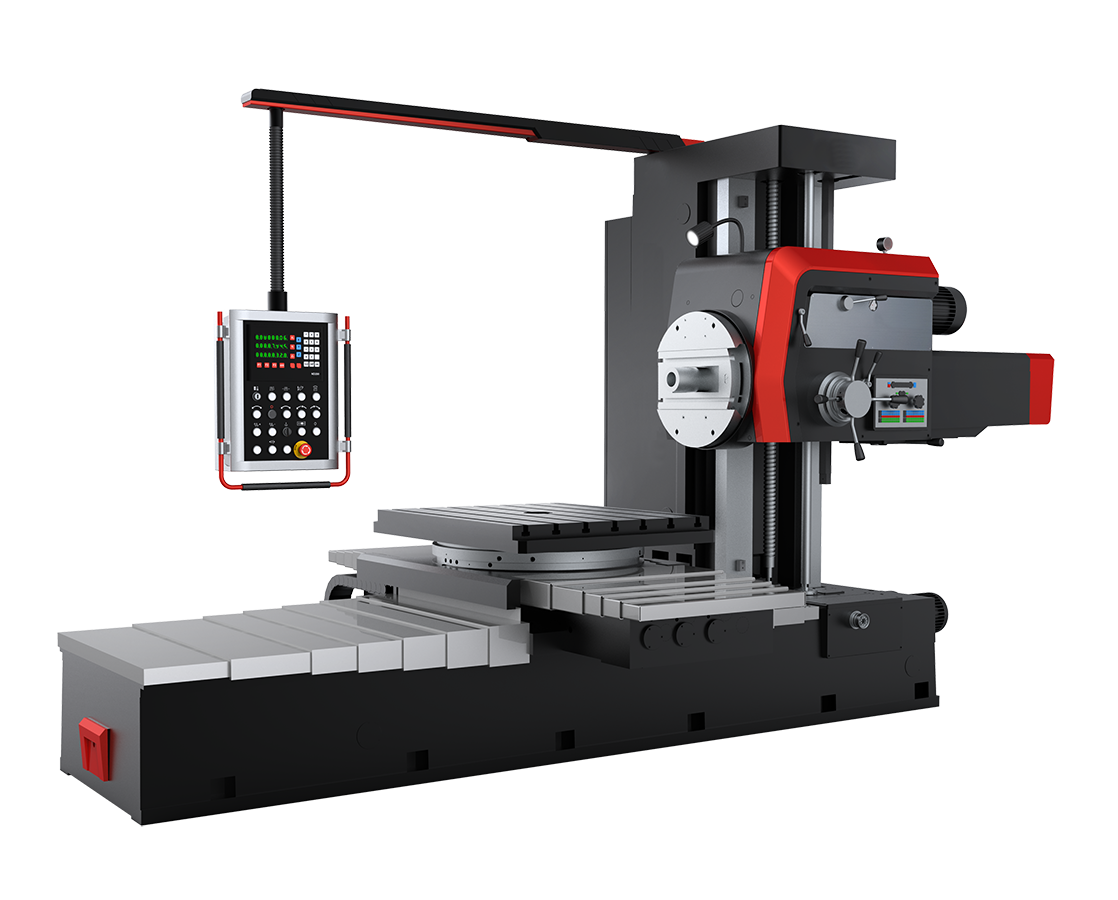

EUROMET WFA 110 C3 table type boring machine

Priced individually
No rating
Add to favorites

12 months of warranty

Contact with a trader:
Magda Kyrcz
E-mail: magda.kyrcz@eurometal.com.pl
Telefon: 609504408

EUROMET WFA 110 C3 table type boring machine is based on a reliable and classic design. The machine is designed for processing large details: rough and finish boring. Perfect for internal boring, rolling and grooving thanks to the radial feed of the faceplate. The optical positioning device 4x90 ensures high machining accuracy when turning large elements. The precise axis display provides excellent positioning accuracy and linearity.

EUROMET WFA 110 C3 table type boring machine is based on a reliable and classic design. The machine is designed for processing large details: rough and finish boring. Perfect for internal boring, rolling and grooving thanks to the radial feed of the faceplate. The optical positioning device 4x90 ensures high machining accuracy when turning large elements. The precise axis display provides excellent positioning accuracy and linearity.

Configuration:
  • Rear Column - Optional
  • 480mm face head - as standard
  • Display of X / Y axis coefficients - Standard
  • Z axis coefficient display - optional
  • B axis coefficient display - optional
Technical parameters of the rotary table:
Designation Standard configuration Value / Unit Description
HT 140 1400 x 1600 / 8 tons / Hydraulic 600mm Monitor to Axis-B
HT 160 1600 x 2500 / 8 tons / Hydraulic 600mm Monitor to Axis-B
HT 200A 2000 x 2500 / 20 tons / Mechanical 1500mm Monitor for Z-axis / B axis-Z 2000mm
HT 200A 2500 x 2500 / 20 tons / Mechanical 1500mm Monitor for Z-axis / B axis-Z 2000mm
HT 200A 2500 x 3000 / 20 tons / Mechanical 1500mm Monitor for Z-axis / B axis-Z 2000mm
HT 200A 2000 x 3000 / 20 tons / Mechanical 1500mm Monitor for B-axis / Z-axis 2000mm
HT 200B 2000 x 2500 / 20 tons / Hydraulic 1500mm Monitor to Axis-Z
HT 200B 2000 x 2500 / 20 tons / Hydraulic 1500mm Monitor to Axis-B

Standard equipment:
  • Digital X / Y axis reading system
  • Work light
  • Faceplate
  • User manual in English
  • CE declaration of conformity

Optional equipment (additionally payable):
  • Gears
  • Schneider digital reading system with CE declaration of conformity
  • Angle table
  • Rotary table
  • Horizontal work table
  • Vertical work table
  • Tapping tool holder
  • Tool holder for boring
  • Milling tool holder
  • Universal boring head
  • Universal milling head
  • Reduction sleeves
  • Cylindrical shank
  • Tapping head
  • Boring bar
  • Boring tools

Technical data Unit Value
Spindle diameter [mm] 110
Torque [Nm] 1225
Spindle pressure [N] 12250
Number of spindle speeds [-] 22
Spindle speed range [rpm/min] 8 - 1000
Face head diameter [Nm] 1960
Face head diameter [mm] 630
Frontal speed range [rpm/min] 4-200
Table working surface (length) [mm] 1250
Table working surface (width) [mm] 1100
Table load [kg] 3000
T-slot [mm] 22
Number of T-slots [-] 7
Feed in the X axis [mm] 1600
Feed in the Y axis [mm] 1200
Feed in the Z axis [mm] 1400
Spindle stroke in the W axis [mm] 600
Spindle stroke in the U axis [mm] 180
Rotary table in the B axis [°] 360
Table speed [mm/min] 2500
Axis speed range [mm/rpm] 0,32-2500
System reading accuracy (X, Y, Z) [mm] 0,005
System reading accuracy (B) [mm] 0,001
Main engine power [kW] 15
Dimensions [mm] 5120x3380x3100
Weight [kg] 18000
